2016 Yamaha SRX120 (SRX120GL) Frame 2 Diagram

← All diagrams

Find the part on the Frame 2 diagram for your 2016 Yamaha SRX120 (SRX120GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

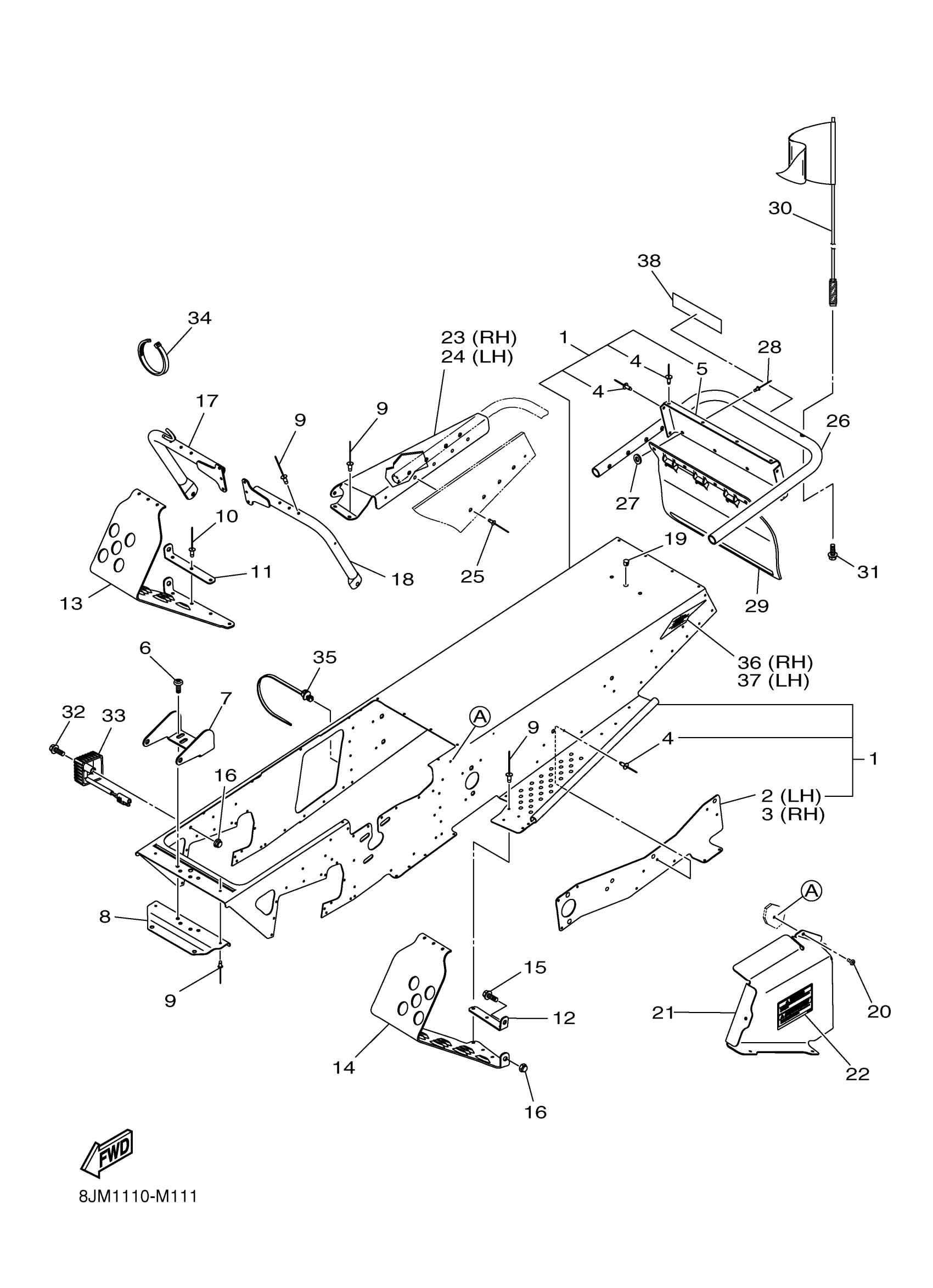

2016 Yamaha SRX120 (SRX120GL) Frame 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8JM-F1910-00-00

1
Out of stock

2

. BRACKET, MAIN TRACK 1

8JM-F1943-00-00

1
Out of stock

3

. BRACKET, MAIN TRACK 2

8JM-F1953-00-00

1
Out of stock

4

. RIVET, ROUND 1

8JM-RA504-00-00

1
Out of stock

5

.. REINEFORCEMENT, FRAME REAR 1

8JM-F1923-10-00

1
Out of stock

6

SCREW, TAPPING 1/4-20X0.5

8JM-RA202-00-00

1
Out of stock

7

BRACKET, FRONT HOOD

8JM-F1979-00-00

1
Out of stock

8

FRAME, FRONT END

8JM-F191D-00-00

1
Out of stock

9

RIVET, 5

8JP-RA514-00-00

—
Out of stock

10

RIVET, 6

8JP-RA515-00-00

1
Out of stock

11

BRKT,SUPPORT-FOOTREST-R/H-PTD

8JM-F1931-00-00

—
Out of stock

12

BRKT,SUPPORT-FOOTREST-L/H-PTD

8JM-F1921-00-00

—
Out of stock

13

FOOTREST - RH

8JM-F7421-00-00

—
Out of stock

14

FOOTREST 1

8JM-F7411-00-00

1
Out of stock

15

SCREW,CAP-HFH 1/4-20X0.750 Z&Y

8JM-RA106-00-00

—
Out of stock

16

NUT, FLG. LOCKING

8JP-RA357-00-00

—
Out of stock

17

SUPPORT,FOOTREST-PTD BLK-RH

8JM-F192E-00-00

—
Out of stock

18

SUPPORT, FOOTREST-PTD BLK-LH

8JM-F1929-00-00

—
Out of stock

19

PLUG, HOLE-3/8 DIA-BLK

8JM-RA601-00-00

—
Out of stock

20

SCREW,SELF TAP-HWH10X1/2 AB ZY

8JM-RA203-00-00

—
Out of stock

21

COVER,SPROCKET-DRIVEN-PTD BLK

8JM-E3327-00-00

—
Out of stock

22

LABEL, WARNING 2

8JM-K7762-00-00

1
Out of stock

23

BUMPER, REAR 4

8JM-K7544-00-00

1
Out of stock

24

BUMPER, REAR 3

8JM-K7543-00-00

1
Out of stock

25

RIVET, 11

8JP-RA520-00-00

—
Out of stock

26

BUMPER, REAR 1

8JM-K7541-00-00

1
Out of stock

27

WASHER,FLAT .194X.50X.048

8JM-RA411-00-00

—
Out of stock

28

RIVET, BLIND-DH AA66 BLK

8JM-RA508-00-00

—
Out of stock

29

FLAP

8JM-K7595-00-00

1
Out of stock

30

FLAG, SAFETY-ASSY

8JM-RAY04-01-00

—
Out of stock

31

SCREW,CAP-HFH 5/16-18X1.25 G5

8JM-RA104-00-00

—
Out of stock

32

BOLT, FLANGE 1/4-2

8JM-RA138-00-00

—
Out of stock

33

VOLTAGE REGULATOR ASSY

8JM-H1910-00-00

1
Out of stock

34

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

—
Out of stock

35

CABLE TIE,PUSH MOUNT-XMAS CLIP

8JM-RAB02-00-00

—
Out of stock

36

BASE, REFLECTOR 3

8JM-H511F-00-00

1
Out of stock

37

BASE, REFLECTOR 2

8JM-H511E-00-00

1
Out of stock

38

EMBLEM, YAMAHA

8JM-F153A-00-00

1
Out of stock
