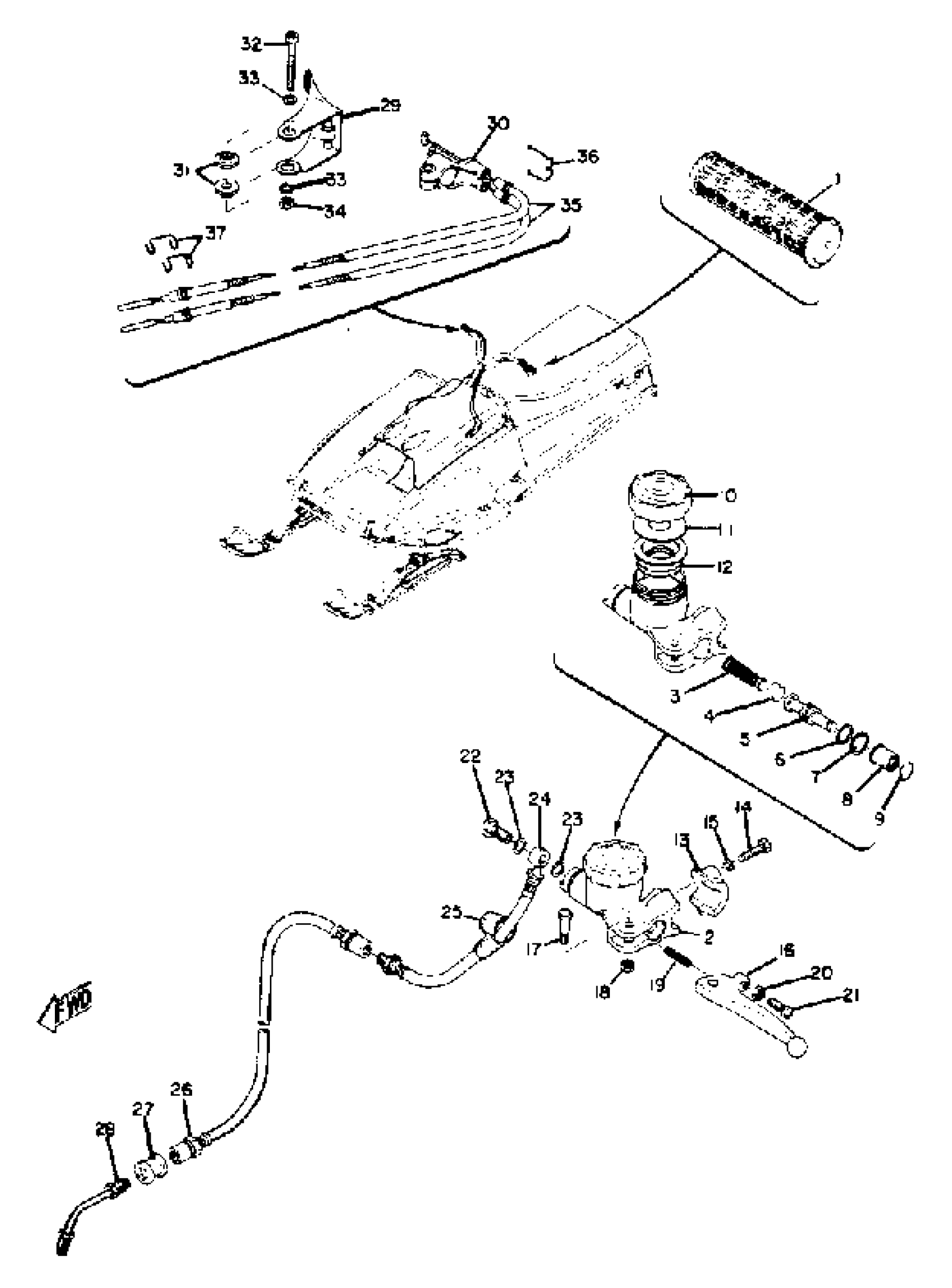

Find the part on the Master Cylinder - Wire diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR643B Master Cylinder - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

MSTR CYLINDER ASSEMBLY

(856-25850-00-00)

1
Out of stock

3

. SPRING, CONICAL

341-25863-00-00

1
Out of stock

4

. CUP, CYLINDER 1

341-25858-00-00

1
Out of stock

5

. PISTON SET, CALIPER

341-25809-00-00

1
Out of stock

6

. SPACER

341-25857-00-00

1
Out of stock

7

. CIRCLIP

341-25866-00-00

1
Out of stock

8

. BOOT, MASTER CYLINDER

341-25868-00-00

1
Out of stock

9

. STOPPER, BOOT

341-25869-00-00

1
Out of stock

10

. CAP, RESERVOIR

341-25852-00-00

1
Out of stock

11

BUSH, DIAPHRAGM (341-25855-00)

341-25855-30-00

1
Out of stock

12

. DIAPHRAGM RESERVOR

341-25854-00-00

1
Out of stock

13

BRACKET, MASTER

1J3-25867-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

LEVER L

(856-83912-00-00)

1
Out of stock

17

BOLT (4L0)

90109-06577-00

—

$5.38

In stock

18

NUT(650)

95380-06700-00

—

$6.17

In stock

19

—

$6.17

In stock

20

NUT HEXAGON 306839270000

90170-06010-00

—

$6.17

In stock

21

SCREW

90146-06005-00

1
Out of stock

22

BOLT, UNION(3GM)

90401-10159-00

—

$8.85

In stock

23

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

24

HOSE, BRAKE 1

306-25872-06-00

1
Out of stock

25

BOOT, MASTER CYLINDER

306-25862-00-00

—

$42.71

In stock

26

HOSE, BRAKE 2

(856-25873-00-00)

1
Out of stock

27

PROTC, BRAKE HOSE

306-25881-00-00

1
Out of stock

28

PIPE, BRAKE 3

(856-25883-00-00)

1
Out of stock

29

LEVER, THROTTLE (858-42138-00)

878-42138-00-00

1
Out of stock

30

HOLDER, LEVER 2

(857-82821-00-00)

1
Out of stock

31

C0LLAR

90387-062M9-00

—
Out of stock

32

SCREW, PAN HEAD (810-83925-00)

90157-06004-00

1
Out of stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

34

NUT(650)

95380-06700-00

—

$6.17

In stock

35

CABLE, THROTTLE 1

857-26311-00-00

1
Out of stock

36

CLIP

(90468-10035-00)

1
Out of stock

37

CLAMP

90465-10033-00

1
Out of stock
