1975 Yamaha SR643 SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

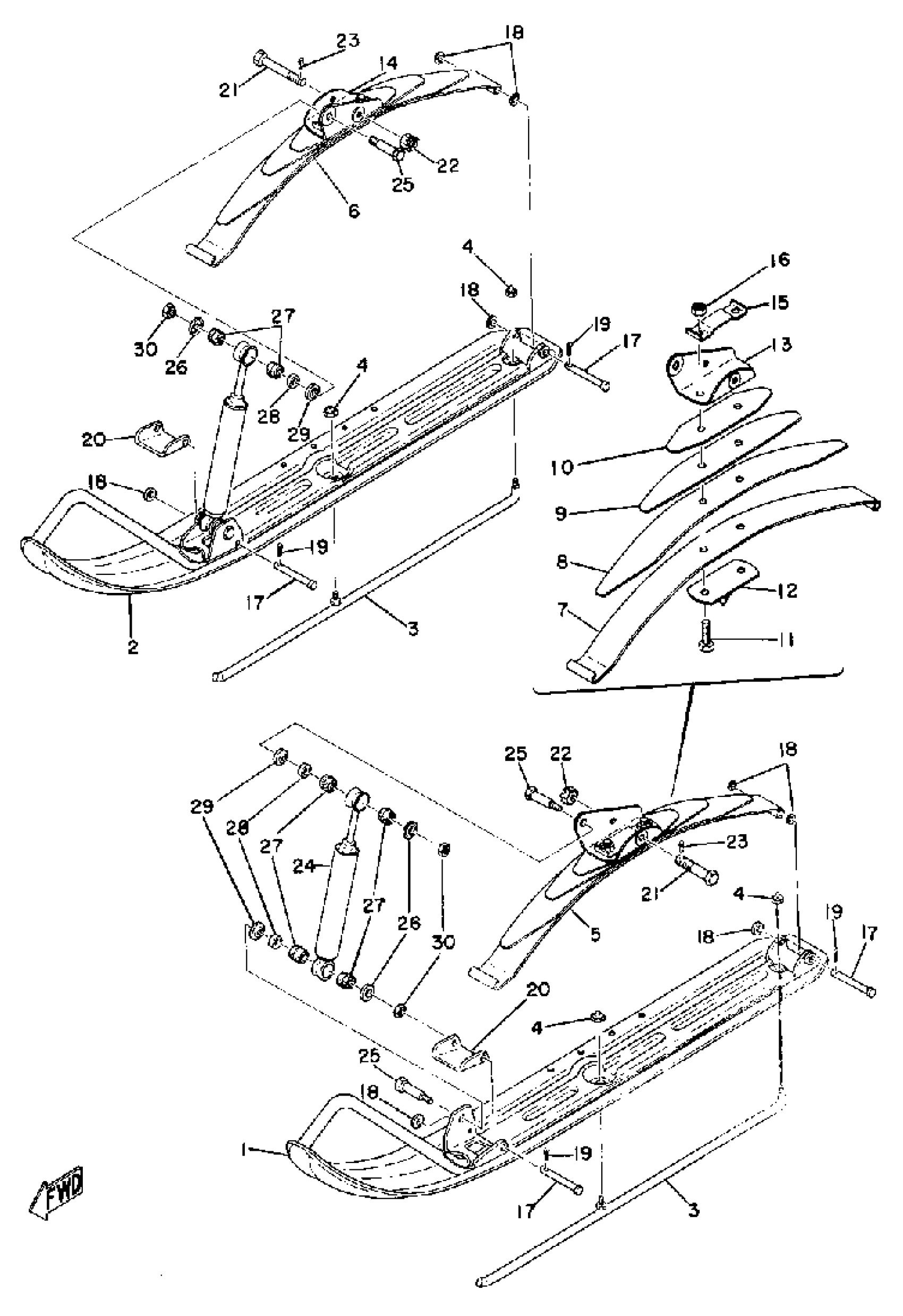

1975 Yamaha SR643 SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(829-23710-00-00)

1
Out of stock

2

SKI 2

(829-23720-00-00)

1
Out of stock

3

RUNNER 1

821-23731-01-00

1
Out of stock

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

5

COLUMN, STEERING

(836-23811-01-00)

1
Out of stock

6

SPRING ASSEMBLY 2

(836-23770-00-00)

1
Out of stock

7

LEAF 1

(810-23761-00-00)

1
Out of stock

8

LEAF 2

(810-23762-00-00)

1
Out of stock

9

LEAF 3

(810-23763-00-00)

1
Out of stock

10

LEAF 5

(810-23771-00-00)

1
Out of stock

11

. BOLT

90101-10060-00

1
Out of stock

12

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

13

SHOCK ABSORBER ASSEMBLY

(829-23350-00-00)

1
Out of stock

14

SADDLE 2

(829-23776-00-00)

1
Out of stock

15

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

16

NUT(6TD)

95337-10600-00

—

$6.98

In stock

17

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

18

WASHER, PLATE(49E)

90201-087H6-00

—

$1.62

In stock

19

PIN COTTER

91490-30025-00

—
Out of stock

20

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

21

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

22

NUT, SLOTTED

95306-10900-00

1
Out of stock

23

PIN, COTTER

91490-20025-00

—

$1.31

In stock

24

SHOCK ABSORBER ASSEMBLY

(836-23350-00-00)

1
Out of stock

25

BOLT

(90109-08014-00)

1
Out of stock

26

WASHER, SPEC''L SHAP

(90209-13012-00)

1
Out of stock

27

BUSH, SPEC''L RUBBER (829-23357-00)

90385-12004-00

1
Out of stock

28

COLLAR

(90387-12104-00)

1
Out of stock

29

WASHER, SPEC''L SHAP

(90209-09011-00)

1
Out of stock

30

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock
