1975 Yamaha SR643 Louver Diagram

← All diagrams

Find the part on the Louver diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

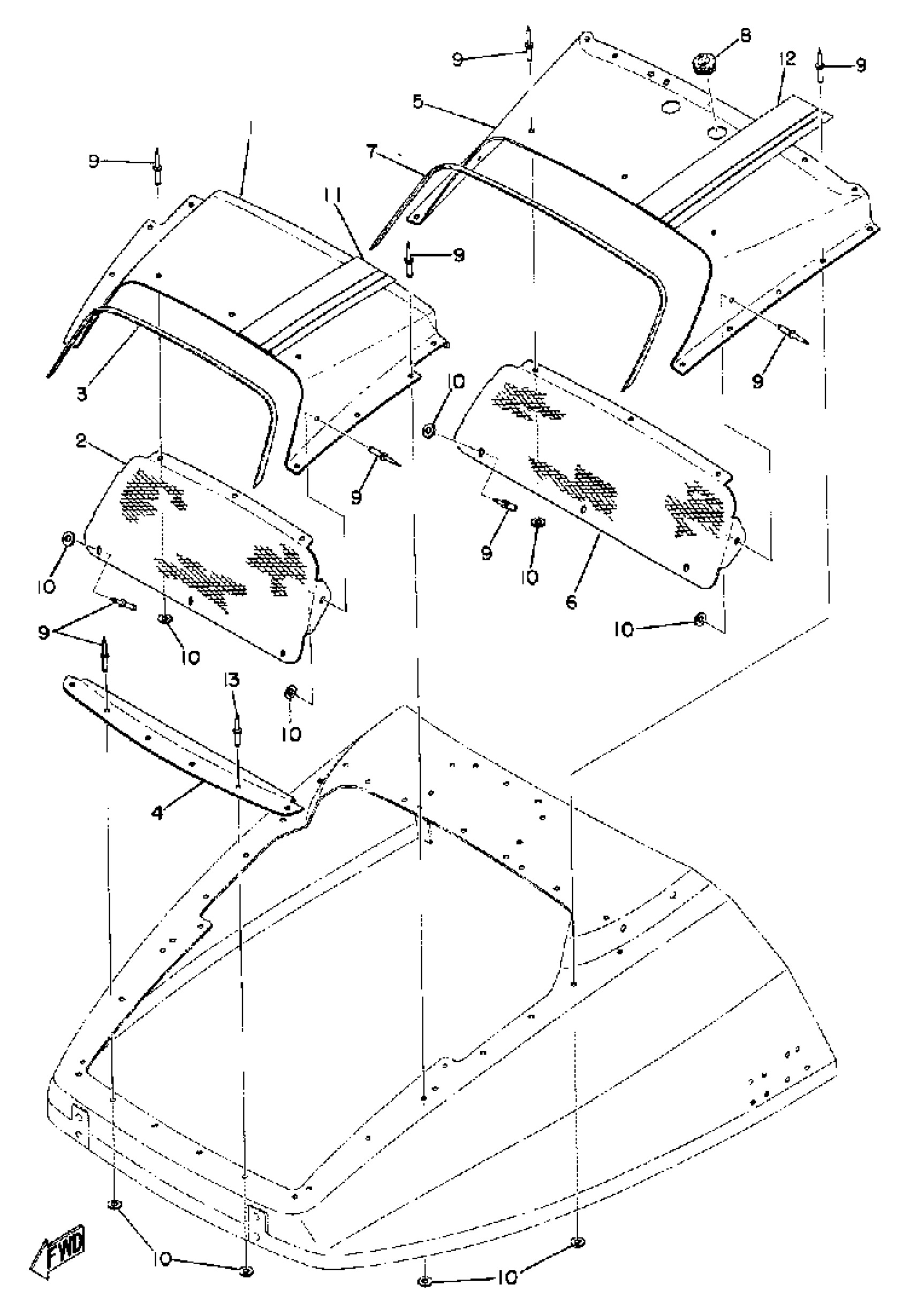

1975 Yamaha SR643 Louver Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOUVER 1

(836-77131-00-00)

1
Out of stock

2

LOUVER 3

(836-77133-00-00)

1
Out of stock

3

TRIM 3

(836-77167-00-00)

1
Out of stock

4

GUIDE 2

(836-77124-00-00)

1
Out of stock

5

LOUVER 2

(836-77132-00-00)

1
Out of stock

6

LOUVER 4

(836-77134-00-00)

1
Out of stock

7

TRIM 4

(836-77168-00-00)

1
Out of stock

8

GROMMET

(802-77746-00-00)

1
Out of stock

9

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

10

1

$2.62

In stock

11

ORNAMENT 4

(836-77113-00-00)

1
Out of stock

12

ORNAMENT 5

(836-77114-00-00)

1
Out of stock

13

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock
