1991 Yamaha SR540RSR Windshield Diagram

← All diagrams

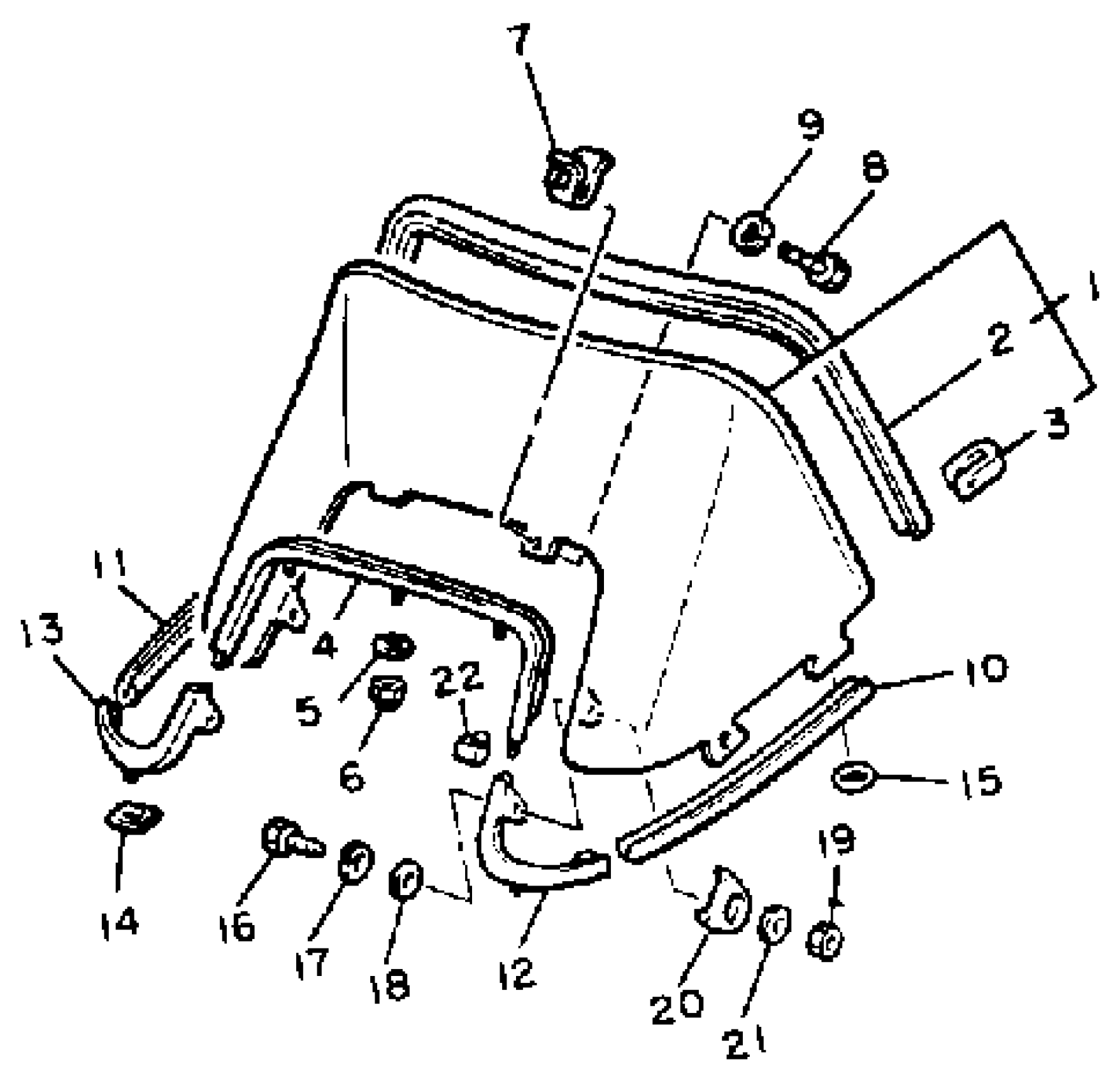

Find the part on the Windshield diagram for your 1991 Yamaha SR540RSR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Yamaha SR540RSR Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD (8L0-77210-00)

8L0-77210-00-XX

1
Out of stock

2

TRIM,UPPER

87K-77213-00-00

1
Out of stock

3

. FASTENER

80V-77223-00-00

1
Out of stock

4

TRIM, LOWER

8L0-77214-00-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

6

NUT, NYLON

95707-05300-00

1

$2.74

In stock

7

BRACKET, WNDSHLD R

8K4-77222-00-00

1
Out of stock

8

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

TRIM 3

8L0-77215-00-00

1
Out of stock

11

TRIM 4

8L0-77216-00-00

1
Out of stock

12

TRIM 5

8L0-77225-00-00

1
Out of stock

13

TRIM 6

8L0-77226-00-00

—

$62.00

In stock

14

NUT, SPRING(8AJ)

90183-05068-00

1

$7.46

In stock

15

FASTNER

82H-77223-00-00

1

$7.63

In stock

16

BOLT(6A1)

97095-05016-00

—

$1.46

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

19

NUT, CAP

95307-05800-00

—

$5.62

In stock

20

WASHER, SPECIAL

8L9-77116-00-00

1
Out of stock

21

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

22

CLAMP 2

8L0-77136-00-00

1
Out of stock
