1991 Yamaha SR540RSR Track Drive 2 Diagram

← All diagrams

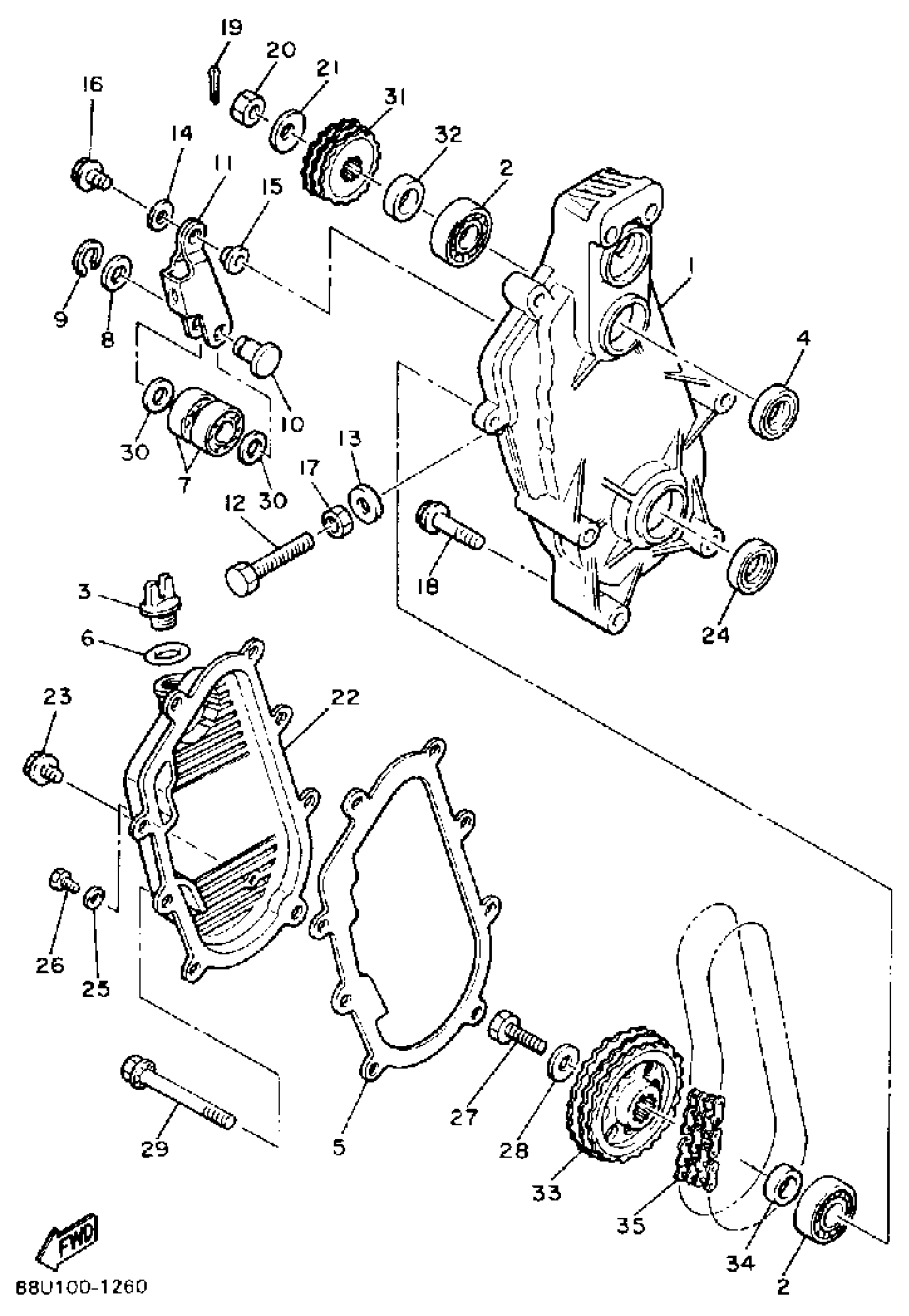

Find the part on the Track Drive 2 diagram for your 1991 Yamaha SR540RSR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Yamaha SR540RSR Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN (8L9-47541-00-00)

99999-02203-00

1
Out of stock

2

BEARING (80N)

93306-20570-00

—
Out of stock

3

PLUG, OIL

3Y1-15363-10-00

1
Out of stock

4

OIL SEAL (8K4)

93102-27204-00

1
Out of stock

5

GASKET

86M-47592-01-00

1
Out of stock

6

O-RING (646)

93210-19123-00

—
Out of stock

7

BRG.

93306-30101-00

1
Out of stock

8

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

9

CIRCLIP(10Y)

99009-12400-00

1
Out of stock

10

PIN(86P)

90249-12216-00

—
Out of stock

11

HOLDER

8U9-47613-02-00

1
Out of stock

12

BOLT, HEXAGON (8F3)

90101-10357-00

—
Out of stock

13

WASHER SEAL 256111730200

90210-10004-00

1
Out of stock

14

WASHER, PLAIN

92990-08200-00

1
Out of stock

15

COLLAR (8K4)

90387-08301-00

—
Out of stock

16

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

17

NUT (682)

95380-10700-00

1
Out of stock

18

BOLT, FLANGE

95814-08065-00

—
Out of stock

19

PIN, COTTER

91490-30030-00

—
Out of stock

20

NUT, HEXAGON (8F3)

90170-20211-00

—
Out of stock

21

WASHER (853)

90208-20008-00

—
Out of stock

22

CAP, HOUSING

82M-47543-00-00

1
Out of stock

23

BOLT, FLANGE

95817-06030-00

—
Out of stock

24

OIL SEAL (25X44X6-810)

93102-25081-00

—
Out of stock

25

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

26

BOLT(3JP)

97017-06010-00

—
Out of stock

27

BOLT

98022-10025-00

1
Out of stock

28

WASHER PLATE (3L6)

90201-10742-00

—
Out of stock

29

BOLT, FLANGE

95817-08090-00

—
Out of stock

30

WASHER, PLATE (10X)

90201-124F8-00

—
Out of stock

31

SPROCKET, CHAIN DRIVE (17T)

88F-17682-70-00

1
Out of stock

31

SPROCKET, CHAIN DRIVE (18T)

88F-17682-80-00

1
Out of stock

32

COLLAR

90387-250K3-00

1
Out of stock

33

SPROCKET, CHAIN DRIVEN (33T)

88F-47587-00-00

1
Out of stock

33

SPROCKET, CHAIN DRIVEN (35T)

88F-47587-20-00

1
Out of stock

34

COLLAR

90387-256V3-00

1
Out of stock

35

CHAIN (64L)

94860-01064-00

1
Out of stock

35

CHAIN (66L)

94860-01066-00

1
Out of stock

35

CHAIN (68L)

94860-01068-00

1
Out of stock

35

CHAIN

(94860-01070-00)

1
Out of stock
