1990 Yamaha SRV (SR540P) Frame Diagram

← All diagrams

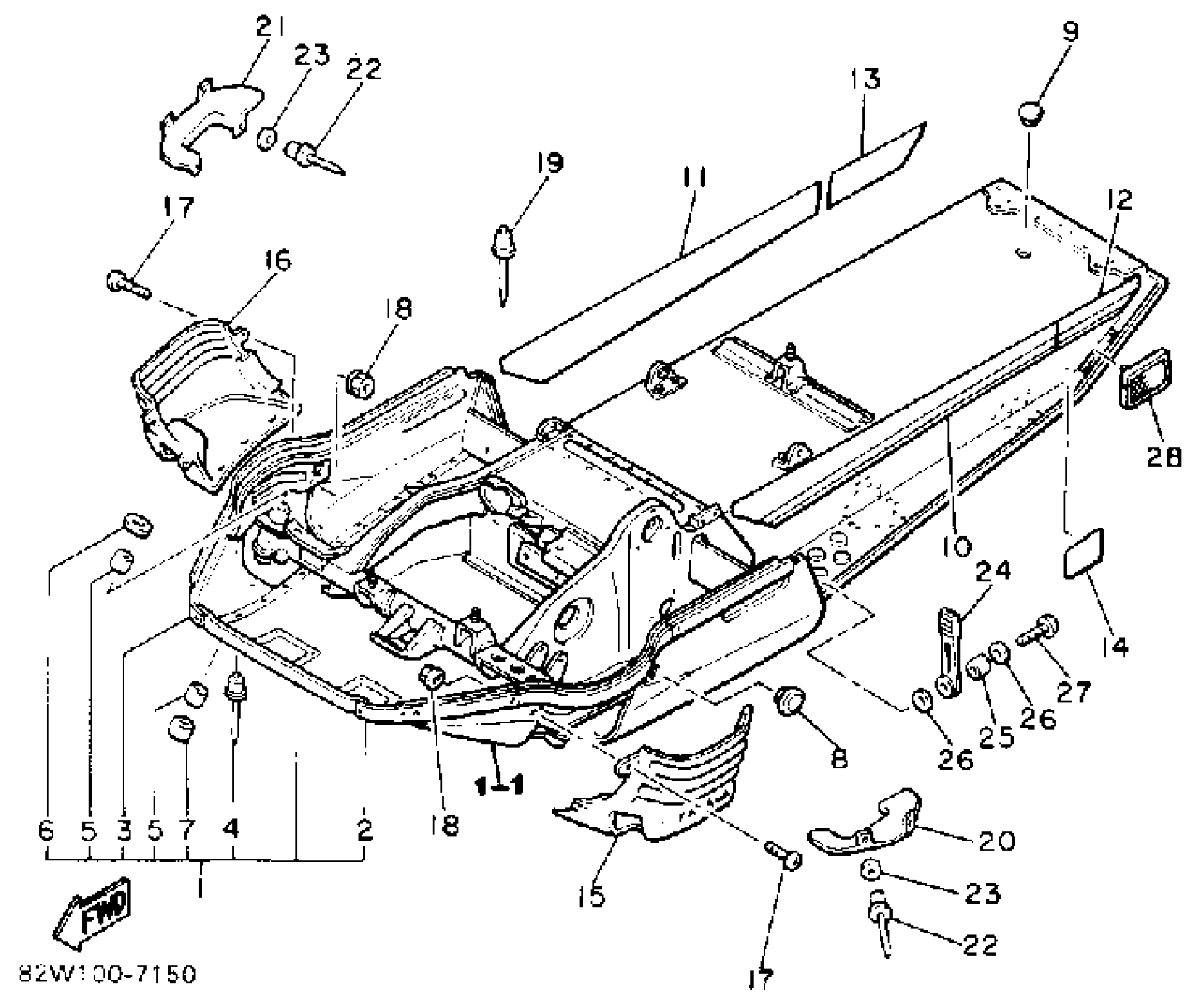

Find the part on the Frame diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha SRV (SR540P) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. BELLY PAN

8R6-21912-09-00

1
Out of stock

1

FRAME

8Y0-21910-00-00

1
Out of stock

2

. HOOD 1

8U7-21982-00-00

1
Out of stock

2

. HOOD 1

8U7-21982-10-00

1
Out of stock

3

. HOOD 2

8U7-21983-00-00

1
Out of stock

3

. HOOD 2

8U7-21983-10-00

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

1

$9.68

In stock

6

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

7

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

10

EMBLEM 1

86P-77351-00-00

1
Out of stock

11

EMBLEM 2

86P-77352-00-00

1
Out of stock

12

EMBLEM 3

86P-77353-00-00

1
Out of stock

13

EMBLEM 4

86P-77354-00-00

1
Out of stock

14

INDICATOR 2

8K2-77742-00-00

1
Out of stock

15

COVER 1

8L0-2198F-00-00

1
Out of stock

16

COVER 2

8L0-2198G-00-00

1
Out of stock

17

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

18

NUT, W/ WASHER

95707-05600-00

1
Out of stock

19

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

20

SHIELD, NOISE

8L9-2199F-00-00

1
Out of stock

21

SHIELD, NOISE 2

8L9-2199J-00-00

1
Out of stock

22

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

23

WASHER, PLATE

90201-04027-00

—
Out of stock

24

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

25

COLLAR (420)

90387-06241-00

—

$6.18

In stock

26

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

27

SCREW, BINDING

98907-06030-00

—

$5.94

In stock

28

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock
