- SR540N (SRV) 1989
TRACK DRIVE 2

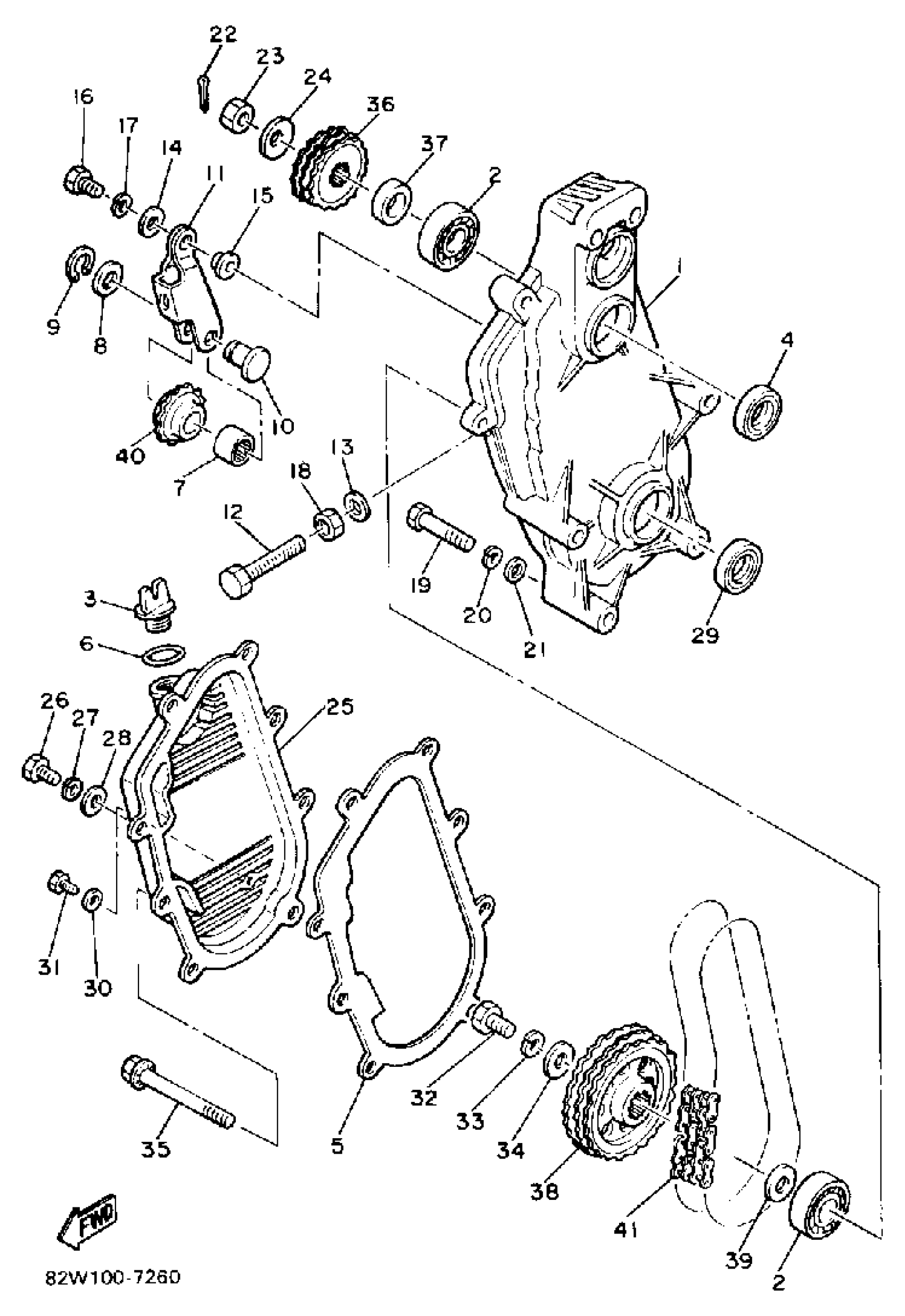

1989 Yamaha SRV (SR540N) Track Drive 2 Diagram
Find the part on the Track Drive 2 diagram for your 1989 Yamaha SRV (SR540N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HOUSING, CHAIN (8L9-47541-00-00)
99999-02203-00
5
GASKET
86M-47592-01-00
8
WASHER, PLATE (583)
90201-12631-00
10
PIN, SPECL SHAPE
90249-12135-00
11
HOLDER
8K4-47613-00-00
19
BOLT
97021-08065-00
24
WASHER (853)
90208-20008-00
25
CAP, HOUSING
82M-47543-00-00
29
OIL SEAL (25X44X6-810)
93102-25081-00
36
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
36
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
36
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
36
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
36
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
36
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
36
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
36
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
37
COLLAR
90387-25798-00
38
SPROCKET,CHN DRVN
8U9-47548-90-00
38
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
38
SPROCKET, CHN DRVN (888-47587-00) (33T)
8U9-47587-10-00
38
SPROCKET, CHN DRVN (878-47587-20) (35T)
8U9-47587-30-00
39
WASHER, PLATE (888)
90201-25526-00
40
WHEEL
8L0-47612-00-00
41
CHAIN
94890-05064-00
41
CHAIN
94890-05066-00
41
CHAIN
94890-05068-00
41
CHAIN
94890-05070-00
