1989 Yamaha SRV (SR540N) SKI Diagram

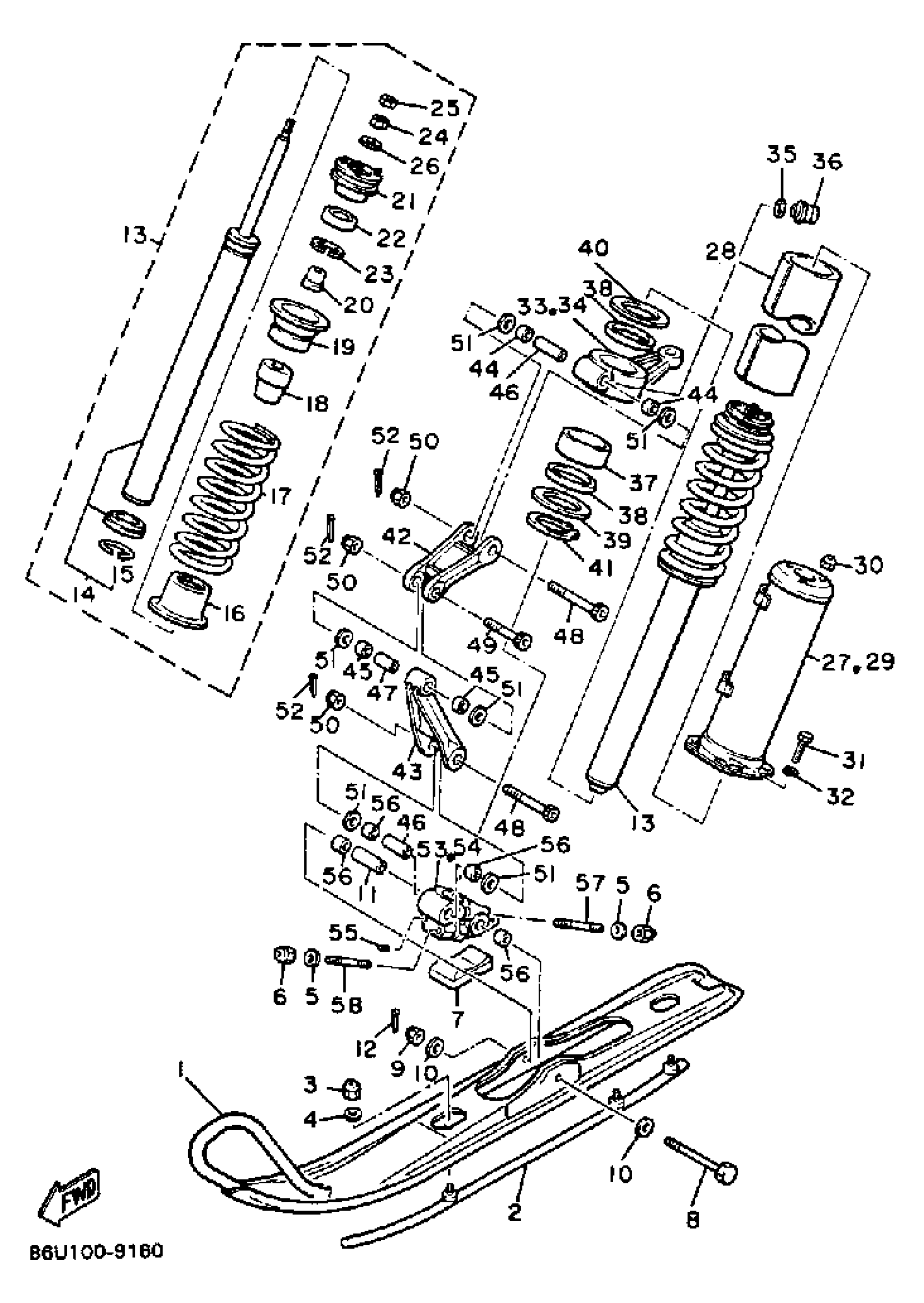

Find the part on the SKI diagram for your 1989 Yamaha SRV (SR540N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI COMP. 1
86M-23710-00-00
2
SKI RUNNER, 1
82W-23731-01-XX
7
STOPPER 1
82M-23743-00-00
10
WASHER(6TA)
92907-10600-00
13
ABSORBER ASSEMBLY 1
84L-2376A-00-00
14
. DAMPER SUB-ASSEMBLY
84L-22401-00-00
15
. CIRCLIP, OUTER
93440-36087-00
16
. SEAT, SPRING 2
8L9-23777-00-00
18
. BUMP, STOP
8L0-22493-00-00
19
PLATE, BACK UP
8AB-23788-00-00
20
. COLLAR
90387-100A5-00
21
. HOLDER, BEARING
8L0-2376H-00-00
24
. NUT
90170-08220-00
27
HOLDER, ABSORBER
8L9-2376J-00-00
29
PROTECTOR 3
8M6-77553-00-00
33
ARM, OUTSIDE 1
8U7-23851-00-00
34
ARM, OUTSIDE 2
8U7-23852-00-00
49
BOLT, WITH HOLE
90102-10038-00
51
WASHER PLATE 626441260000
90202-14037-00
