1987 Yamaha SRV (SR540L) Fuel Tank Diagram

← All diagrams

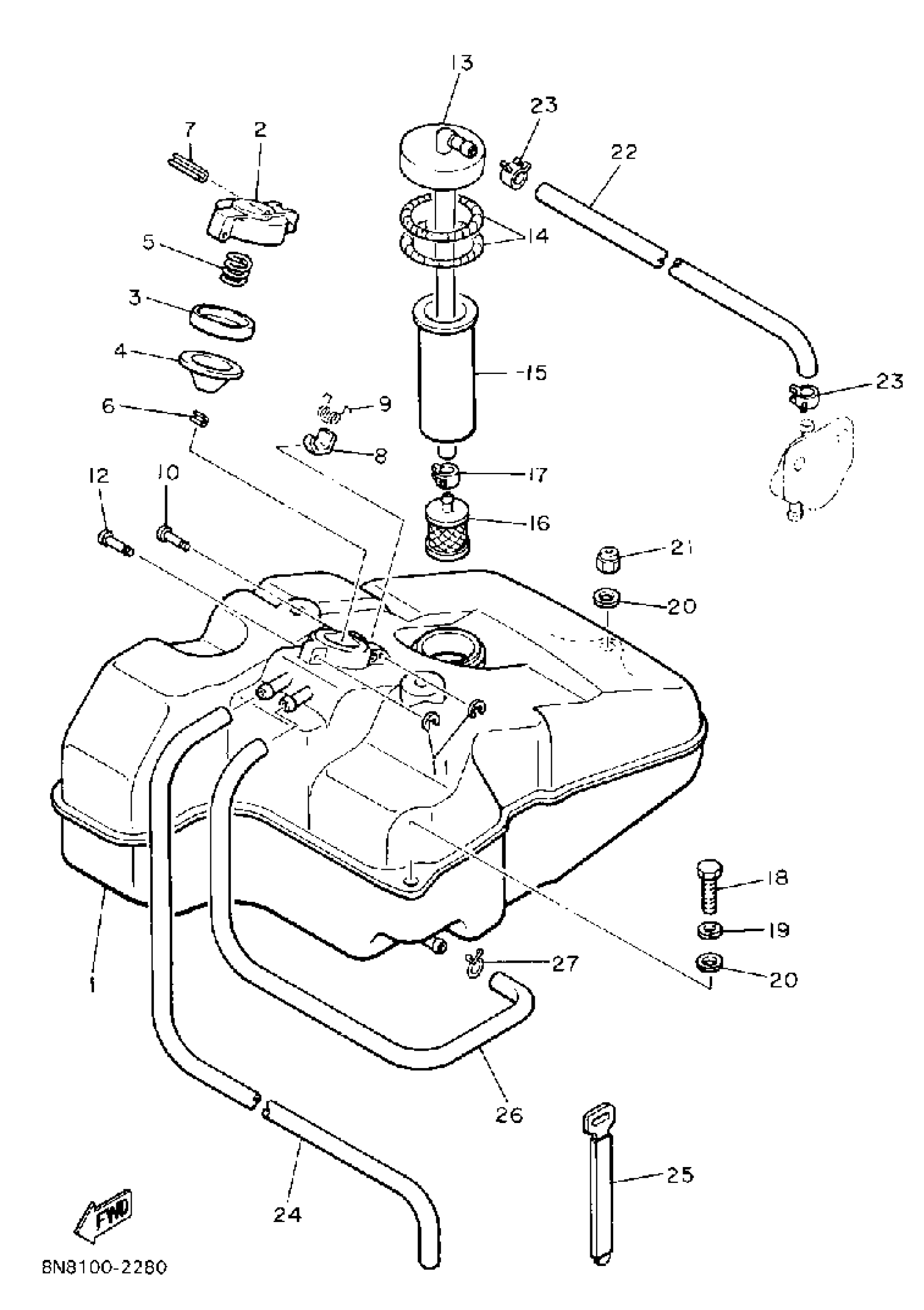

Find the part on the Fuel Tank diagram for your 1987 Yamaha SRV (SR540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha SRV (SR540L) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK (8K4-24111-01)

86P-24111-01-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1
Out of stock

4

GASKET, CAP 1

89A-24641-00-00

1
Out of stock

5

SPRING, CAP

90501-20130-00

1
Out of stock

6

PIN, SPRING

91690-30016-00

1
Out of stock

7

PIN, SPRING

91609-25032-00

1
Out of stock

8

HOOK

83M-24628-00-00

1
Out of stock

9

SPRING, TORSION(81E)

90508-10715-00

—
Out of stock

10

PIN (813)

90249-03017-00

1
Out of stock

11

CIRCLIP (604)

93430-02001-00

1
Out of stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

PIPE, SUCTION 1

83R-24335-00-00

1
Out of stock

14

SPRING, TENSION (8R4)

90506-06261-00

1
Out of stock

15

PIPE, SUCTION 2

8K4-24336-00-00

1
Out of stock

16

FILTER ASSY

8H5-24560-00-00

1
Out of stock

17

CLIP

90467-11028-00

1
Out of stock

18

CLIP

90467-11028-00

1
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

20

WASHER, PLATE (8L8)

90201-087A9-00

—
Out of stock

21

NUT, NYLON

95717-08300-00

—
Out of stock

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—
Out of stock

23

CLIP

90467-11028-00

1
Out of stock

24

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—
Out of stock

25

BAND

341-26397-01-00

1
Out of stock

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—
Out of stock

27

CLIP (8A1)

90467-09026-00

—
Out of stock
