1987 Yamaha SRV (SR540L) Bumper Diagram

← All diagrams

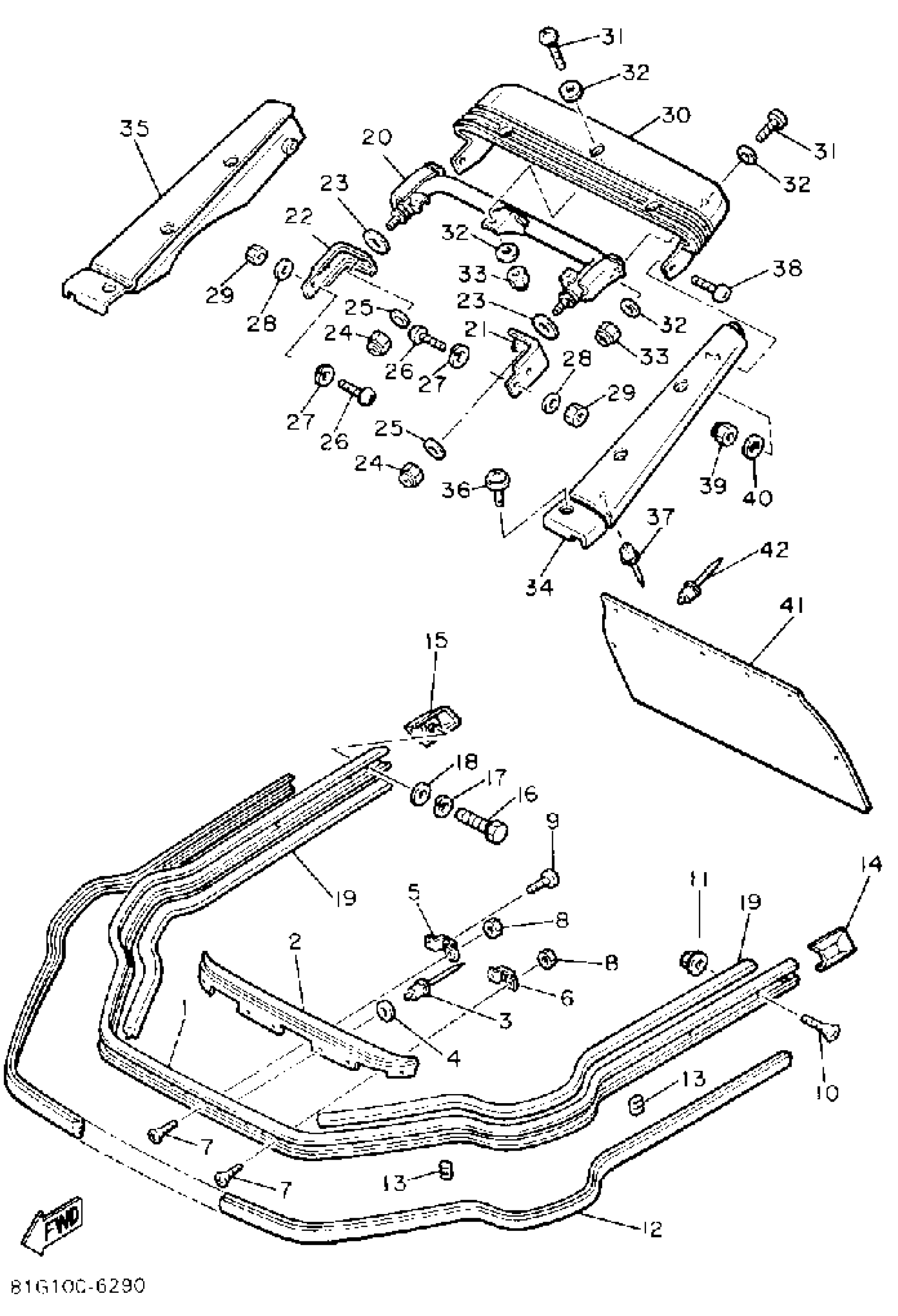

Find the part on the Bumper diagram for your 1987 Yamaha SRV (SR540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha SRV (SR540L) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8R6-77511-00-00

1
Out of stock

2

BUMPER, FRONT 2

8R6-77512-00-00

1
Out of stock

3

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

4

WASHER, PLATE

90201-04027-00

1
Out of stock

5

BRACKET, FRONT L (L.H)

8N8-77531-00-00

1
Out of stock

6

BRACKET, FRONT R (R.H)

8N8-77532-00-00

1
Out of stock

7

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

8

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

9

SCREW, BIND (705)

98980-06016-00

1
Out of stock

10

SCREW, FLAT

98707-06014-00

1
Out of stock

11

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

12

BUSH, RUBBER 2

8R6-77516-00-00

1
Out of stock

13

PLATE, BACK UP

8R6-77527-00-00

1
Out of stock

14

END, BUMPER

8N8-77523-00-00

1
Out of stock

15

END, BUMPER

8N8-77524-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

BUSH, RUBBER 1

8T3-77515-00-00

1
Out of stock

20

BUMPER, REAR 1

8M6-77541-00-00

1
Out of stock

21

WASHER 1

8M6-77525-01-00

1
Out of stock

22

WASHER 2

8M6-77526-01-00

1
Out of stock

23

WASHER, PLATE(47X)

90201-121J0-00

—

$5.46

In stock

24

NUT, NYLON

95707-10300-00

—

$6.68

In stock

25

—

$3.00

In stock

26

SCREW, BIND (J17)

98980-06020-00

—

$6.68

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

BUMPER, REAR 2

8M6-77542-00-00

1
Out of stock

31

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

32

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

33

NUT, NYLON

95707-05300-00

—

$2.74

In stock

34

BUMPER, REAR 3

8M6-77543-00-00

1
Out of stock

35

BUMPER, REAR 4

8M6-77544-00-00

1
Out of stock

36

SCREW, WITH WASHER

90159-05056-00

—
Out of stock

37

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

38

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

39

NUT, NYLON

95707-06300-00

—

$3.20

In stock

40

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

41

FLAP

8X9-77595-00-00

1
Out of stock

42

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock
