TRACK SUSPENSION 2

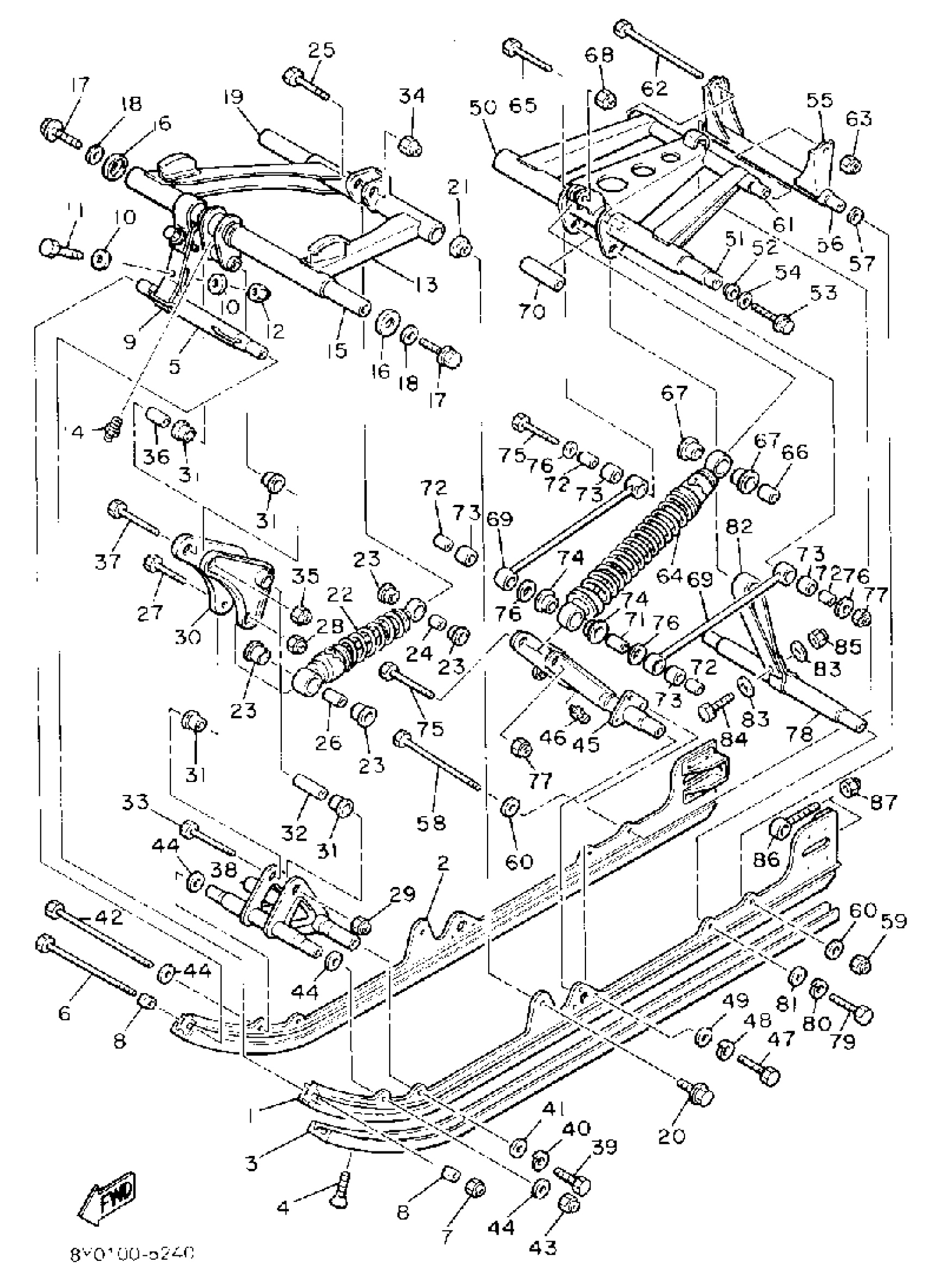

1985 Yamaha SRV (SR540J) Track Suspension 2 Diagram
Find the part on the Track Suspension 2 diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME SLIDING 2
88R-W4741-00-00
2
FRAME SLIDING 2
88R-W4741-00-00
3
RUNNER,SLIDING 1
8R9-47421-00-XX
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
5
BRACKET 1
8U7-47415-00-00
6
BOLT,HEXAGON
97027-08255-00
8
WASHER
8U7-47359-00-00
9
STOPPER 1
8U7-47495-00-00
13
ARM, PIVOT 1
8U7-47331-00-00
15
SHAFT 1
885-47465-03-00
16
SPACER
8U7-47341-00-00
19
SHAFT 3
82M-47485-02-00
22
SHOCK ABSORBER 2
8V9-47481-00-00
24
COLLAR
90387-08775-00
25
. BOLT
90101-08557-00
26
COLLAR
90387-08478-00
27
BOLT
97021-08065-00
30
BRACKET 6
8U7-47464-00-00
31
COLLAR
90387-123G5-00
32
COLLAR
90387-08478-00
33
BOLT
97021-08065-00
36
COLLAR
90387-084G0-00
38
BRACKET 4
8U7-47418-00-00
42
BOLT,HEXAGON
97027-08255-00
45
BRACKET 2
8AX-47416-01-00
50
ARM, PIVOT 2 (8U7-47332-00-00)
99999-02178-00
51
SHAFT 2
8U7-47475-01-00
52
COLLAR
8Y0-47319-00-00
55
BRACKET 3
8U7-47417-00-00
56
COLLAR
90387-08632-00
57
WASHER (1T1)
90201-08649-00
58
BOLT,HEXAGON
97027-08255-00
62
BOLT (83L)
97027-08220-00
64
SHOCK ABSORBER
8Y0-47480-00-00
65
BOLT
90101-10561-00
69
ROD, RELAY
8U7-47494-02-00
70
COLLAR
90387-103G9-00
71
COLLAR
90387-104G1-00
75
BOLT
90101-10560-00
78
SHAFT 4
8V0-47486-00-00
82
STOPPER 2
8U7-47496-00-00
