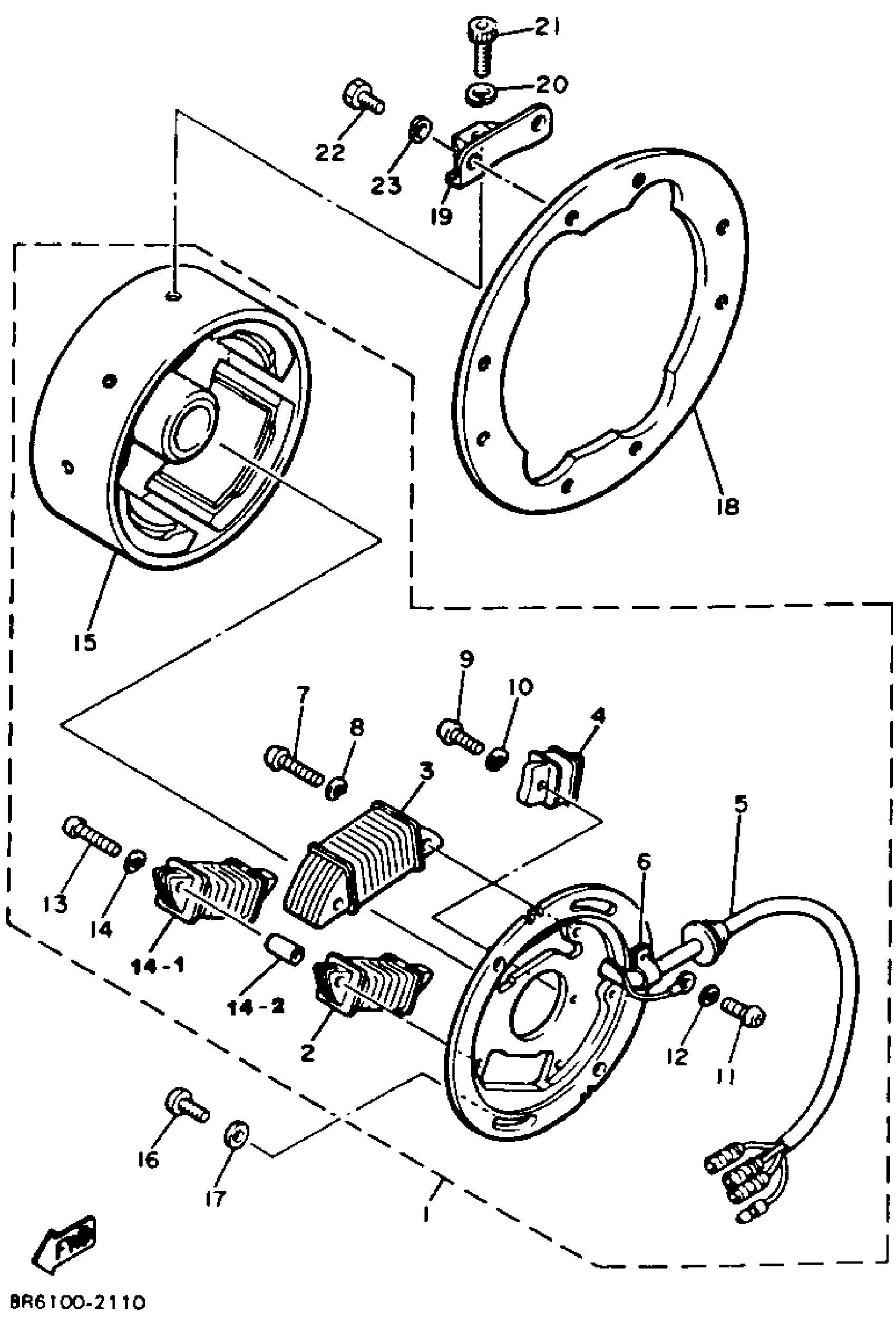

Find the part on the Generator diagram for your 1984 Yamaha SRV (SR540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha SRV (SR540H) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

1
Out of stock

1

CDI MAGNETO ASSEMBLY

8V8-85500-20-00

1
Out of stock

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

1
Out of stock

2

. SPACER

8T0-85519-20-00

1
Out of stock

3

. COIL, LIGHTING 1

8G8-85513-20-00

1
Out of stock

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

1
Out of stock

5

. LEAD WIRE ASSEMBLY (8V0-85515-20)

8W0-85515-20-00

1
Out of stock

6

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

7

SCREW, PAN

98507-05035-00

1

$6.69

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

1
Out of stock

16

SCREW, BIND(J39)

98980-06014-00

—

$5.66

In stock

17

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock

18

GEAR, RING

8H8-81891-00-00

1
Out of stock

19

STAY, RING GEAR

8H8-81895-00-00

1
Out of stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

22

BOLT (661)

97013-06012-00

—

$4.71

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
