1983 Yamaha SRV (SR540G) Intake Diagram

← All diagrams

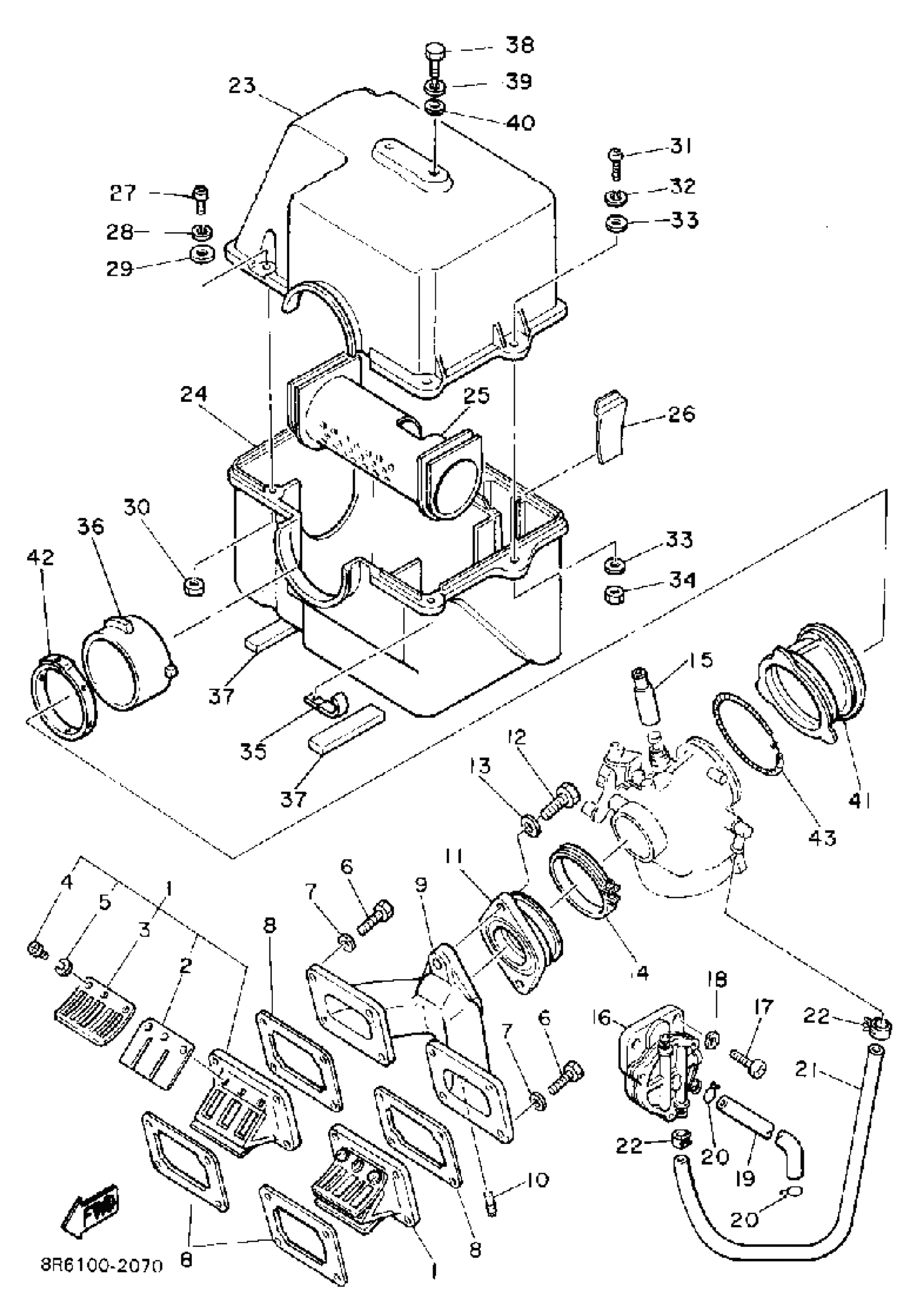

Find the part on the Intake diagram for your 1983 Yamaha SRV (SR540G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha SRV (SR540G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1

$40.80

In stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

9

JOINT, CARBURETOR

8R6-13565-00-00

1
Out of stock

10

NOZZLE

824-13552-00-00

1
Out of stock

11

MANIFOLD, INTAKE

8H8-13555-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

CLAMP, HOSE

90460-60084-00

1
Out of stock

15

BOOT

8J5-26352-00-00

1
Out of stock

16

FUEL PUMP ASSY

8K4-24410-01-00

1
Out of stock

17

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

HOSE (L450)

90445-10144-00

—

$4.52

In stock

20

CLIP

90467-090A2-00

—

$2.51

In stock

21

HOSE

90446-11326-00

1
Out of stock

22

CLIP

90467-11028-00

1

$5.14

In stock

23

SILENCER, INTAKE 1

8K4-14431-00-00

1
Out of stock

24

SILENCER, INTAKE 2

8K4-14441-01-00

1
Out of stock

25

PIPE

8L0-14466-00-00

1
Out of stock

26

PLATE

8K4-14477-00-00

1
Out of stock

27

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

30

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

31

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

CLAMP(7RG)

90462-06232-00

—

$7.97

In stock

36

PIPE

8N8-14465-00-00

1
Out of stock

37

DAMPER 1

8K4-14425-00-00

1
Out of stock

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

41

JOINT, AIR CLEANER1

8N8-14453-01-00

1
Out of stock

42

—

$6.89

In stock

43

HOSE CLAMP ASSY

90450-75002-00

—

$10.40

In stock
