1983 Yamaha SRV (SR540G) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1983 Yamaha SRV (SR540G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

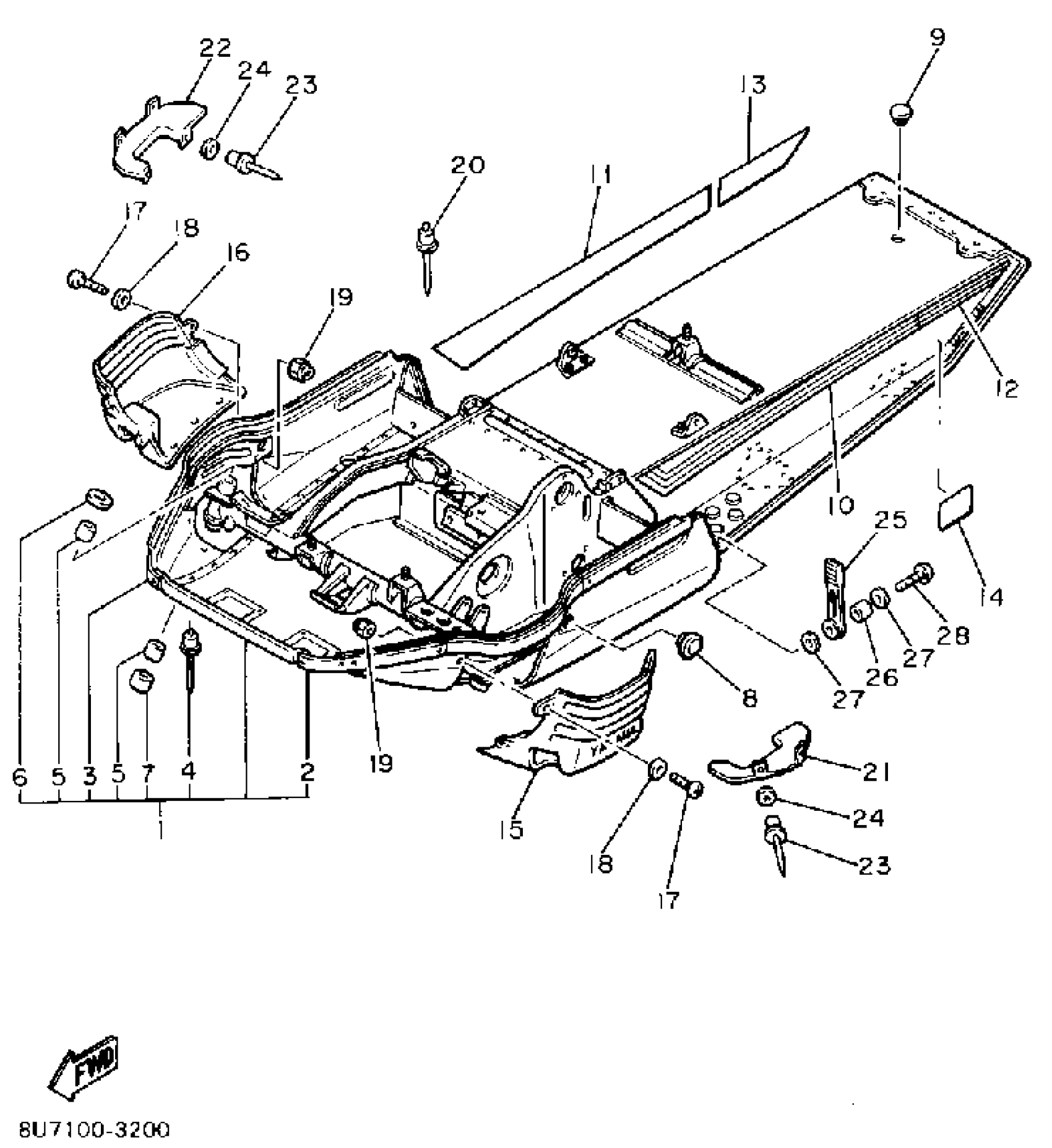

1983 Yamaha SRV (SR540G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8U7-21910-00-00

1
Out of stock

2

. HOOD 1

8U7-21982-00-00

1
Out of stock

3

. HOOD 2

8U7-21983-00-00

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

1

$9.68

In stock

6

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

7

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

10

EMBLEM 1

8U7-77351-00-00

1
Out of stock

11

EMBLEM 2

8U7-77352-00-00

1
Out of stock

12

EMBLEM 3

8U7-77353-00-00

1
Out of stock

13

EMBLEM 4

8U7-77354-00-00

1
Out of stock

14

INDICATOR 2

8K2-77742-00-00

1
Out of stock

15

COVER 1

8L0-2198F-00-00

1
Out of stock

16

COVER 2

8L0-2198G-00-00

1
Out of stock

17

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

18

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

19

NUT, NYLON

95707-05300-00

—

$2.74

In stock

20

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

21

SHIELD, NOISE

8L9-2199F-00-00

1
Out of stock

22

SHIELD, NOISE 2

8L9-2199J-00-00

1
Out of stock

23

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

24

WASHER, PLATE

90201-04027-00

—
Out of stock

25

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

26

COLLAR (420)

90387-06241-00

—

$6.18

In stock

27

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

28

SCREW, BINDING

98907-06030-00

—

$5.94

In stock
