1980 Yamaha SR500G (SR500G) Handlebar - Cable Diagram

← All diagrams

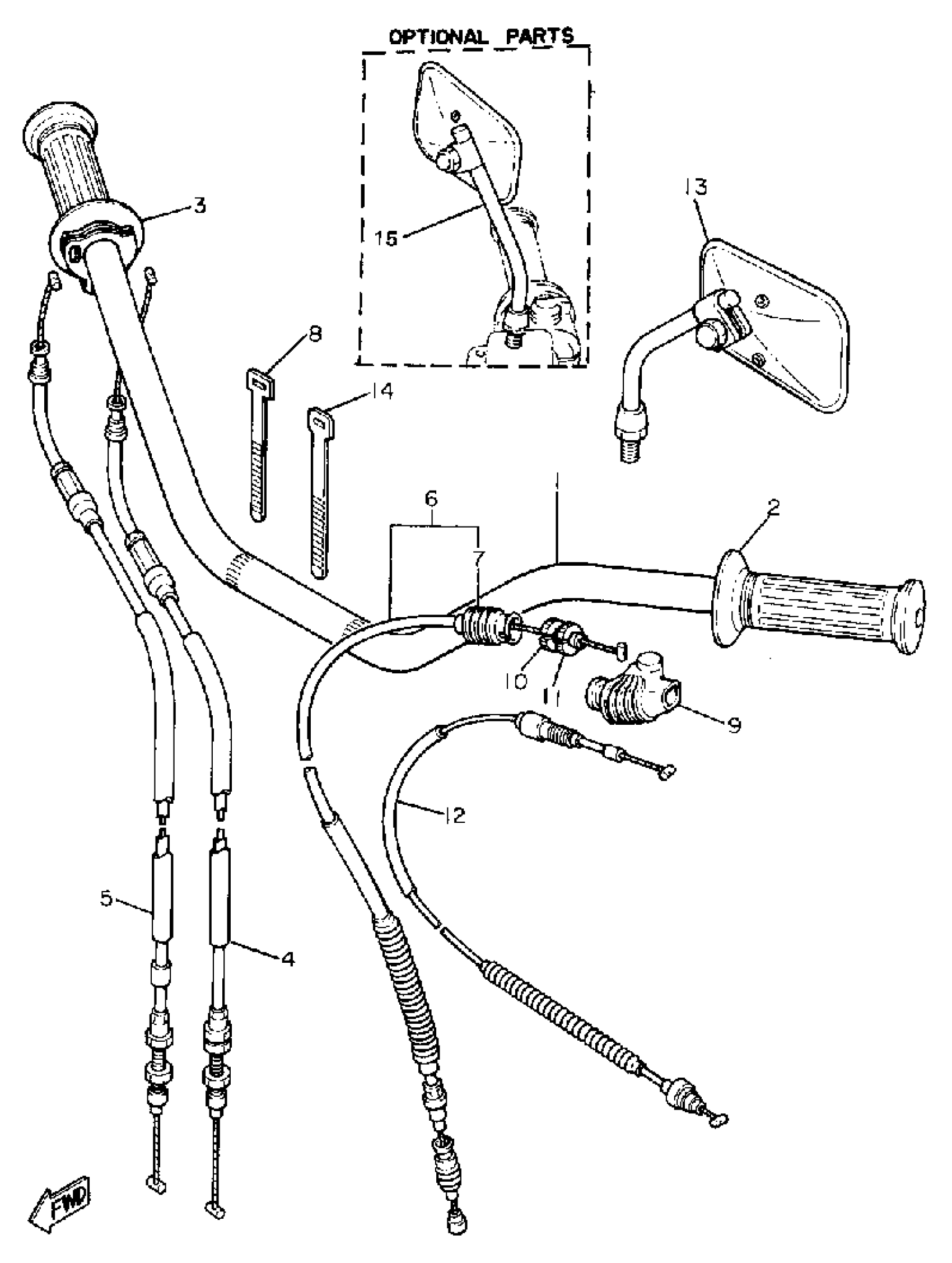

Find the part on the Handlebar - Cable diagram for your 1980 Yamaha SR500G (SR500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR500G (SR500G) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

1J7-26111-00-00

1

$135.22

In stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

GRIP ASSY

2J2-26240-01-00

1
Out of stock

4

CABLE, THROTTLE 1

2J2-26311-10-00

1
Out of stock

5

CABLE, THROTTLE 2

2J2-26312-10-00

1
Out of stock

6

CABLE, CLUTCH

2J2-26335-01-00

1
Out of stock

7

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

8

BAND

341-26397-01-00

1
Out of stock

9

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

10

BOLT

90123-08002-00

1

$8.93

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

CABLE, STARTER 1

2J2-26331-01-00

1
Out of stock

13

REAR VIEW MIRROR ASSY (LEFT)

2G2-26290-11-00

1
Out of stock

14

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

15

REAR VIEW MIRROR ASSY (RIGHT)

2G2-26290-01-00

1
Out of stock
