Description

Price

1

SHIFT SHAFT COMP.

2J2-18103-00-00

$79.03

2

SCREW 214181860000

90149-06017-00

$5.43

3

NUT, HEXAGON

95380-06600-00

$3.96

4

SPRING TORSION 214181240000

90508-32052-00

$5.23

5

WASHER, LOCK

90215-06016-00

$2.15

6

WASHER, SPRING

92995-06100-00

$2.87

7

STOPPER, SCREW

278-18127-01-00

$14.87

8

WASHER, LOCK (583 SHIFT)

90215-08115-00

$5.37

9

OIL SEAL (14X24X6-256)

93109-14010-00

$10.19

10

WASHER PLATE 248181370000

90201-14220-00

$5.75

11

. CIRCLIP

99001-12600-00

$5.55

12

BOOTS, SEALING

583-18131-00-00

$14.76

13

PEDAL, SHIFT

2J2-18111-01-00

$46.54

14

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

15

BOLT, HEXAGON

97017-06020-00

$2.37

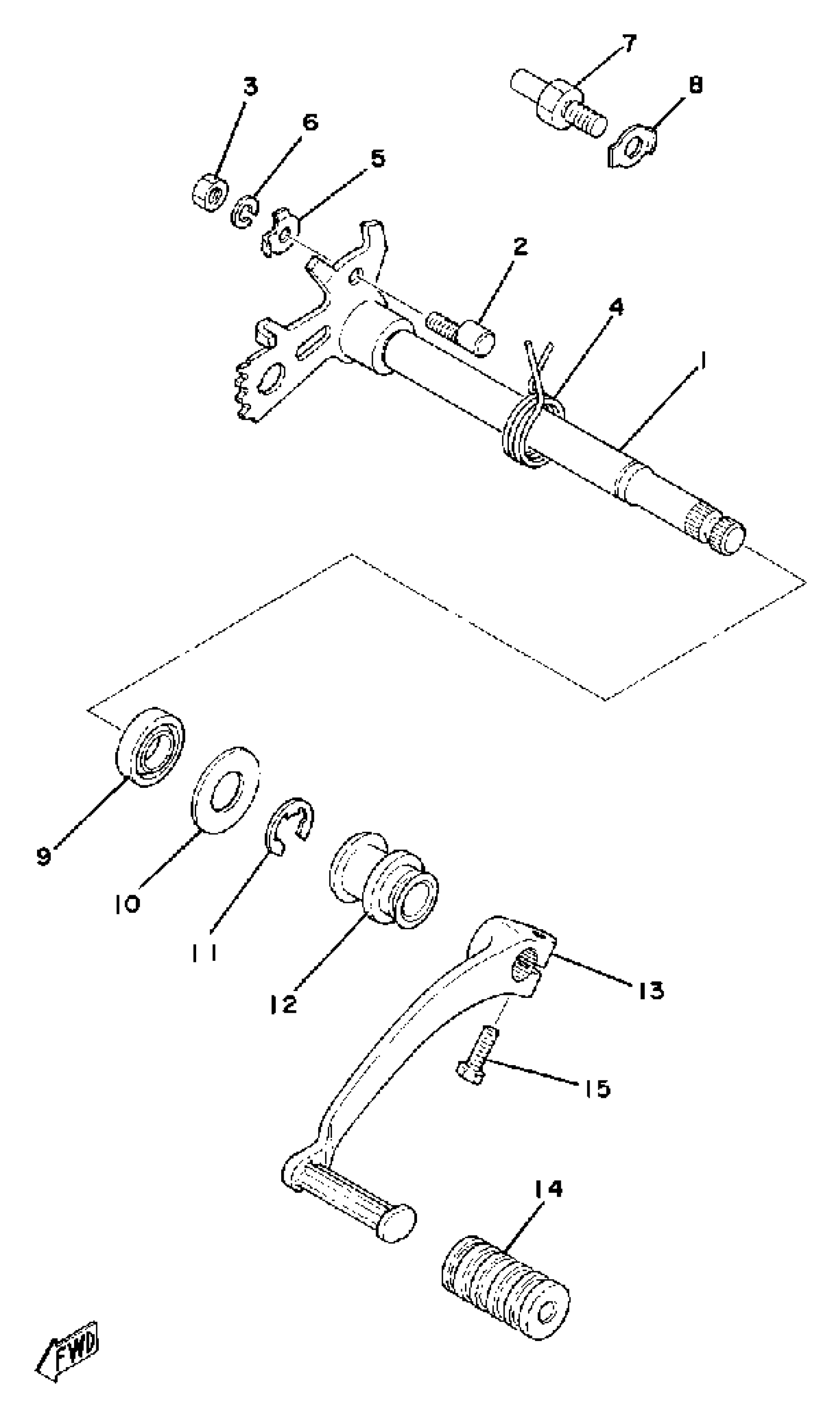

Yamaha SR500F (SR500F) 1979 SHIFTER 2 Diagram
