1979 Yamaha SR500F (SR500F) Flasher Lamp Diagram

← All diagrams

Find the part on the Flasher Lamp diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

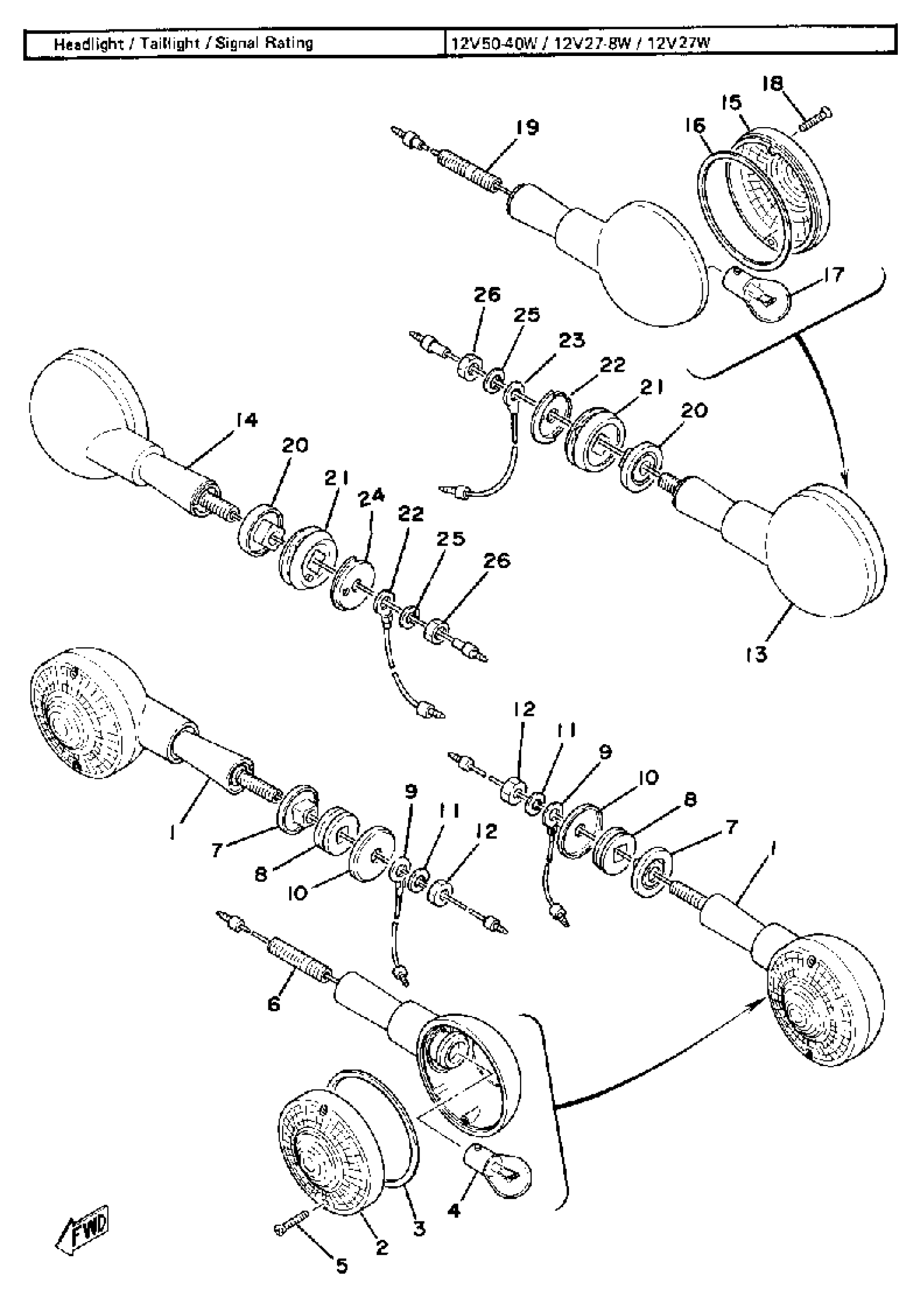

1979 Yamaha SR500F (SR500F) Flasher Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

1
Out of stock

2

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

3

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

4

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

5

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

6

. BOLT, STUD

341-83367-09-00

1
Out of stock

7

COLLAR, FLASHER 1

341-83316-02-00

1
Out of stock

8

DAMPER, FLASHER (371)

341-83321-01-00

1
Out of stock

9

WIRE, EARTH (GROUND)

256-84313-01-00

1
Out of stock

10

WASHER

90209-08008-00

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

NUT(6L2)

95333-08600-00

1

$3.20

In stock

13

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

1
Out of stock

14

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

15

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

16

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

17

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

18

. BOLT, STUD

360-83367-09-00

1
Out of stock

19

COLLAR, FLASHER 1

341-83316-02-00

1
Out of stock

20

DAMPER, FLASHER

1E6-83321-00-00

—

$6.72

In stock

21

WASHER

1E6-83348-00-00

1
Out of stock

22

WIRE, EARTH LEAD 2

3FU-83364-00-00

—

$10.09

In stock

23

WIRE, EARTH LEAD 2

3FU-83364-00-00

—

$10.09

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

25

NUT(6L2)

95333-08600-00

1

$3.20

In stock
