1978 Yamaha SR500E (SR500E) Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

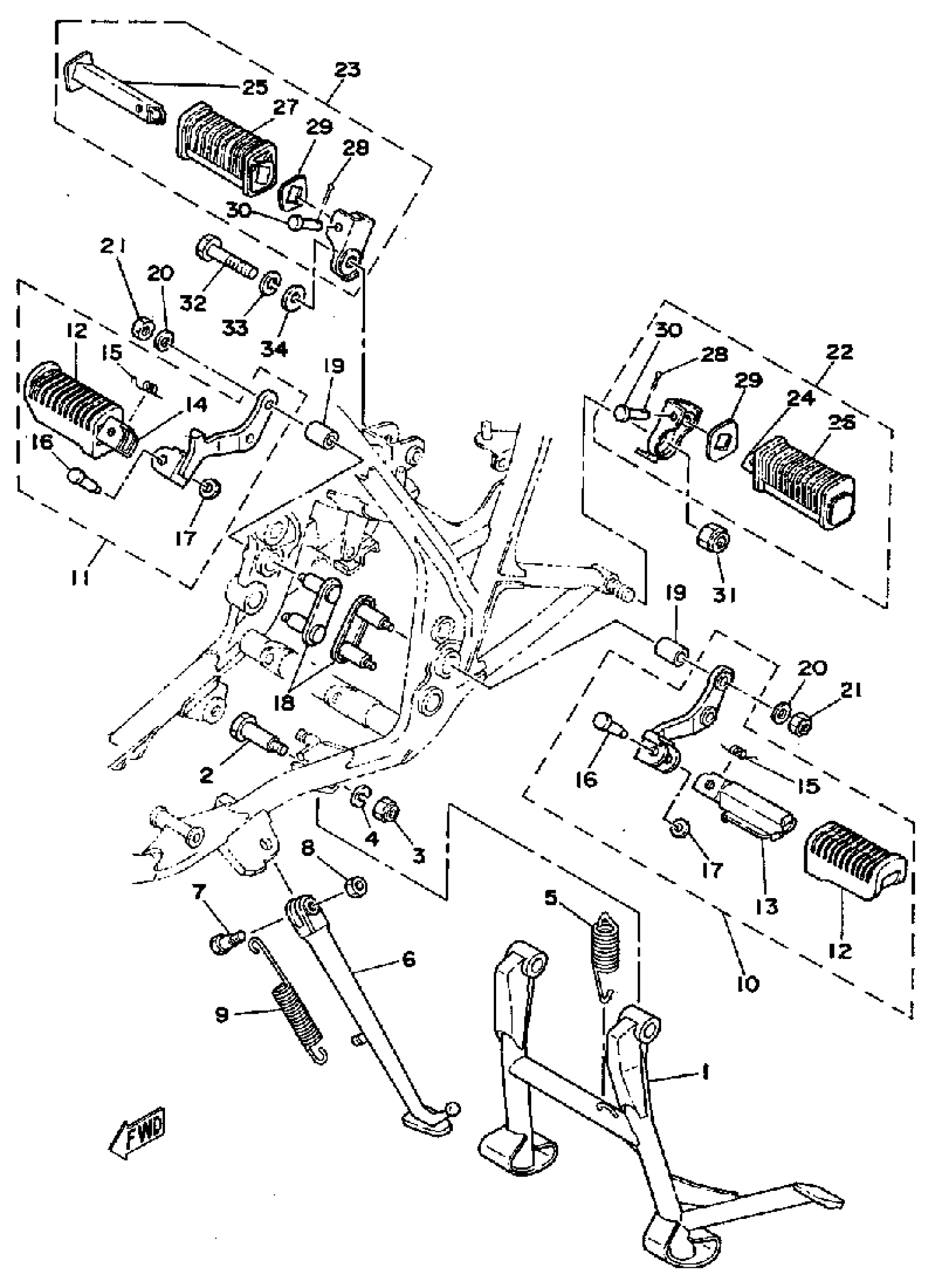

1978 Yamaha SR500E (SR500E) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, MAIN

2J2-27111-00-00

—
Out of stock

2

BOLT(3EB)

90109-102G9-00

—
Out of stock

3

NUT, U

95617-10100-00

1
Out of stock

4

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

5

SPRING, TENSION (2J2)

90506-40175-00

—

$9.43

In stock

6

STAND, SIDE

1JN-27311-00-00

1
Out of stock

7

BOLT

90109-10473-00

1

$6.71

In stock

8

NUT, U

90185-10037-00

1

$6.68

In stock

9

SPRING, TENSION (1J7)

90506-28146-00

1

$15.78

In stock

10

FRT FOOTREST ASY L

48U-27410-00-33

1
Out of stock

11

FRT FOOTREST ASY R

48U-27420-00-33

1
Out of stock

12

COVER, FOOTREST

4L0-27423-00-00

1

$43.04

In stock

13

FOOTREST

3CK-27451-00-00

1
Out of stock

14

FOOTREST

3N6-27461-00-00

1
Out of stock

15

1

$3.26

In stock

16

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

17

—

$6.58

In stock

18

BOLT, FOOTREST

2J2-27416-10-00

—
Out of stock

19

DAMPER, FOOTREST

2J2-27414-01-00

—
Out of stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

NUT, U

95617-08100-00

—

$6.78

In stock

22

RR FOOTREST ASSEMBLY 1

2J2-27430-02-00

1
Out of stock

23

RR FOOTREST ASSEMBLY 2

2J2-27440-01-00

1
Out of stock

24

FOOTREST, REAR 1

447-27431-00-00

1
Out of stock

25

FOOTREST, REAR 2

447-27441-00-00

1
Out of stock

26

. COVER, RR FOOTREST

1J7-27433-00-00

1
Out of stock

27

. COVER, RR FOOTREST

1J7-27444-00-00

1
Out of stock

28

PIN, COTTER

91490-16020-00

1

$6.23

In stock

29

WASHER 447274370000

90209-18070-00

—

$2.57

In stock

30

PIN, CLEVIS (2F9)

91701-06035-00

—
Out of stock

31

NUT, SELF-LOCKING(1KH)

90185-12134-00

—

$10.11

In stock

32

BOLT, HEXAGON

97027-12055-00

—
Out of stock

33

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

34

WASHER, PLATE (707)

90201-13645-00

—

$5.77

In stock
