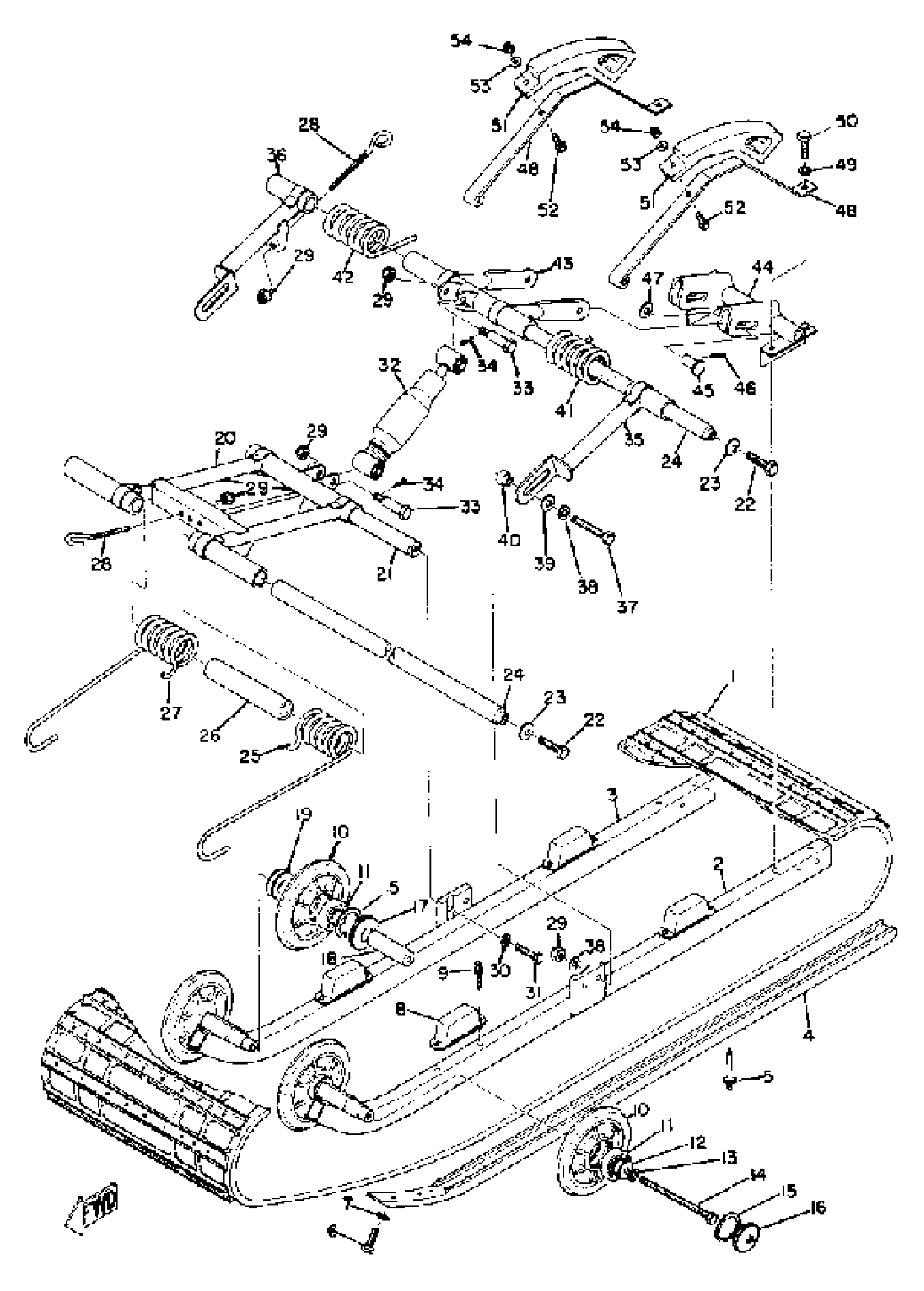

Find the part on the Track - Suspension Wheel diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR433C Track - Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

(856-47110-00-00)

1
Out of stock

2

FRAME, SLIDING 1

(856-47411-00-00)

1
Out of stock

3

FRAME, SLIDING 2

(856-47412-00-00)

1
Out of stock

4

RUNNER, SLIDING 1

856-47421-00-00

1
Out of stock

5

RIVET, BLIND

(90267-40010-00)

1
Out of stock

6

BOLT (682)

97013-08025-00

1

$6.80

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

DAMPER 1

(856-47456-00-00)

1
Out of stock

9

RIVET, BLIND

90267-40005-00

1
Out of stock

10

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

11

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

12

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOLT, HEXAGON

97027-08140-00

—
Out of stock

15

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

16

CAP, WHEEL

818-47317-01-00

1
Out of stock

17

CAP, WHEEL

(829-47317-00-00)

1
Out of stock

18

SHAFT 1

(856-47465-00-00)

1
Out of stock

19

ROLLER

(856-47429-00-00)

1
Out of stock

20

ARM, PIVOT 1

(856-47331-00-00)

1
Out of stock

21

SHAFT 2

(856-47475-00-00)

1
Out of stock

22

BOLT

(90101-08024-00)

1
Out of stock

23

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

24

SHAFT, PIVOT

(856-47337-00-00)

1
Out of stock

25

BRACKET, REAR 2

(857-47425-00-00)

1
Out of stock

26

TUBE, COPPER

(90443-28003-00)

1
Out of stock

27

BRACKET, REAR 1

(857-47426-00-00)

1
Out of stock

28

HOOK 1

(856-47446-00-00)

1
Out of stock

29

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

31

BOLT

97014-08040-00

—

$5.26

In stock

32

SHOCK ABSORBER

(856-47480-00-00)

1
Out of stock

33

BOLT

90109-08168-00

1
Out of stock

34

PIN, COTTER

91490-25020-00

—

$2.94

In stock

35

ARM, PIVOT 3

(856-47333-00-00)

1
Out of stock

36

ARM, PIVOT 4

(856-47334-00-00)

1
Out of stock

37

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

38

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

39

WASHER, PLATE (4N0)

90201-126A7-00

—

$6.28

In stock

40

COLLAR

(90387-08302-00)

1
Out of stock

41

SPRING 3

(856-47427-00-00)

1
Out of stock

42

SPRING 4

(856-47428-00-00)

1
Out of stock

43

ARM, PIVOT 2

(856-47332-00-00)

1
Out of stock

44

BAR, SUSPENSION

(856-47451-00-00)

1
Out of stock

45

SLIDER 3

(856-47443-00-00)

1
Out of stock

46

PIN, COTTER

91490-30030-00

—

$7.15

In stock

47

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

48

STOPPER 1

(856-47495-00-00)

1
Out of stock

49

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

50

BOLT

97013-08035-00

—

$4.80

In stock

51

RUNNER, SLIDING 2

(856-47422-00-00)

1
Out of stock

52

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

53

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

54

NUT, NYLON

95707-06300-00

—

$3.20

In stock
