1973 Yamaha SR433C SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

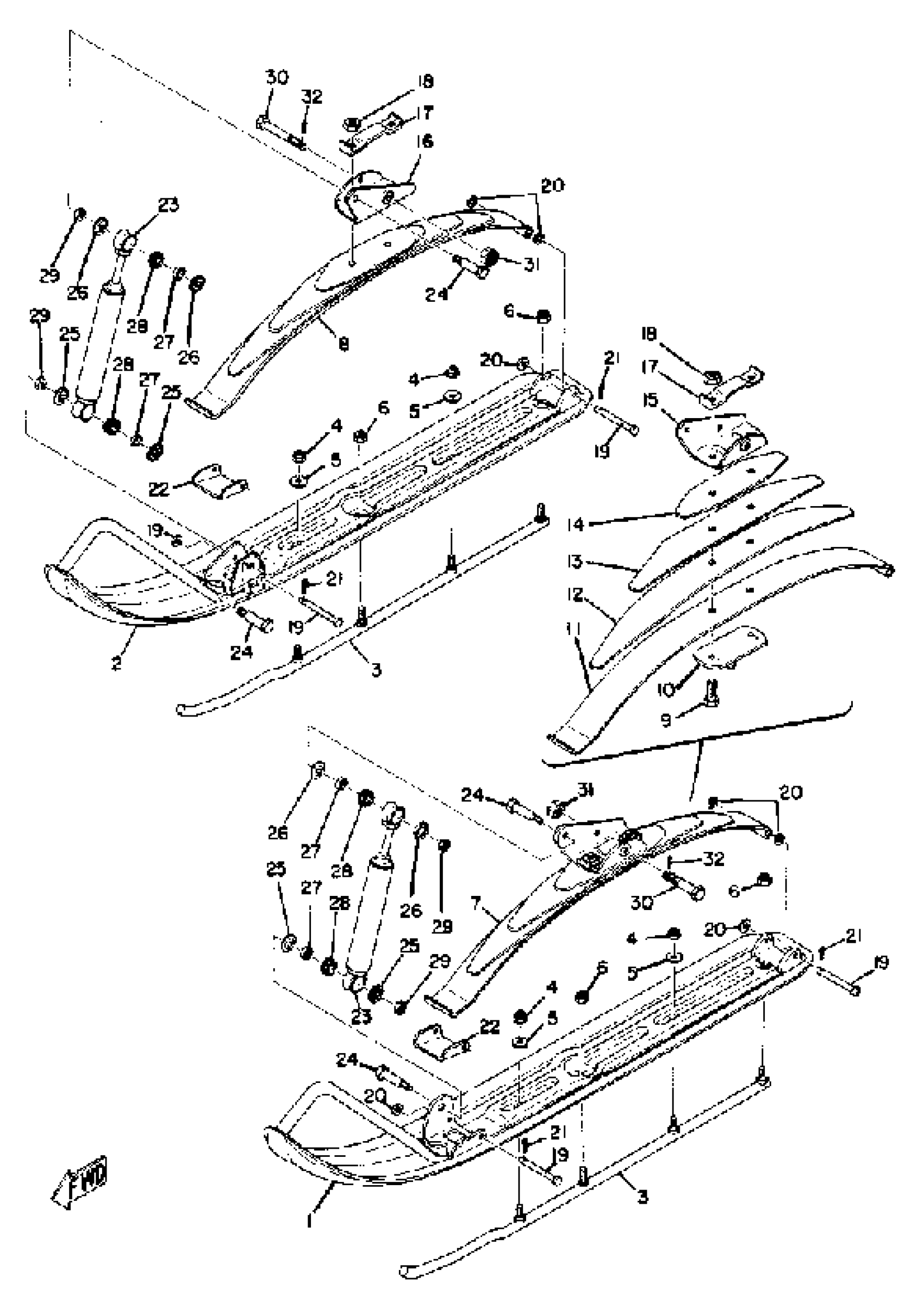

1973 Yamaha SR433C SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(856-23710-01-00)

1
Out of stock

2

SKI 2

(856-23720-01-00)

1
Out of stock

3

RUNNER 1

(856-23731-01-00)

1
Out of stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

NUT, U

95617-08100-00

1

$6.78

In stock

7

SPRING ASSEMBLY 1

(836-23760-00-00)

1
Out of stock

8

SPRING ASSEMBLY 2

(836-23770-00-00)

1
Out of stock

9

. BOLT

90101-10060-00

1
Out of stock

10

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

11

LEAF 1

(810-23761-00-00)

1
Out of stock

12

LEAF 2

(810-23762-00-00)

1
Out of stock

13

LEAF 3

(810-23763-00-00)

1
Out of stock

14

LEAF 5

(810-23771-00-00)

1
Out of stock

15

SADDLE 1

(829-23766-00-00)

1
Out of stock

16

SADDLE 2

(829-23776-00-00)

1
Out of stock

17

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

18

NUT(6TD)

95337-10600-00

—

$6.98

In stock

19

PIN, CLEVIS

90240-08019-00

1
Out of stock

20

WASHER, PLATE(49E)

90201-087H6-00

—

$1.62

In stock

21

PIN COTTER

91490-30025-00

—
Out of stock

22

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

23

SHOCK ABSORBER ASSEMBLY

(856-23350-00-00)

1
Out of stock

24

BOLT

(90109-08014-00)

1
Out of stock

25

WASHER, CONICAL SPR

(90208-12006-00)

1
Out of stock

26

WASHER, CONICAL SPR

(90208-09005-00)

1
Out of stock

27

COLLAR

(90387-12104-00)

1
Out of stock

28

BUSH, SPEC''L RUBBER

(90385-12013-00)

1
Out of stock

29

NUT, U

95617-08100-00

1

$6.78

In stock

30

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

31

NUT, SLOTTED

95306-10900-00

1
Out of stock

32

PIN, COTTER

91490-20025-00

—

$1.31

In stock
