1973 Yamaha SR433C Seat - Bumper Diagram

← All diagrams

Find the part on the Seat - Bumper diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

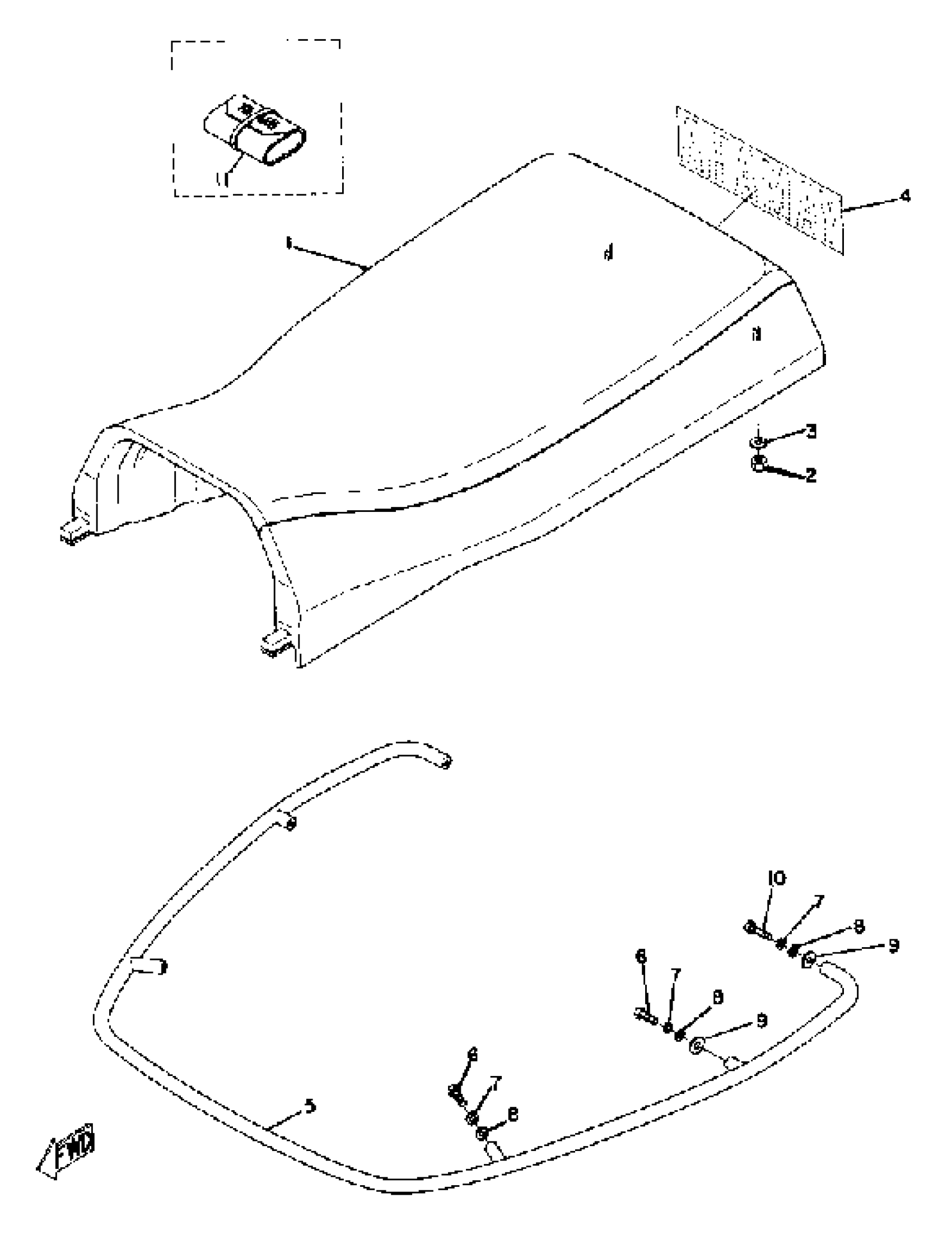

1973 Yamaha SR433C Seat - Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(856-24730-01-00)

1
Out of stock

2

NUT, U

95617-08100-00

1

$6.78

In stock

3

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

4

EMBLEM 2

(856-77352-00-00)

1
Out of stock

5

FRONT BUMPER

(856-77510-00-00)

1
Out of stock

6

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

WASHER, PLATE

(90201-08320-00)

1
Out of stock

10

BOLT

97014-08040-00

1

$5.26

In stock

11

TOOL KIT

(856-28100-10-00)

1
Out of stock
