1973 Yamaha SR433C Disc Brake - Caliper Diagram

← All diagrams

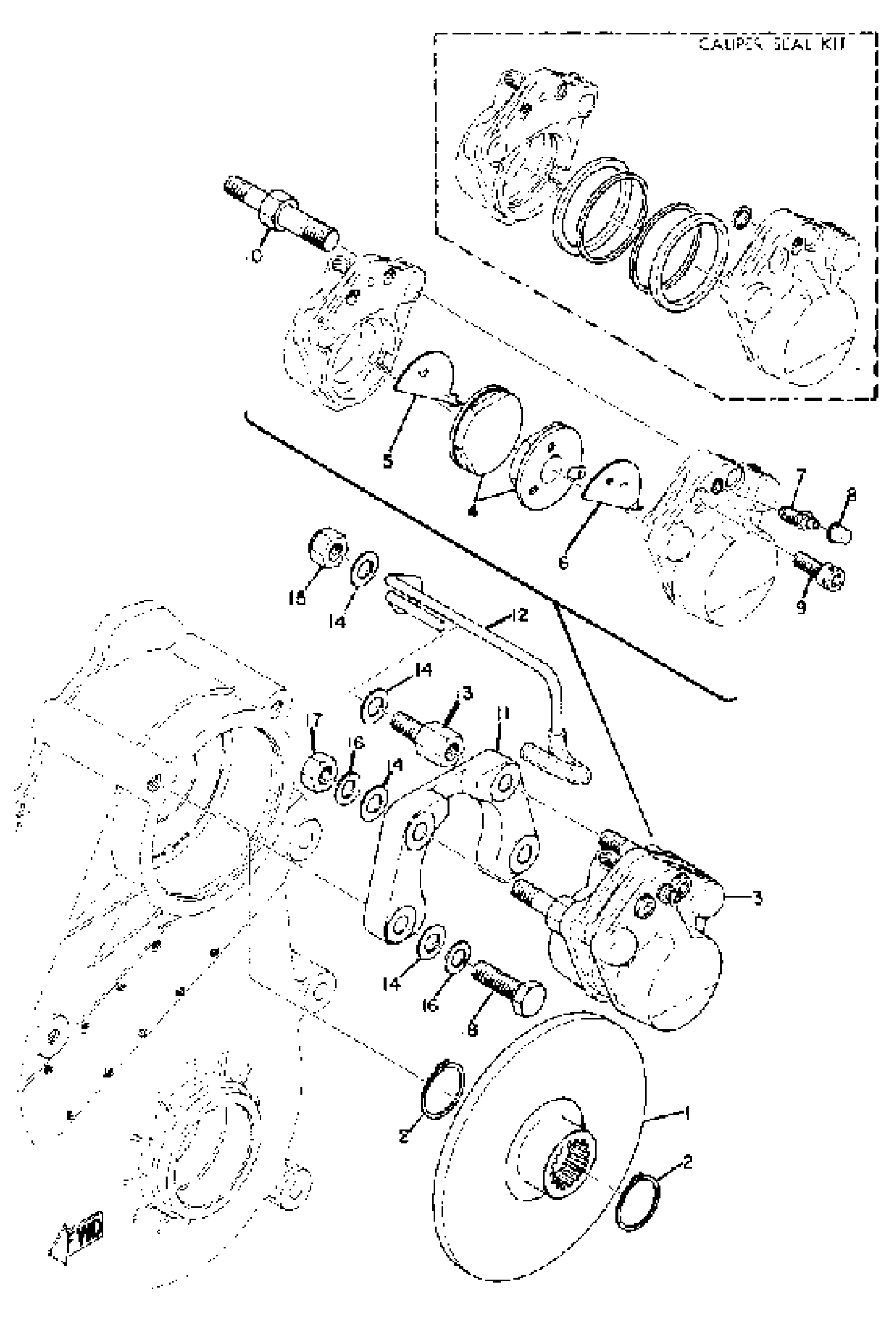

Find the part on the Disc Brake - Caliper diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR433C Disc Brake - Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

(856-25831-01-00)

1
Out of stock

1

CALIPER SEAL KIT

856-W0047-00-00

1

$76.20

In stock

2

CIRCLIP, S-TYPE

(93410-29033-00)

1
Out of stock

3

CALIPER ASSEMBLY

(856-25810-01-00)

1
Out of stock

4

PAD, CALIPER 2

(856-25811-00-00)

1
Out of stock

5

. SHIM, CALIPER (306-25827-02)

306-25827-04-00

1
Out of stock

6

. SHIM, CALIPER (306-25828-02)

409-25828-50-00

1
Out of stock

7

. SCREW, BLEED

306-25824-00-00

1
Out of stock

8

CAP

306-25825-01-00

1

$8.70

In stock

9

. BOLT 3

306-25826-01-00

1
Out of stock

10

BOLT 2

(856-25822-00-00)

1
Out of stock

11

BRACKET, CALIPER

(856-25819-00-00)

1
Out of stock

12

HOLDER, WIRE

(857-23874-00-00)

1
Out of stock

13

NUT, SPEC''L SHAPE

(90179-10003-00)

1
Out of stock

14

1

$3.00

In stock

15

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

16

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

17

NUT(3BM)

95314-10600-00

—

$1.74

In stock

18

BOLT(N02)

97070-10035-00

—

$11.38

In stock
