1972 Yamaha SR433B (SR433B) Louver Diagram

← All diagrams

Find the part on the Louver diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

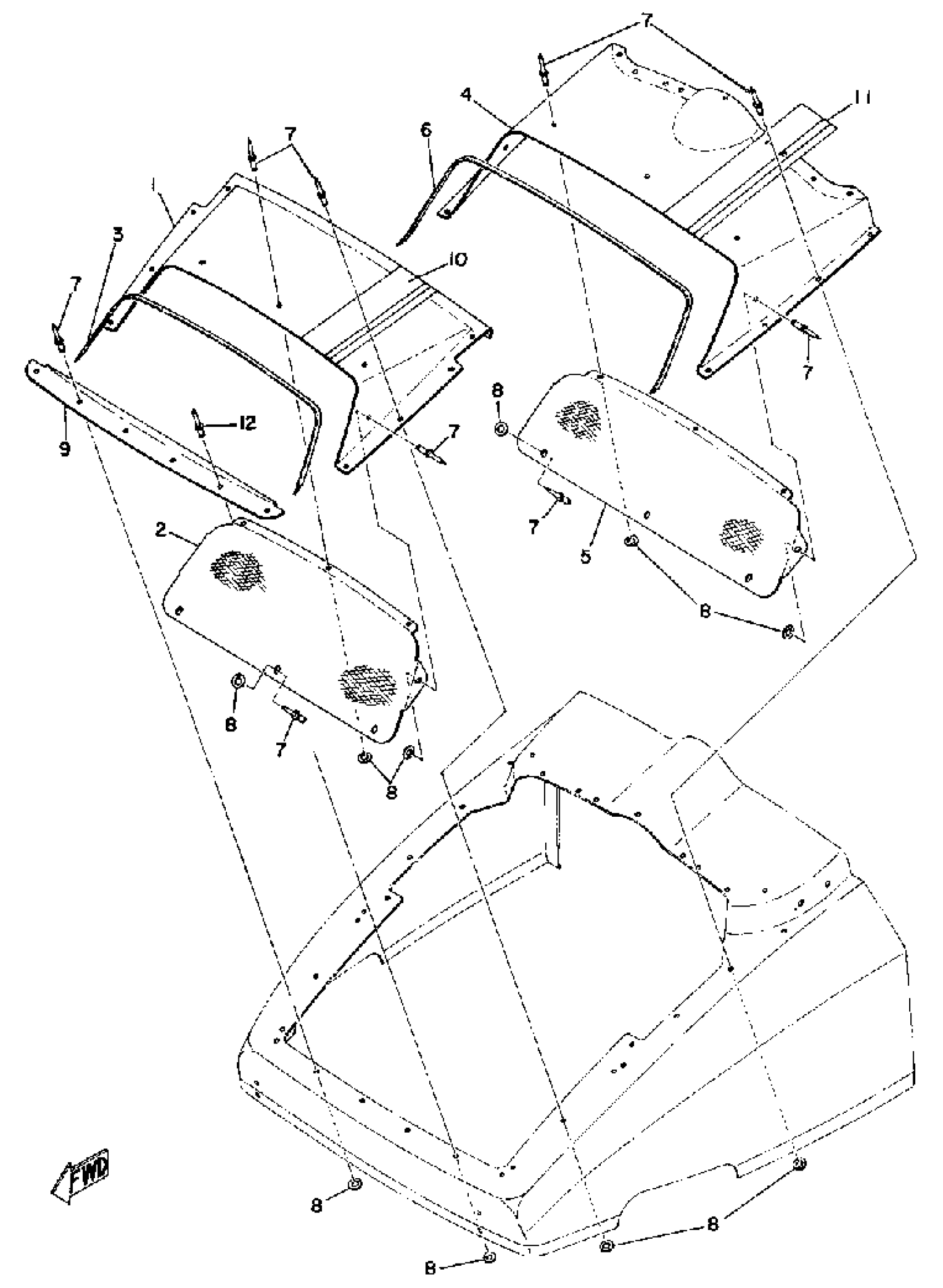

1972 Yamaha SR433B (SR433B) Louver Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOUVER 1

(829-77131-00-00)

1
Out of stock

2

LOUVER 3

(829-77133-00-00)

1
Out of stock

3

TRIM 3

(829-77167-00-00)

1
Out of stock

4

LOUVER 2

(829-77132-00-00)

1
Out of stock

5

LOUVER 4

(829-77134-00-00)

1
Out of stock

6

TRIM 4

(829-77168-00-00)

1
Out of stock

7

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

8

1

$2.62

In stock

9

GUIDE 2

(829-77124-00-00)

1
Out of stock

10

ORNAMENT 4

(829-77113-00-00)

1
Out of stock

11

ORNAMENT 5

(829-77114-00-00)

1
Out of stock

12

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock
