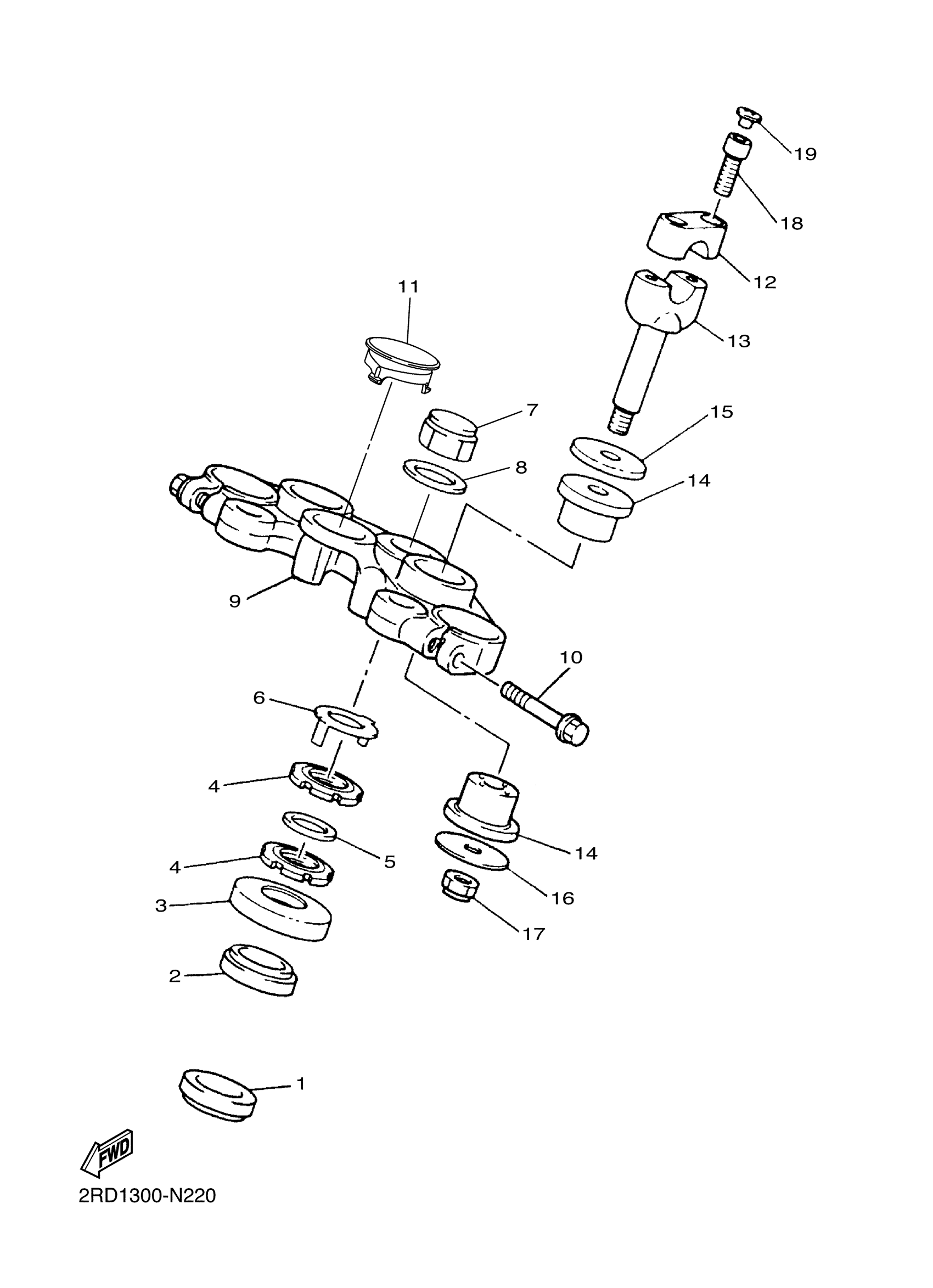

Yamaha SR400JL (SR400) 2RDG 2018 STEERING Diagram

#

Description
Price

1

BEARING(4HC)

93399-99942-00

$76.95

2

BEARING

93399-99949-00

$47.41

3

COVER BALL RACE

10V-23416-01-00

Unavailable

4

NUT

90179-25004-00

$19.41

5

WASHER, PLATE (26H)

90202-26142-00

$7.52

6

WASHER, SPECIAL

26H-23418-01-00

$11.84

7

NUT, CROWN(4FM)

90176-22081-00

$27.98

8

WASHER, PLATE

90201-22018-00

$3.82

9

CROWN, HANDLE

3HT-23435-10-00

Unavailable

10

BOLT, FLANGE(4KG)

95024-08040-00

$5.75

11

CAP, SWITCH

36P-82552-00-00

$11.73

12

HOLDER, HANDLE UPPER

4H7-23441-01-38

Unavailable

13

HOLDER, HANDLE LOWER

4AA-23442-01-38

Unavailable

14

BUSHING, RUBBER

1T4-23434-00-00

$22.52

15

WASHER

90209-12008-00

$6.42

16

WASHER, PLATE

90201-10026-00

Unavailable

17

NUT, U

95617-10100-00

Unavailable

18

BOLT, SOCKET

91314-08035-00

Unavailable

19

PLUG(42X)

90338-08163-00

Unavailable
