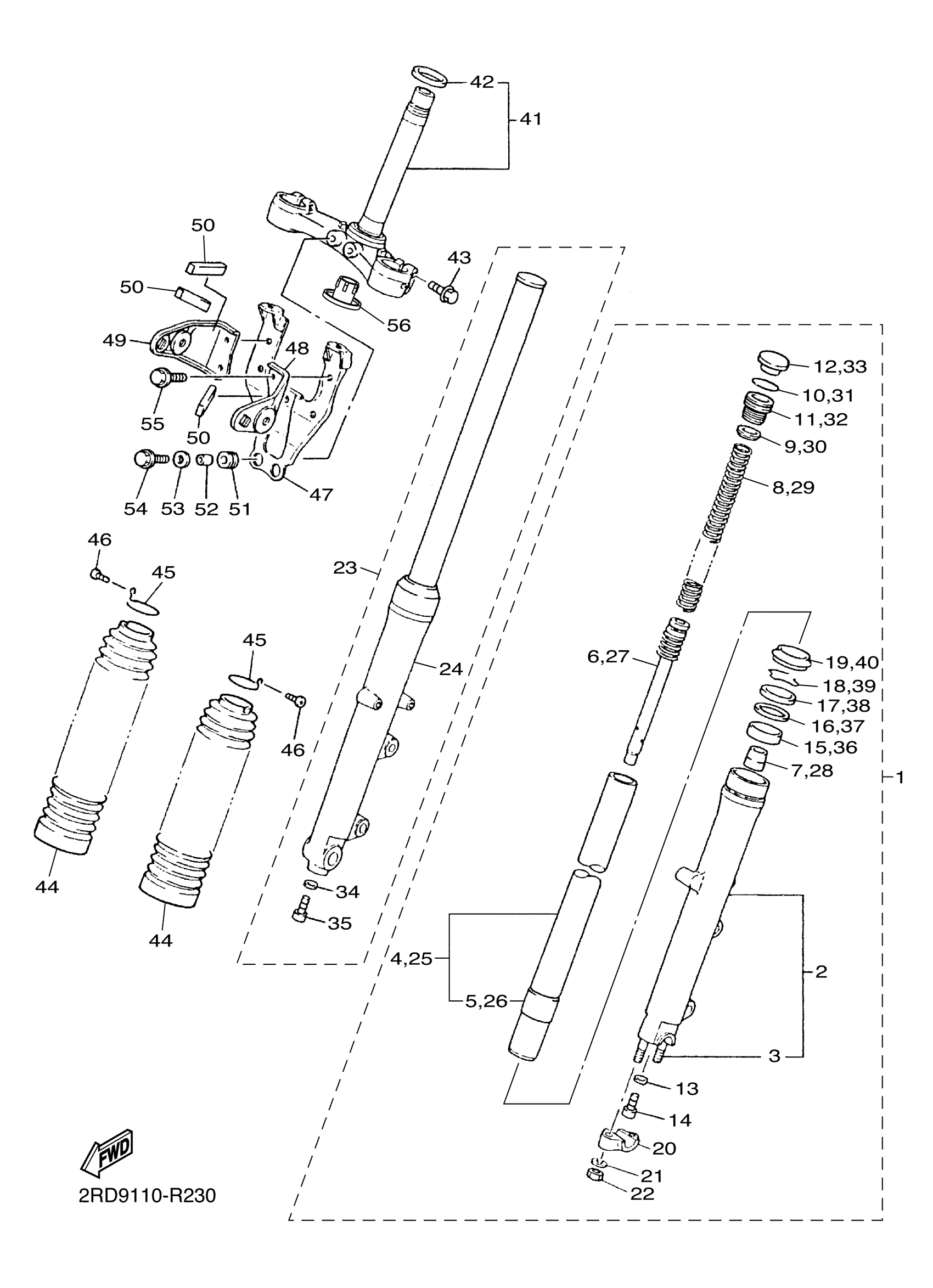

Find the part on the Front Fork diagram for your 2017 Yamaha SR400 CA (SR400HCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha SR400 CA (SR400HCB) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

3HT-23102-11-00

—
Out of stock

2

TUBE, OUTER (LEFT)

3HT-23126-10-00

—
Out of stock

3

BOLT, STUD (278)

90116-08261-00

1
Out of stock

4

INNER TUBE COMP.1

3HT-23110-10-00

—
Out of stock

5

PISTON, FRONT FORK

5JX-23171-00-00

1

$19.97

In stock

6

CYLINDER COMP., FRONT FORK

3HT-23170-10-00

—
Out of stock

7

SPINDLE, TAPER

5JX-23173-00-00

—
Out of stock

8

SPRING, FRONT FORK

3HT-23141-10-00

—
Out of stock

9

WASHER, SPRING UPPER

1JN-23149-00-00

—
Out of stock

10

RING, CAP BOLT

2F0-23114-00-00

1
Out of stock

11

BOLT, CAP

2J4-23111-30-00

—
Out of stock

12

CAP

1T3-23168-50-00

1
Out of stock

13

GASKET

509-23158-L0-00

1

$14.34

In stock

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

15

METAL, SLIDE 1

5JX-23125-00-00

1

$16.89

In stock

16

WASHER, SPRING UPPER

5K5-23149-00-00

—

$7.42

In stock

17

OIL SEAL

5JX-23145-00-00

—

$13.06

In stock

18

RING, SNAP

4A1-23156-00-00

—

$4.74

In stock

19

SEAL, DUST

5JX-23144-00-00

—

$14.25

In stock

20

HOLDER,AXLE

341-23167-50-00

—
Out of stock

21

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

22

NUT

3HT-23357-10-00

—
Out of stock

23

FRONT FORK ASSY (R.H)

3HT-23103-11-00

—
Out of stock

24

TUBE, OUTER (RIGHT)

3HT-23136-10-00

—
Out of stock

25

INNER TUBE COMP.1

3HT-23110-10-00

—
Out of stock

26

PISTON, FRONT FORK

5JX-23171-00-00

1

$19.97

In stock

27

CYLINDER COMP., FRONT FORK

3HT-23170-10-00

—
Out of stock

28

SPINDLE, TAPER

5JX-23173-00-00

—
Out of stock

29

SPRING, FRONT FORK

3HT-23141-10-00

—
Out of stock

30

WASHER, SPRING UPPER

1JN-23149-00-00

—
Out of stock

31

RING, CAP BOLT

2F0-23114-00-00

1
Out of stock

32

BOLT, CAP

2J4-23111-30-00

—
Out of stock

33

CAP

1T3-23168-50-00

1
Out of stock

34

GASKET

509-23158-L0-00

1

$14.34

In stock

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

36

METAL, SLIDE 1

5JX-23125-00-00

1

$16.89

In stock

37

WASHER, SPRING UPPER

5K5-23149-00-00

—

$7.42

In stock

38

OIL SEAL

5JX-23145-00-00

—

$13.06

In stock

39

RING, SNAP

4A1-23156-00-00

—

$4.74

In stock

40

SEAL, DUST

5JX-23144-00-00

—

$14.25

In stock

41

UNDER BRACKET COMP.

3HT-23340-10-00

—
Out of stock

42

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

43

BOLT, FLANGE(4FM)

95814-08035-00

—

$6.68

In stock

44

BOOT

1JN-23191-00-00

—
Out of stock

45

BAND

1JN-23192-00-00

—
Out of stock

46

SCREW, PAN HEAD(3LA)

98517-05010-00

—

$3.52

In stock

47

COVER, UPPER 1

2J2-23121-04-00

—
Out of stock

48

COVER, HEADLIGHT

3HT-23131-00-00

—
Out of stock

49

STAY, HEADLIGHT

3HT-23174-00-00

—
Out of stock

50

DAMPER 1

3HT-2317J-01-00

—
Out of stock

51

GROMMET (431)

90480-14052-00

—

$4.40

In stock

52

COLLAR (8H6)

90387-07573-00

—

$7.22

In stock

53

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

54

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

55

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

56

COVER, LOWER 1

4KM-23123-01-00

—

$12.27

In stock
