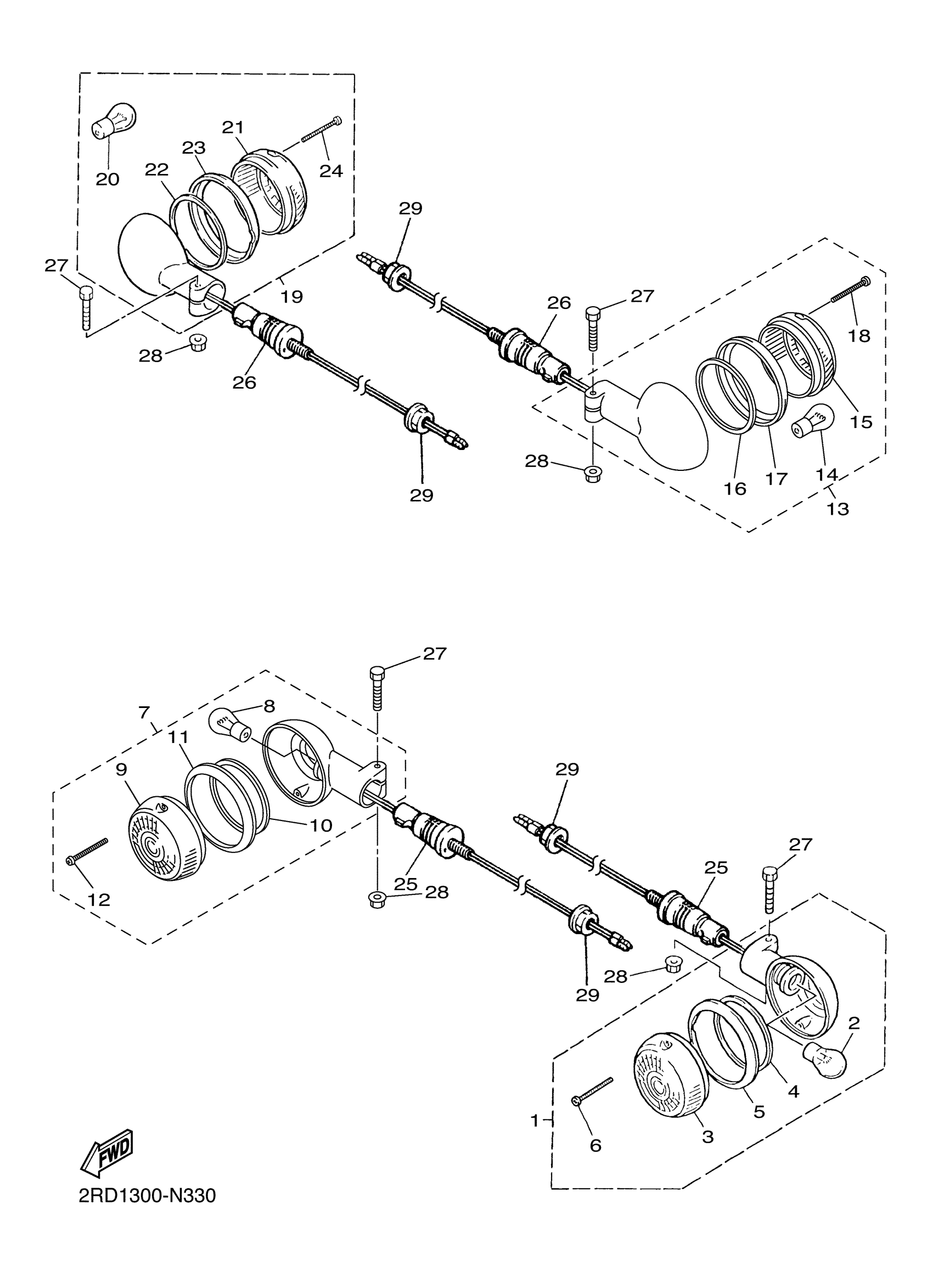

Yamaha SR400HCB (SR400 CA) 2RDE 2017 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGH

2RD-83310-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

42X-83312-10-00

$12.00

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGH

2RD-83320-00-00

$42.00

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

9

LENS, FLASHER

42X-83312-20-00

$12.08

10

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

11

LENS, RIM

1D6-83363-10-00

$21.82

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

$97.27

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

42X-83312-20-00

$12.08

16

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

17

LENS, RIM

1D6-83363-10-00

$21.82

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

REAR FLASHER LIGHT ASSY 2

1AA-83340-K9-00

Unavailable

20

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

21

LENS, FLASHER

42X-83312-10-00

$12.00

22

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

23

LENS, RIM

1D6-83363-00-00

$21.88

24

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

25

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

26

STAY, FLASHER 2

1AA-83328-00-00

Unavailable

27

BOLT, HEXAGON

97017-06030-00

Unavailable

28

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

29

NUT(3GG)

90179-12588-00

Unavailable
