2017 Yamaha SR400 CA (SR400HCB) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2017 Yamaha SR400 CA (SR400HCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

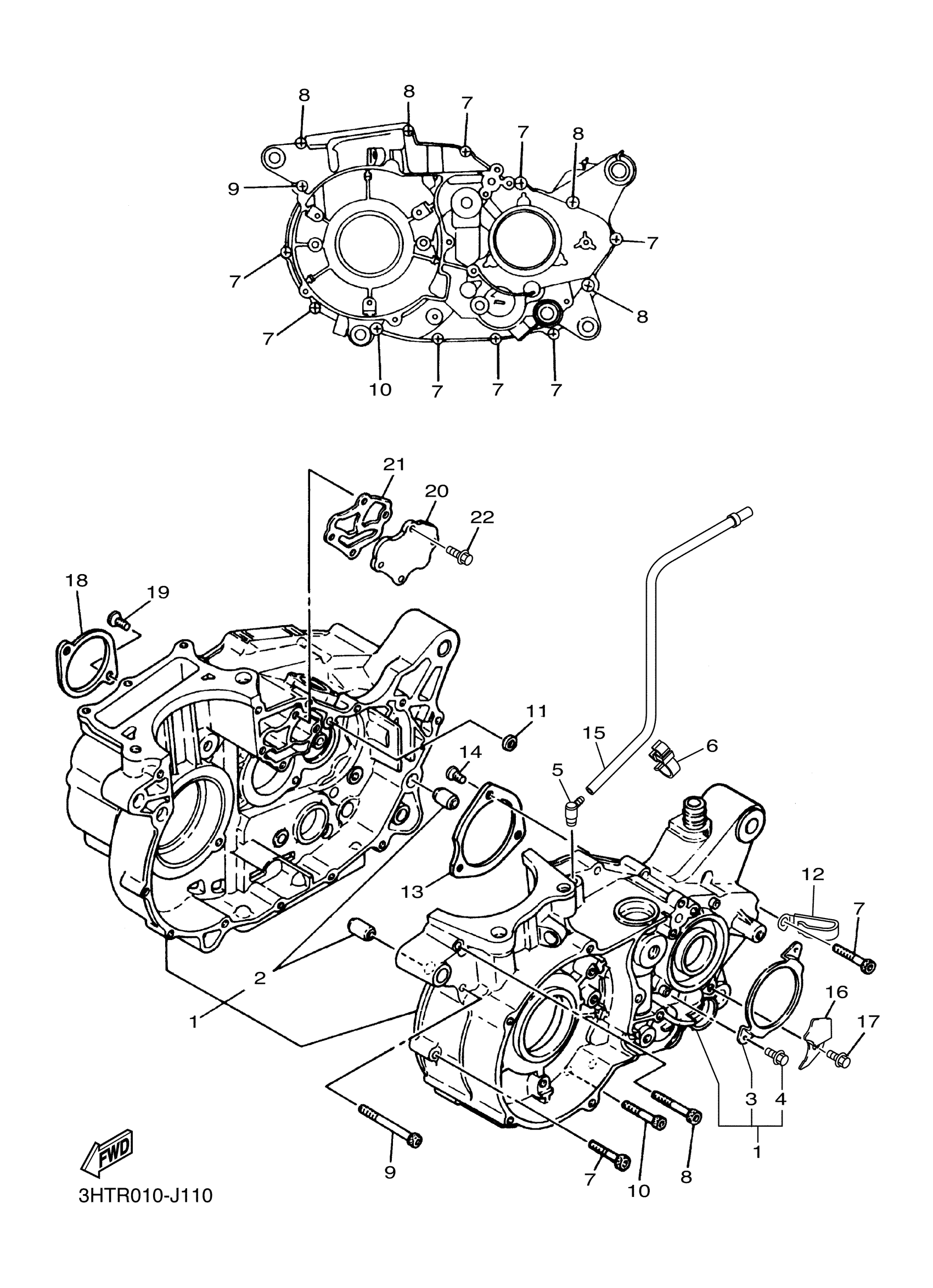

2017 Yamaha SR400 CA (SR400HCB) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

3HT-15100-R9-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PLATE, COVER

583-17471-01-00

1
Out of stock

4

BOLT, FLANGE

95022-06012-00

1

$3.00

In stock

5

BREATHER

5UG-15371-00-00

1

$33.79

In stock

6

CLAMP

90464-18013-00

—

$2.86

In stock

7

BOLT, SOCKET

91314-06035-00

1

$4.70

In stock

8

BOLT, SOCKET

91314-06045-00

1

$6.17

In stock

9

BOLT, SOCKET

91314-06065-00

1
Out of stock

10

BOLT,SOCKET

91314-06055-00

1
Out of stock

11

GASKET (583 CRANKCASE)

90430-09121-00

1
Out of stock

12

CLAMP(51Y)

90465-08277-00

—
Out of stock

13

PLATE, BEARING COVER

363-15381-00-00

1
Out of stock

14

SCREW

90149-05021-00

—
Out of stock

15

HOSE, BREATHER 1

3HT-1531A-R0-00

—
Out of stock

16

CLAMP

90465-10021-00

—
Out of stock

17

BOLT, FLANGE

95022-06012-00

1

$3.00

In stock

18

PLATE, BEARING COVER

583-15383-00-00

—
Out of stock

19

SCREW, COUNTERSUNK

90151-06023-00

—

$6.52

In stock

20

COVER, OIL PUMP 2

583-15426-10-00

—
Out of stock

21

GASKET 2

3HT-15466-00-00

—
Out of stock

22

BOLT, FLANGE

95022-06016-00

—

$3.32

In stock
