2016 Yamaha SR400 CA (SR400GCB) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

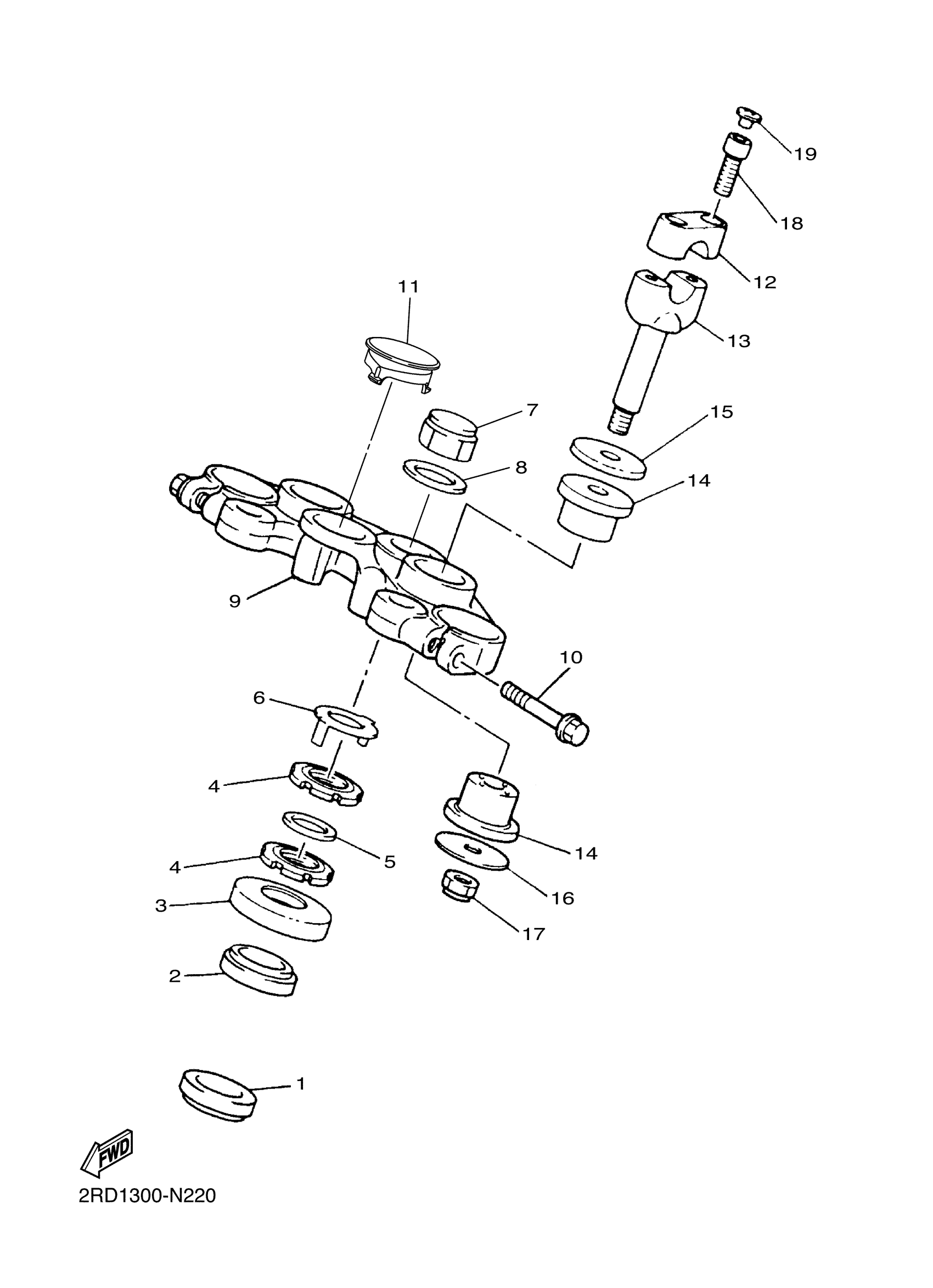

2016 Yamaha SR400 CA (SR400GCB) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4HC)

93399-99942-00

1

$78.14

In stock

2

BEARING

93399-99949-00

1

$50.02

In stock

3

COVER BALL RACE

10V-23416-01-00

—
Out of stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

6

WASHER, SPECIAL

26H-23418-01-00

1

$12.68

In stock

7

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

8

WASHER, PLATE

90201-22018-00

1

$4.11

In stock

9

CROWN, HANDLE

3HT-23435-10-00

—
Out of stock

10

BOLT, FLANGE(4KG)

95024-08040-00

1

$6.17

In stock

11

CAP, SWITCH

36P-82552-00-00

1

$12.58

In stock

12

HOLDER, HANDLE UPPER

4H7-23441-01-38

—
Out of stock

13

HOLDER, HANDLE LOWER

4AA-23442-01-38

—
Out of stock

14

BUSHING, RUBBER

1T4-23434-00-00

1
Out of stock

15

WASHER

90209-12008-00

1
Out of stock

16

WASHER, PLATE

90201-10026-00

—
Out of stock

17

NUT, U

95617-10100-00

—
Out of stock

18

BOLT, SOCKET

91314-08035-00

—
Out of stock

19

PLUG(42X)

90338-08163-00

—
Out of stock
