2015 Yamaha SR400 (SR400FGY) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2015 Yamaha SR400 (SR400FGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

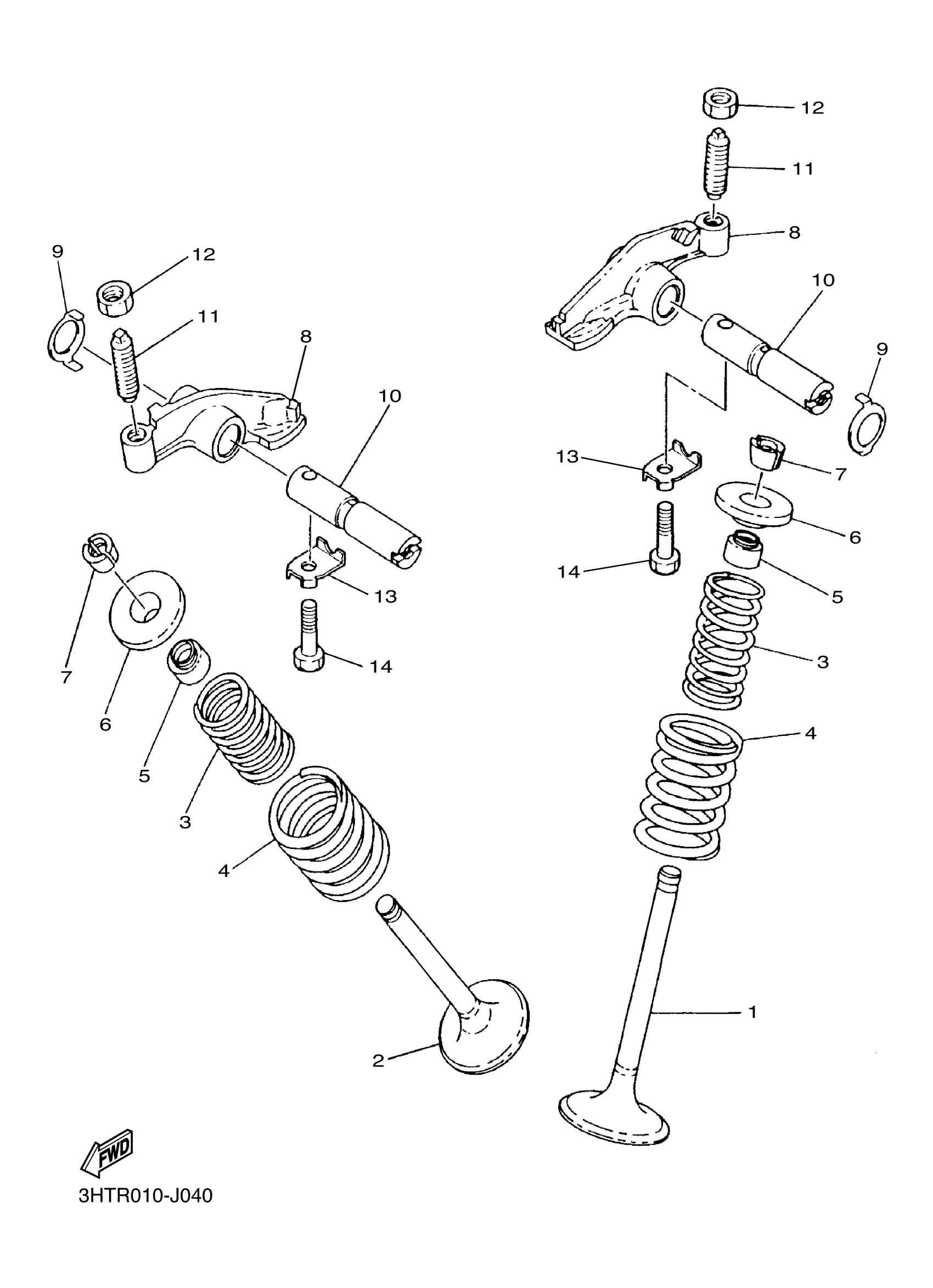

2015 Yamaha SR400 (SR400FGY) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

2J2-12111-01-00

1
Out of stock

2

VALVE, EXHAUST

5A8-12121-00-00

1
Out of stock

3

SPRING, COMPRESSION (1T1)

90501-31454-00

1
Out of stock

4

SPRING, COMPRESSION (1T1)

90501-44455-00

1
Out of stock

5

SEAL, VALVE STEM OIL

341-12119-02-00

1
Out of stock

6

RETAINER, VALVE SPRING

256-12117-02-00

1
Out of stock

7

LOCK, VALVE SPRING (447)

341-12118-00-00

1
Out of stock

8

ARM, VALVE ROCKER

3HT-12151-00-00

1
Out of stock

9

WASHER, WAVE

90206-12002-00

1
Out of stock

10

SHAFT, ROCKER 2

583-12156-02-00

1
Out of stock

11

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

1
Out of stock

12

NUT, HEXAGON

90170-08173-00

1

$6.71

In stock

13

WASHER, LOCK (3Y3)

90215-06168-00

1
Out of stock

14

SCREW 341272170000

90153-06008-00

1

$5.75

In stock
