2015 Yamaha SR400 (SR400FGY) Seat Diagram

← All diagrams

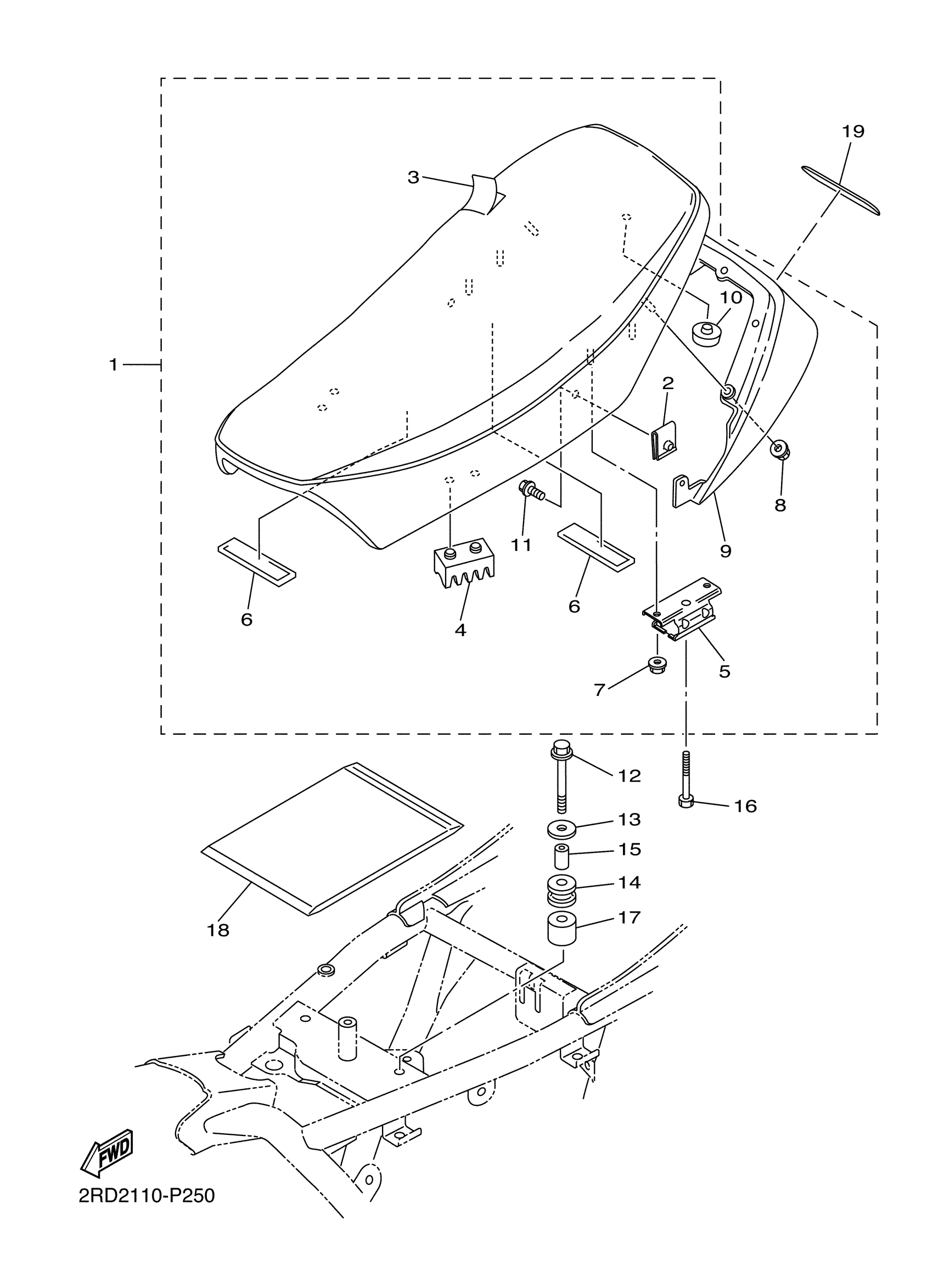

Find the part on the Seat diagram for your 2015 Yamaha SR400 (SR400FGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha SR400 (SR400FGY) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSY

3HT-24730-50-P0

1
Out of stock

2

NUT, SPRING

90183-051A0-00

1
Out of stock

3

COVER, SEAT

3HT-24731-51-00

—
Out of stock

4

DAMPER, SEAT 1

2J2-24723-00-00

—
Out of stock

5

DAMPER, SEAT 2

2J2-24724-01-00

—
Out of stock

6

HOOK

4KG-2814E-10-00

1
Out of stock

7

NUT, U FLANGE

95604-06200-00

1
Out of stock

8

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

9

COVER, TAIL

2J2-24756-00-PC

—
Out of stock

10

PAD, SEAT

22W-24741-00-00

1
Out of stock

11

BOLT, WITH WASHER

90119-05015-00

1
Out of stock

12

BOLT, FLANGE

95812-06055-00

1
Out of stock

13

WASHER PLATE 248217570000

90201-06074-00

1
Out of stock

14

DAMPER, SEAT

2J2-24737-00-00

1
Out of stock

15

COLLAR, LEVER 1

36Y-83913-01-00

1
Out of stock

16

BOLT, HEXAGON

90101-08439-00

—
Out of stock

17

SPACER 1

3HT-24725-00-00

—
Out of stock

18

POUCH

4KG-28186-00-00

—
Out of stock

19

EMBLEM 1

3LS-21781-00-00

—
Out of stock
