2015 Yamaha SR400 (SR400FGY) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2015 Yamaha SR400 (SR400FGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

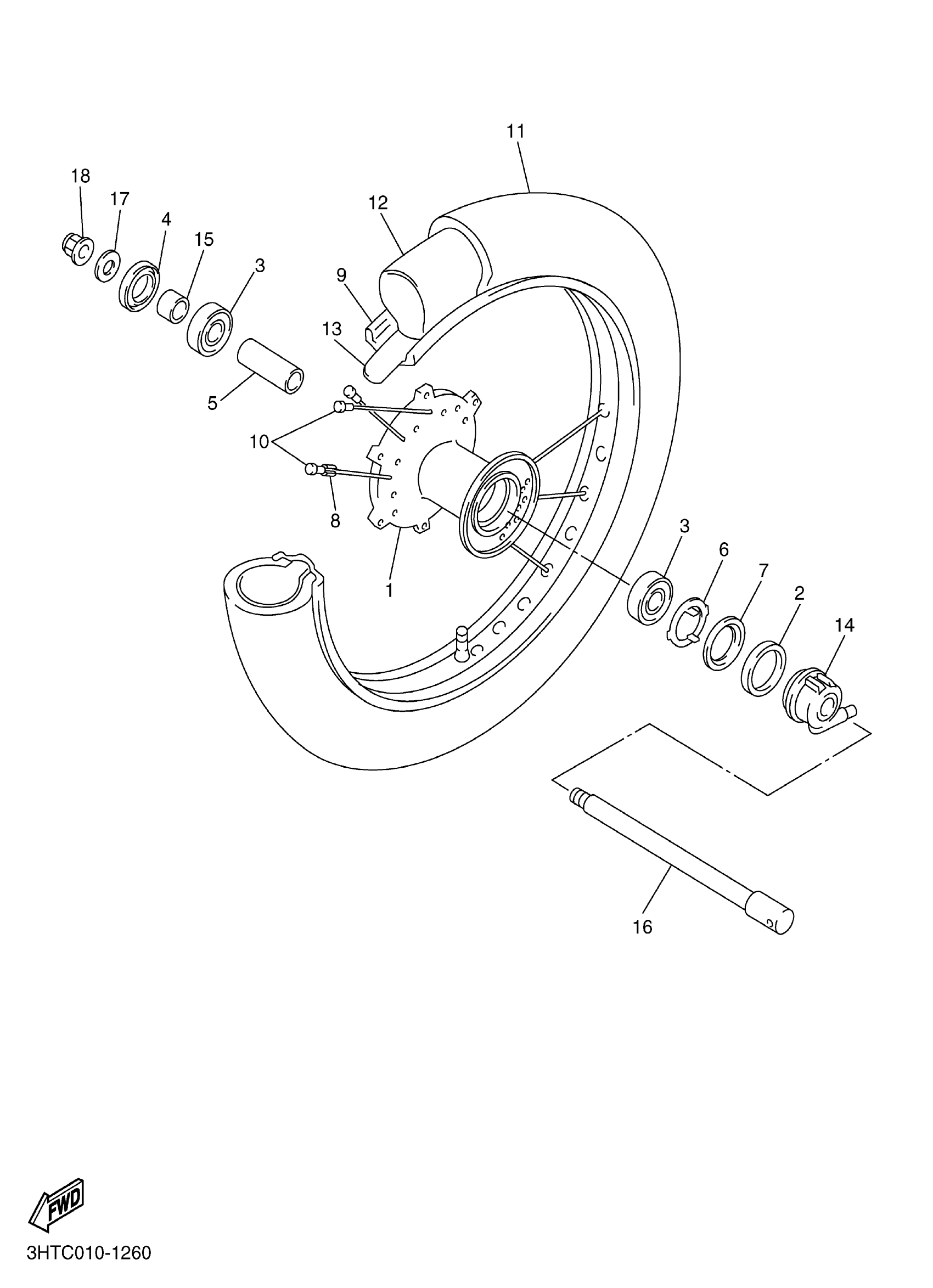

2015 Yamaha SR400 (SR400FGY) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

3JB-25111-00-00

—
Out of stock

2

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

3

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

4

OIL SEAL(39X)

93106-28023-00

1

$10.62

In stock

5

SPACER 341251170100

90560-17126-00

1
Out of stock

6

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

8

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

9

RIM (1.85-18)

94418-18003-00

—
Out of stock

10

SPOKE SET, FRONT

5JX-25104-00-00

—
Out of stock

11

TIRE (90/100-18M/C 54S BT45F)

94109-18015-00

1
Out of stock

12

TUBE

94209-18003-00

1
Out of stock

13

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

14

GEAR UNIT ASSY

1FK-25190-02-00

1
Out of stock

15

COLLAR(2GV)

90387-177R1-00

1
Out of stock

16

AXLE, WHEEL

99999-04072-00

—
Out of stock

17

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

18

NUT, SELF-LOCKING(4TR)

95604-14200-00

—
Out of stock
