- SR400FGY (SR400) 2RD2 2015
ELECTRICAL 1

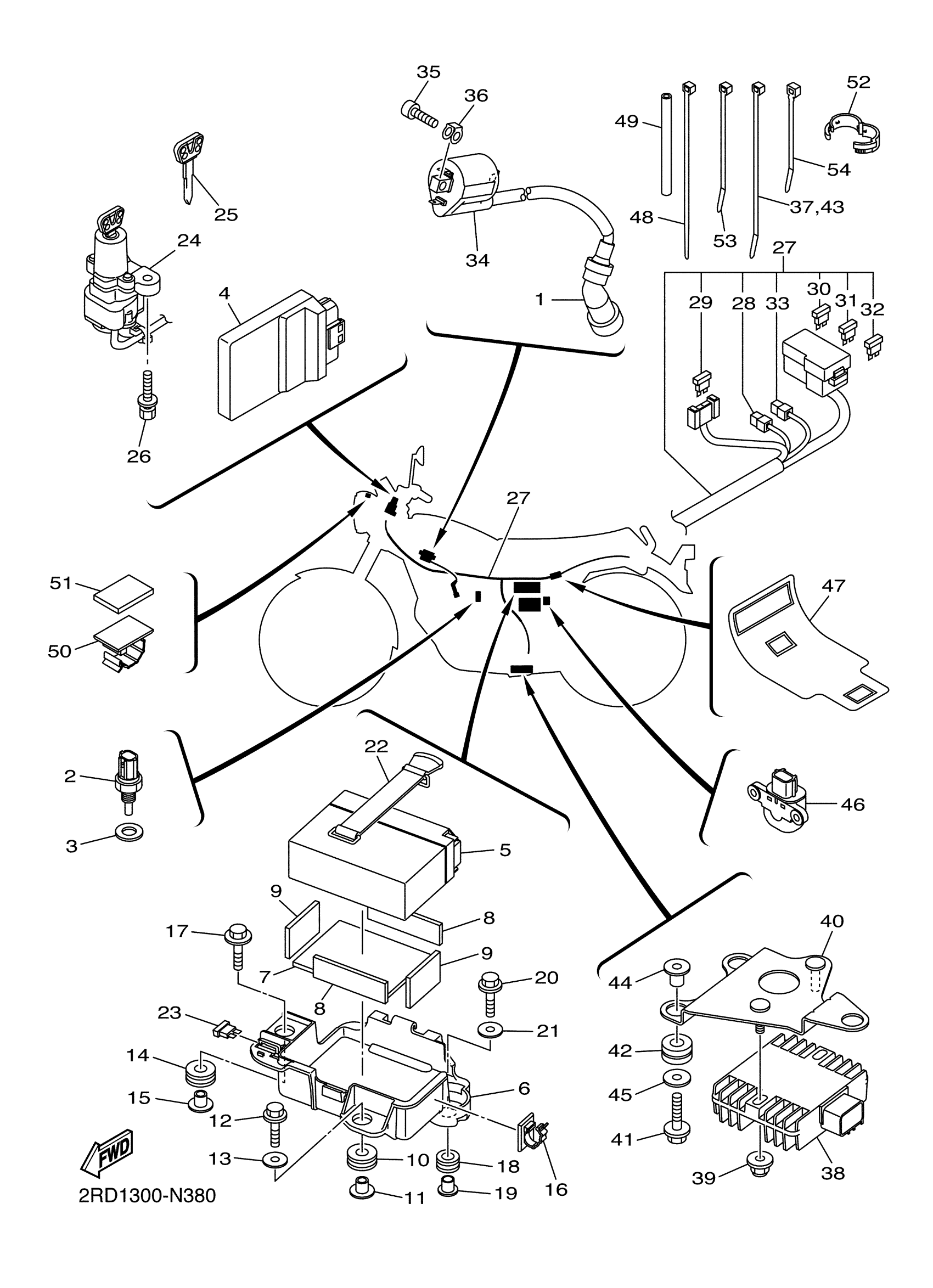

2015 Yamaha SR400 (SR400FGY) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 2015 Yamaha SR400 (SR400FGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
THERMO UNIT
52B-H3591-00-00
4
ENGINE CONTROL UNIT ASSY
2RD-8591A-01-00
6
BOX, BATTERY 1
3HT-8212B-00-00
7
DAMPER, PLATE
90520-04005-00
9
DAMPER
5TG-84553-00-00
10
GROMMET
90480-16004-00
14
GROMMET
90480-16004-00
19
COLLAR(3LN)
90387-085W0-00
23
FUSE (12V 30A)
1AE-82151-00-00
24
MAIN SWITCH STEERI
2RD-82501-10-00
27
WIRE HARNESS ASSY
2RD-82590-10-00
29
FUSE (12V 30A)
1AE-82151-00-00
34
IGNITION COIL ASSY
3D8-82310-11-00
36
DAMPER, IGNITION COIL
4BR-82317-00-00
37
BAND
1UA-82591-00-00
40
STAY, RECTIFIER
3HT-8711E-10-00
43
BAND
1UA-82591-00-00
46
SENSOR, LEAN ANGLE
3HT-82576-00-00
47
PROTECTER, WIRE HA
2D1-82589-02-00
48
BAND
1UA-82591-00-00
50
CLAMP
90464-17002-00
51
SEAL 1
5S7-28428-00-00
53
CLAMP(3XW)
90464-35132-00
More Electrical diagrams
