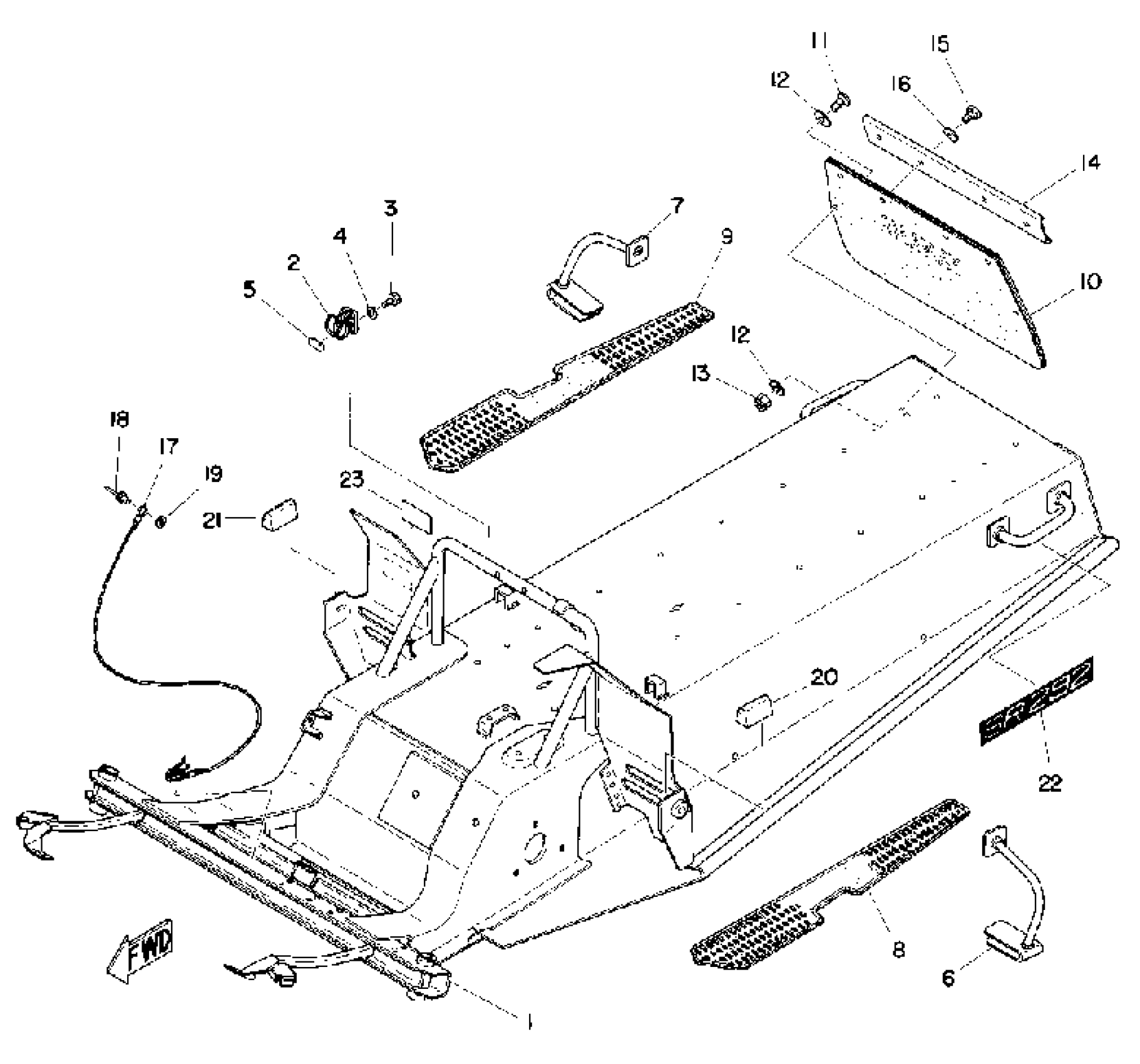

Find the part on the Frame diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR292 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(856-21910-00-00)

1
Out of stock

2

HOLDER, WIRE

(856-23874-00-00)

1
Out of stock

3

BOLT (682)

97095-06040-00

1

$2.36

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

NUT

(856-23877-00-00)

1
Out of stock

6

FOOTREST 1

(856-27411-00-00)

1
Out of stock

7

BRACKET, FOOTREST 1

(856-27412-01-00)

1
Out of stock

8

COVER, FOOTREST

878-27413-00-00

1
Out of stock

9

COVER, FOOTREST

878-27423-00-00

1
Out of stock

10

FLAP

(856-77595-00-00)

1
Out of stock

11

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

12

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

PLATE, FLAP 1

(829-77593-00-00)

1
Out of stock

15

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

STOPPER, SHROUD

(856-77118-01-00)

1
Out of stock

18

RIVET (856)

90267-48014-00

—
Out of stock

19

WASHER, PLATE

90201-04027-00

—
Out of stock

20

STOPPER

(856-77188-00-00)

1
Out of stock

21

DAMPER, SHROUD

(856-77196-00-00)

1
Out of stock

22

EMBLEM 4

(856-77354-00-00)

1
Out of stock

23

EMBLEM 1

(820-77141-00-00)

1
Out of stock
