1975 Yamaha SR292 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

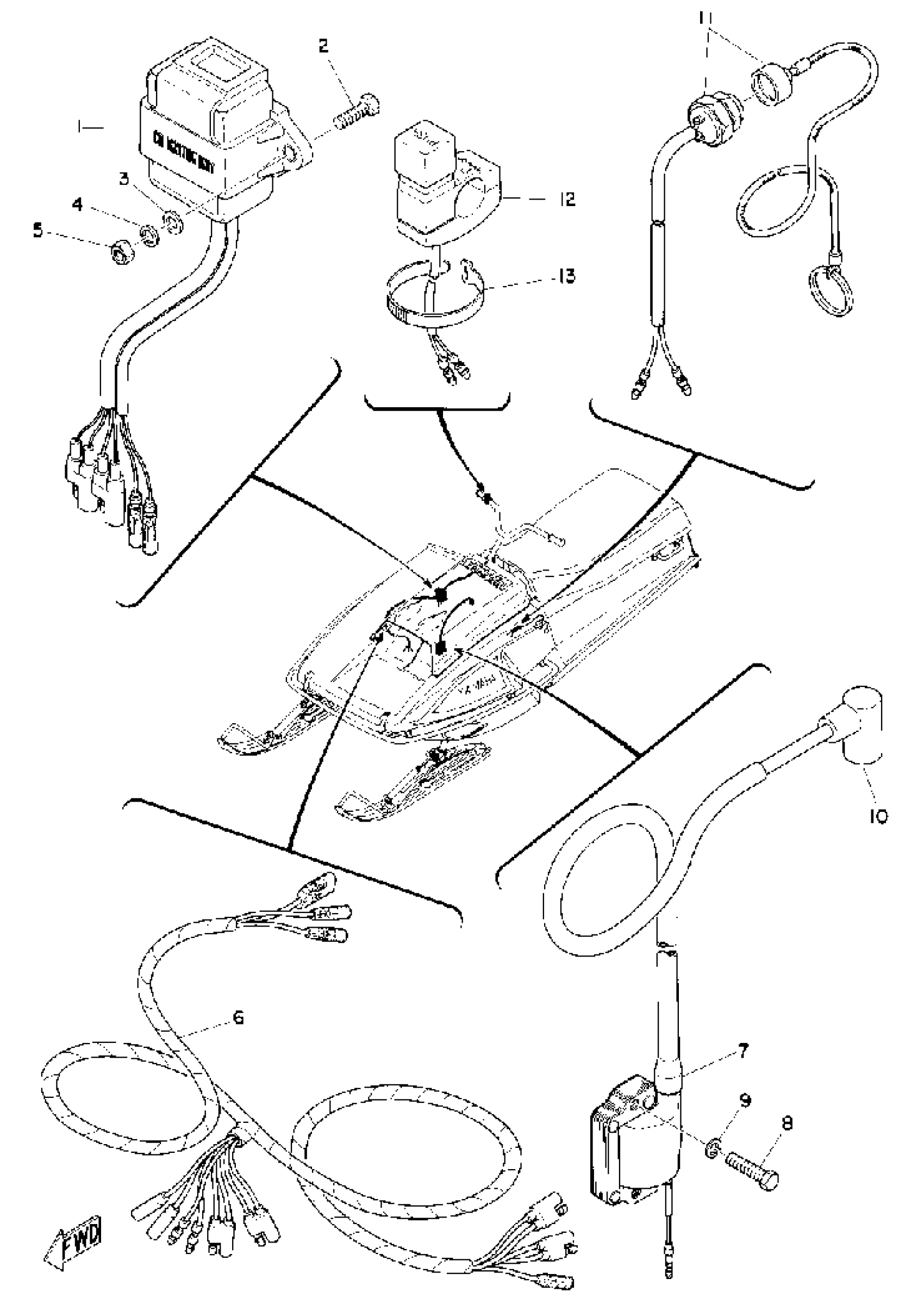

1975 Yamaha SR292 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

(856-85540-10-00)

1
Out of stock

2

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

3

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

6

WIRE HARNESS ASSEMBLY

(856-82590-20-00)

1
Out of stock

7

IGNITION COIL ASSEMBLY

(878-82310-30-00)

1
Out of stock

8

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

11

STOP SWITCH ASSEMBLY

856-82550-01-00

1
Out of stock

12

SWITCH, HANDLE 1

(856-83976-00-00)

1
Out of stock

13

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
← CDI Magneto Starter →
