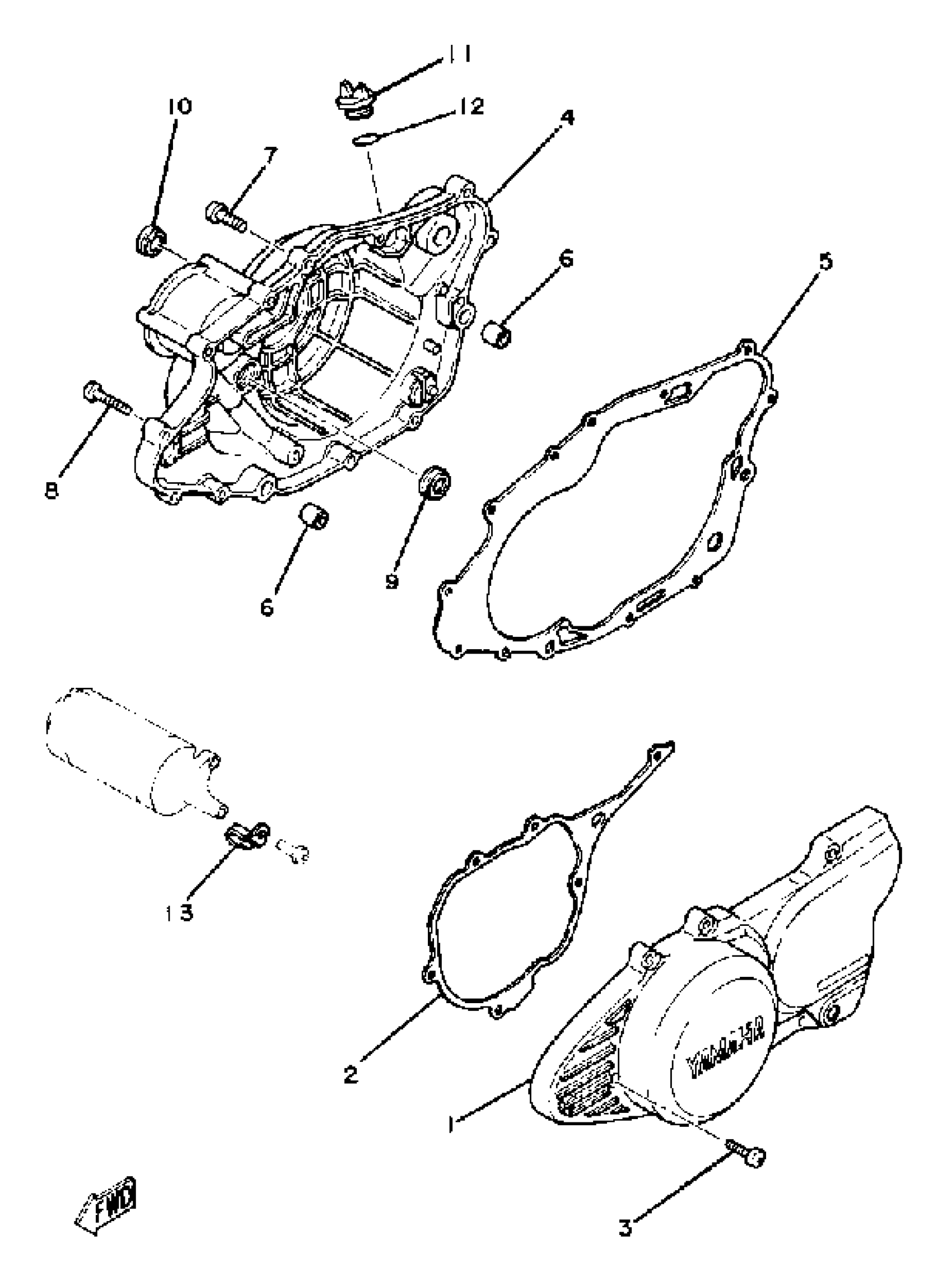

Yamaha SR250J (SR250J) 1982 CRANKCASE COVER Diagram

COVER CRANK CASE 1

3Y6-15411-04-00

Unavailable

GASKET, CRANKCASE COVER 1

3Y6-15451-01-00

Unavailable

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

COVER, CRANKCASE 2

3Y6-15421-00-00

$141.70

GASKET, CRANKCASE COVER 2

3Y6-15461-01-00

$25.08

PIN, DOWEL

99530-12016-00

$3.85

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

SCREW, PAN HEAD(6H4)

97885-06035-00

$5.40

OIL SEAL (3Y1)

93101-14092-00

$9.21

GAUGE, LEVEL

3KM-15361-00-00

Unavailable

PLUG, OIL

3Y1-15363-10-00

$15.94

O-RING (646)

93210-19123-00

Unavailable

CLAMP(4MX)

90465-06376-00

$6.59
