1981 Yamaha SR250H (SR250H) Stand Footrest Diagram

← All diagrams

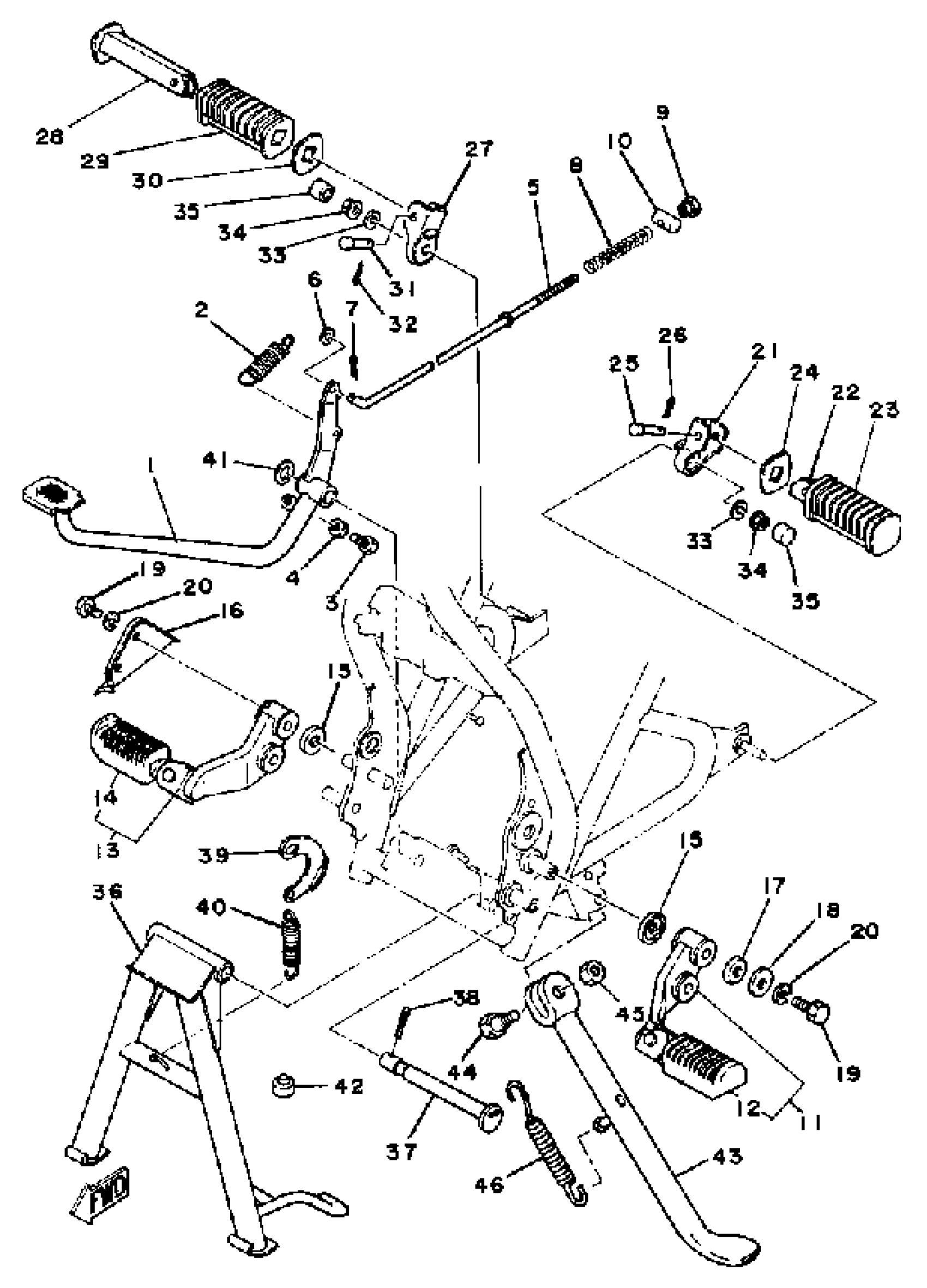

Find the part on the Stand Footrest diagram for your 1981 Yamaha SR250H (SR250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250H (SR250H) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

3Y6-27211-00-93

—
Out of stock

2

SPRING TENSION 137272160000

90506-23045-00

1
Out of stock

3

SCREW 341272170000

90153-06008-00

1
Out of stock

4

NUT, HEXAGON

95380-06600-00

1
Out of stock

5

ROD, BRAKE

3Y6-27231-00-00

1
Out of stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

7

PIN, COTTER

91490-20025-00

1
Out of stock

8

SPRING, (180-27236-00)

90501-10245-00

1
Out of stock

9

NUT (25K)

90179-06411-00

1
Out of stock

10

PIN 1562723700

90249-12008-00

1
Out of stock

11

FRONT FOOTREST ASSY (L.H)

3Y6-27410-00-R4

1
Out of stock

12

. UNAVAILABLE IN PRICE BOOK

1J7-27412-01-00

1
Out of stock

13

FRONT FOOTREST ASSY (R.H)

3Y6-27420-00-R4

—
Out of stock

14

COVER, FOOTREST

4L0-27423-00-00

1
Out of stock

15

WASHER, PLATE (1L9)

90209-12157-00

—
Out of stock

16

PROTECTOR

(3Y6-27491-00-00)

1
Out of stock

17

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

18

WASHER, PLATE (1A0)

90201-08612-00

—
Out of stock

19

BOLT, HEXAGON

97013-08016-00

—
Out of stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

21

BRACKET 1

3Y6-27432-00-00

—
Out of stock

22

FOOTREST, REAR 1

447-27431-00-00

1
Out of stock

23

COVER, REAR FOOTREST

447-27433-00-00

—
Out of stock

24

WASHER 447274370000

90209-18070-00

—
Out of stock

25

PIN, WITH HOLE (465)

90240-06042-00

—
Out of stock

26

PIN, COTTER

91490-16020-00

1
Out of stock

27

BRACKET 2

3Y6-27442-00-00

—
Out of stock

28

FOOTREST, REAR 2

447-27441-00-00

1
Out of stock

29

COVER, REAR FOOTREST

447-27433-00-00

—
Out of stock

30

WASHER 447274370000

90209-18070-00

—
Out of stock

31

PIN, WITH HOLE (465)

90240-06042-00

—
Out of stock

32

PIN, COTTER

91490-16020-00

1
Out of stock

33

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

34

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

35

CAP, TOOL BOX

262-21399-00-00

1
Out of stock

36

STAND, MAIN

3Y6-27111-01-R4

—
Out of stock

37

SHAFT, MAIN STAND

3Y6-27112-00-00

—
Out of stock

38

PIN, COTTER

91490-30030-00

—
Out of stock

39

LINK, MAIN STAND

3Y6-27115-00-00

—
Out of stock

40

SPRING TENSION 174271160000

90506-32056-00

—
Out of stock

41

WASHER (3XVC)

90201-153A1-00

—
Out of stock

42

STOPPER, MAIN STAND

371-27114-00-00

—
Out of stock

43

STAND, SIDE

3Y6-27311-01-00

—
Out of stock

44

BOLT 122273170100

90109-08032-00

—
Out of stock

45

NUT

90185-08055-00

—
Out of stock

46

SPRING (460)

90507-29009-00

—
Out of stock
