1981 Yamaha SR250H (SR250H) Rear Wheel Diagram

← All diagrams

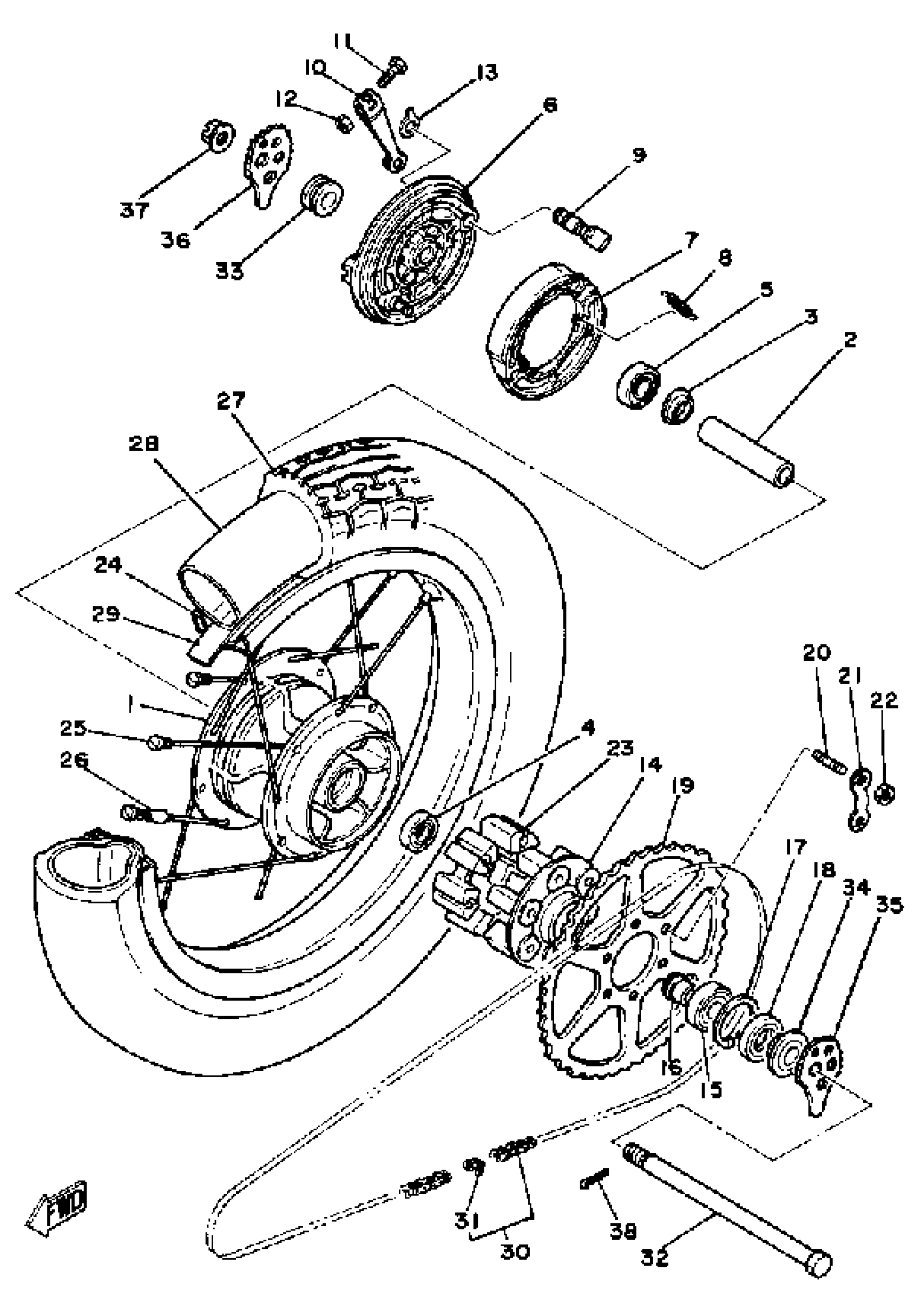

Find the part on the Rear Wheel diagram for your 1981 Yamaha SR250H (SR250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250H (SR250H) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

3Y6-25311-00-38

1
Out of stock

2

SPACER

90560-17311-00

—
Out of stock

3

FLANGE, SPACER

146-25315-00-00

1
Out of stock

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

6

PLATE, BRAKE SHOE

3Y6-25321-01-00

—
Out of stock

7

BRAKE SHOE KIT

3KG-W253E-00-00

—
Out of stock

8

SPRING (5T9)

90506-17328-00

—
Out of stock

9

CAMSHAFT

4GL-25351-00-00

1
Out of stock

10

LEVER, CAM SHAFT

1E2-25155-00-00

—
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1
Out of stock

13

PLATE

3Y6-2533A-01-00

1
Out of stock

14

CLUTCH, HUB

3Y1-25366-00-98

1
Out of stock

15

BEARING(1YW)

93306-20461-00

1
Out of stock

16

COLLAR, WHEEL

3Y1-25377-00-00

1
Out of stock

17

CIRCLIP(48Y)

99009-47500-00

—
Out of stock

18

OIL SEAL (28X47X7-102)

93102-28022-00

—
Out of stock

19

SPROCKET, DRIVN 46T

3Y1-25446-10-00

1
Out of stock

20

BOLT, STUD (483)

90116-08218-00

—
Out of stock

21

WASHER, LOCK (3Y2)

90215-08160-00

—
Out of stock

22

NUT (3Y2)

90170-08258-00

—
Out of stock

23

DAMPER

3Y1-25364-00-00

—
Out of stock

24

RIM (16X2.15-1.5)

94421-16002-00

—
Out of stock

25

SPOKE SET, REAR

3Y6-25304-00-00

—
Out of stock

26

BALANCER, WHEEL

3HT-25398-00-00

—
Out of stock

27

120/90-16 63P Y955

(94112-16430-00)

1
Out of stock

28

TUBE(3Y9)

94212-16295-00

—
Out of stock

29

BAND, RIM

94330-16058-00

—
Out of stock

30

CHAIN 520DS-103L (DID520DS-102L)

9Y585-20101-00

1
Out of stock

31

JOINT, CHAIN

94681-68001-00

—
Out of stock

32

AXLE,WHEEL

150-25381-01-00

1
Out of stock

33

COLLAR(3SX)

90387-170X9-00

—
Out of stock

34

COLLAR, WHEEL

3Y1-25383-00-00

—
Out of stock

35

PULLER, CHAIN 1

3Y1-25388-01-00

—
Out of stock

36

PULLER, CHAIN 2

3Y1-25389-00-00

—
Out of stock

37

NUT, CASTLE (2H6)

90171-16024-00

—
Out of stock

38

PIN, COTTER

91490-30030-00

—
Out of stock
