1980 Yamaha SR250G (SR250G) Intake Diagram

← All diagrams

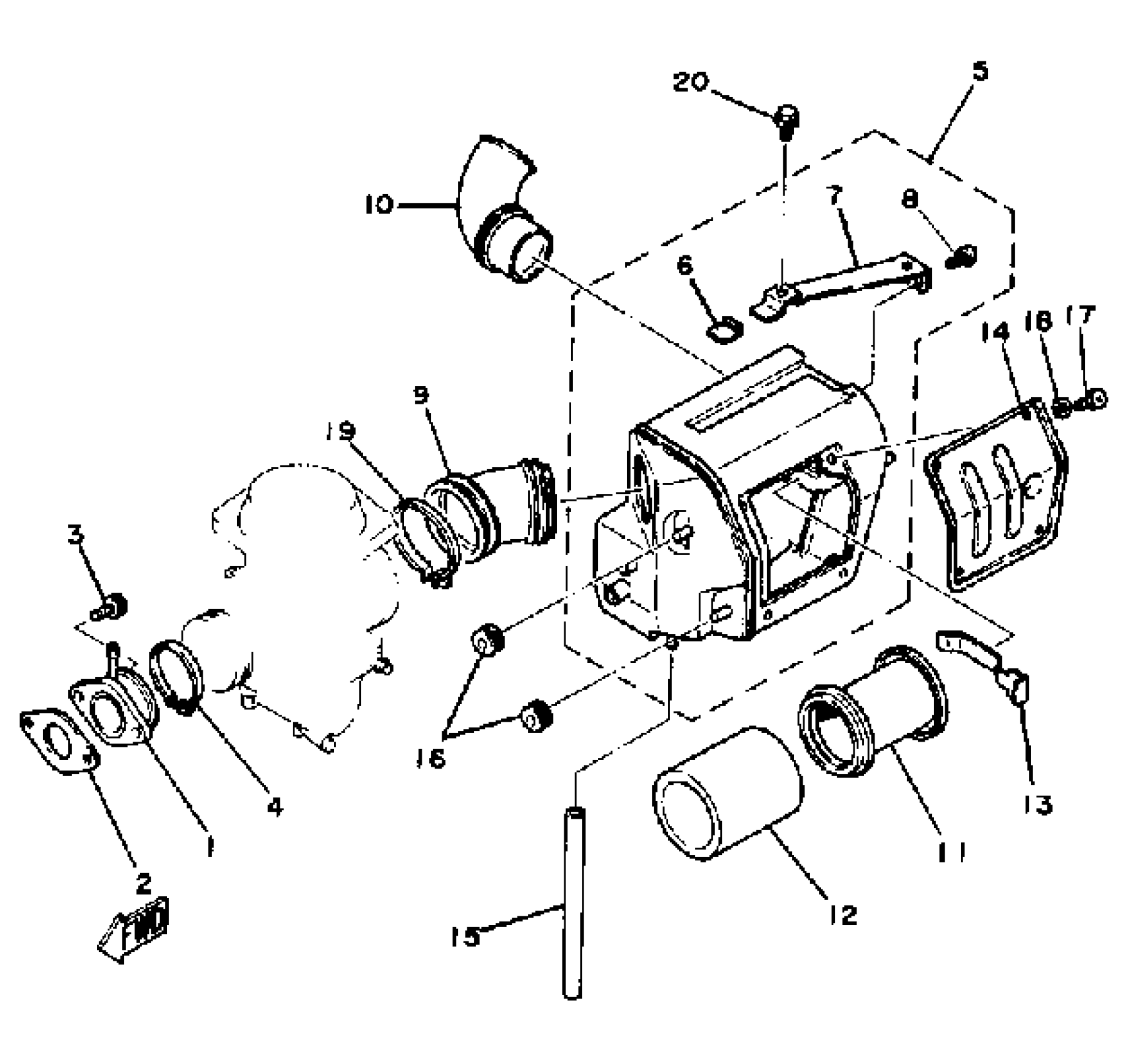

Find the part on the Intake diagram for your 1980 Yamaha SR250G (SR250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR250G (SR250G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

3Y6-13586-00-00

—

$36.42

In stock

2

GASKET, MANIFOLD

3HT-13556-00-00

1

$9.89

In stock

3

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

4

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

5

AIR CLEANER CASE ASSY

3Y6-14401-00-00

—

$153.02

In stock

6

GROMMET

90480-16185-00

1

$6.68

In stock

7

STAY 1

(3Y6-14498-00-00)

1
Out of stock

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

9

JOINT, AIR CLNR 1

3Y6-14453-00-00

1
Out of stock

10

DUCT

3Y6-14437-00-00

1
Out of stock

11

GUIDE

3Y6-14458-00-00

1

$28.52

In stock

12

ELEMENT,AIR CLNR

3Y6-14451-01-00

—
Out of stock

13

PLATE, ELEMENT FITTING

3Y6-14468-01-00

1

$4.58

In stock

14

CAP ASSY, AIR CLEANER

3Y6-14402-00-00

—

$30.00

In stock

15

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

16

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

17

SCREW, HEXAGON (3Y8)

90153-05030-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

19

HOSE CLAMP ASSY

90450-58002-00

—

$15.11

In stock

20

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock
