1982 Yamaha SR185J (SR185J) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1982 Yamaha SR185J (SR185J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

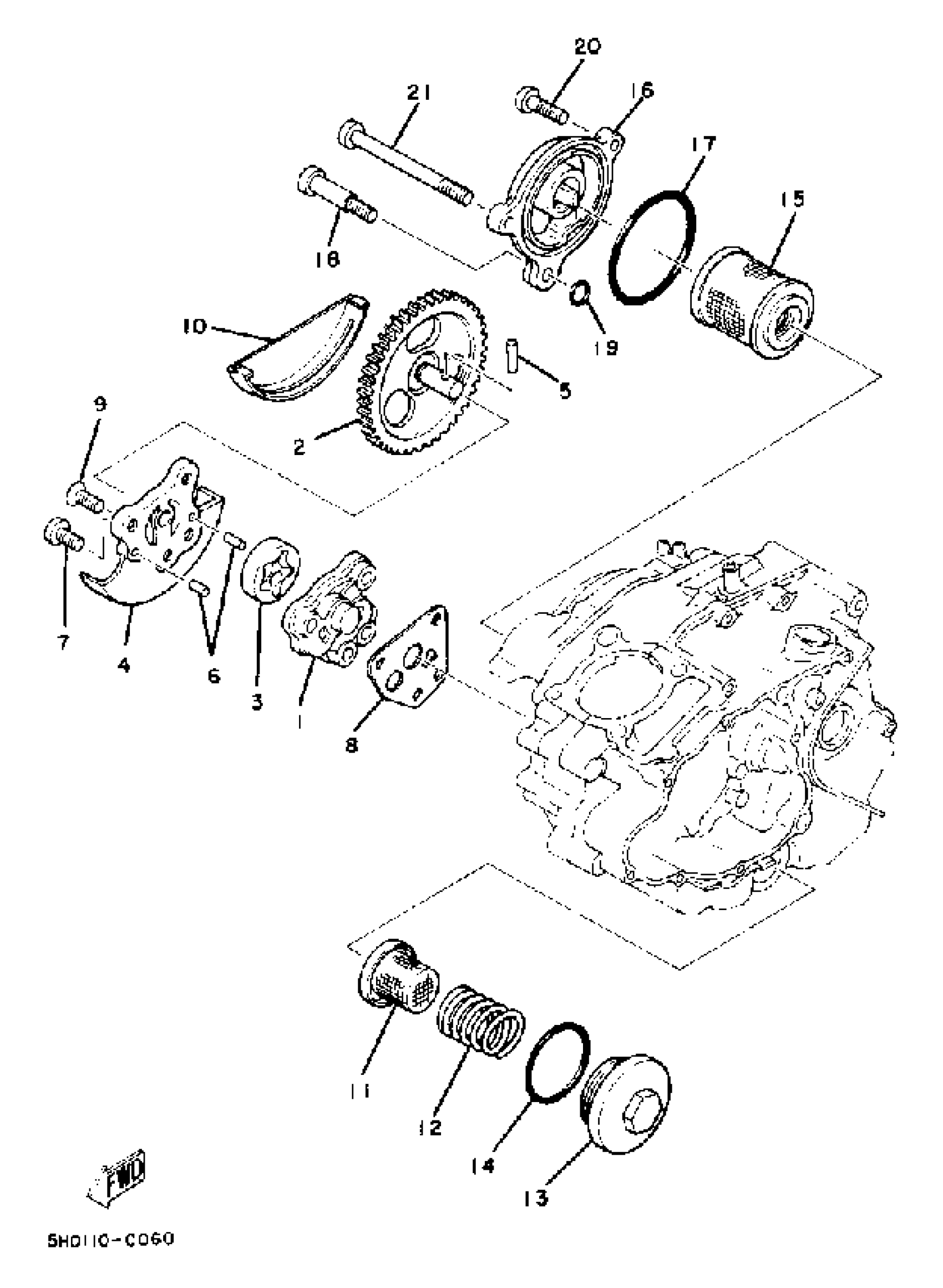

1982 Yamaha SR185J (SR185J) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, ROTOR

5H0-13336-00-00

1
Out of stock

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

1

$35.78

In stock

3

ROTOR ASSY 1

5H0-13310-00-00

—
Out of stock

4

COVER, PUMP

(5H0-13316-00-00)

1
Out of stock

5

PIN,DOWEL (137)

93603-12030-00

1

$1.88

In stock

6

PIN, DOWEL

93603-07073-00

1

$5.20

In stock

7

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

8

GASKET, PUMP COVER

3GD-13329-00-00

1

$6.46

In stock

9

SCREW, FLAT

98707-06030-00

1

$6.08

In stock

10

COVER, PUMP GEAR

5H0-13327-00-00

—

$24.72

In stock

11

STRAINER, OIL

51Y-13411-00-00

1

$31.03

In stock

12

SPRING, COMPRESSION (3Y1)

90501-18576-00

1

$6.17

In stock

13

PLUG, DRAIN

5H0-15351-00-00

1
Out of stock

14

O-RING

93210-347A1-00

1

$5.72

In stock

15

OIL CLEANER ASSY

5H0-13440-09-00

1
Out of stock

16

COVER, OIL ELEMENT

5H0-13447-00-00

1
Out of stock

17

O-RING (341)

93210-54175-00

—

$11.80

In stock

18

BOLT (583 OIL DRAIN)

90109-06419-00

—

$6.17

In stock

19

O-RING

93210-07438-00

—

$6.17

In stock

20

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

21

SCREW PAN HEAD

98580-06575-00

—

$10.95

In stock
