1981 Yamaha SR185H (SR185H) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

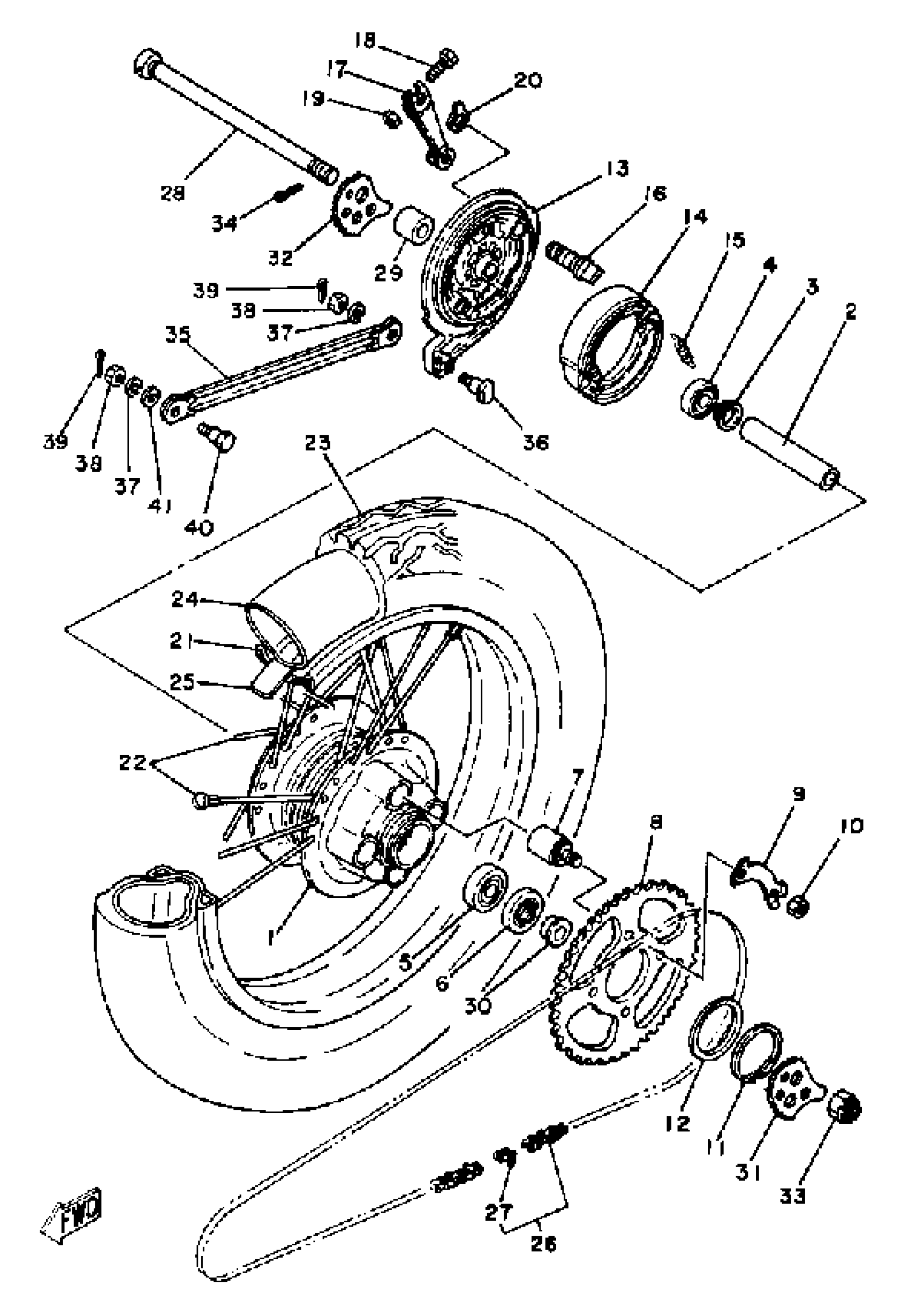

1981 Yamaha SR185H (SR185H) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

5H0-25311-00-38

1
Out of stock

2

SPACER

90560-15313-00

1

$39.77

In stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-30212-00

1

$33.35

In stock

6

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

7

DAMPER

2R7-25364-00-00

1
Out of stock

8

SPROCKET, DRIVN 44T

5H0-25444-50-00

1
Out of stock

9

WASHER

5H0-25412-00-00

1
Out of stock

10

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

11

CIRCLIP (8L9)

93410-52061-00

1

$10.51

In stock

12

WASHER, PLATE

90201-543E4-00

1
Out of stock

13

PLATE, BRAKE SHOE

5H0-25321-00-38

1
Out of stock

14

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

15

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

16

CAMSHAFT

4GL-25351-00-00

—

$62.50

In stock

17

LEVER, CAM SHAFT

2N3-25155-00-00

—

$25.17

In stock

18

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

PLATE

3Y6-2533A-01-00

—

$5.30

In stock

21

RIM 1.85X16

(94418-16289-00)

1
Out of stock

22

SPOKE SET, REAR

5H0-25304-00-00

1
Out of stock

23

350-16 4PR Y967

94135-16456-00

1
Out of stock

24

TUBE

94232-16166-00

1
Out of stock

25

BAND, RIM

94330-16058-00

—

$18.18

In stock

26

CHAIN

9Y582-51117-00

—
Out of stock

27

JOINT, CHAIN

94682-51001-00

—

$4.42

In stock

28

AXLE, WHEEL

3MW-25381-00-00

1
Out of stock

29

COLLAR

90387-154E1-00

1
Out of stock

30

COLLAR

90387-154E0-00

1
Out of stock

31

PULLER, CHAIN 1

5H0-25388-00-00

—
Out of stock

32

PULLER, CHAIN 2

5MP-25389-00-00

—
Out of stock

33

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

34

PIN, COTTER

91490-30030-00

—

$7.15

In stock

35

BAR, TENSION

451-25371-01-00

1
Out of stock

36

BOLT

90109-08620-00

1
Out of stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

38

. NUT

95380-08700-00

1

$3.07

In stock

39

PIN, COTTER

91490-20025-00

—

$1.31

In stock

40

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

41

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
