1981 Yamaha SR185H (SR185H) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

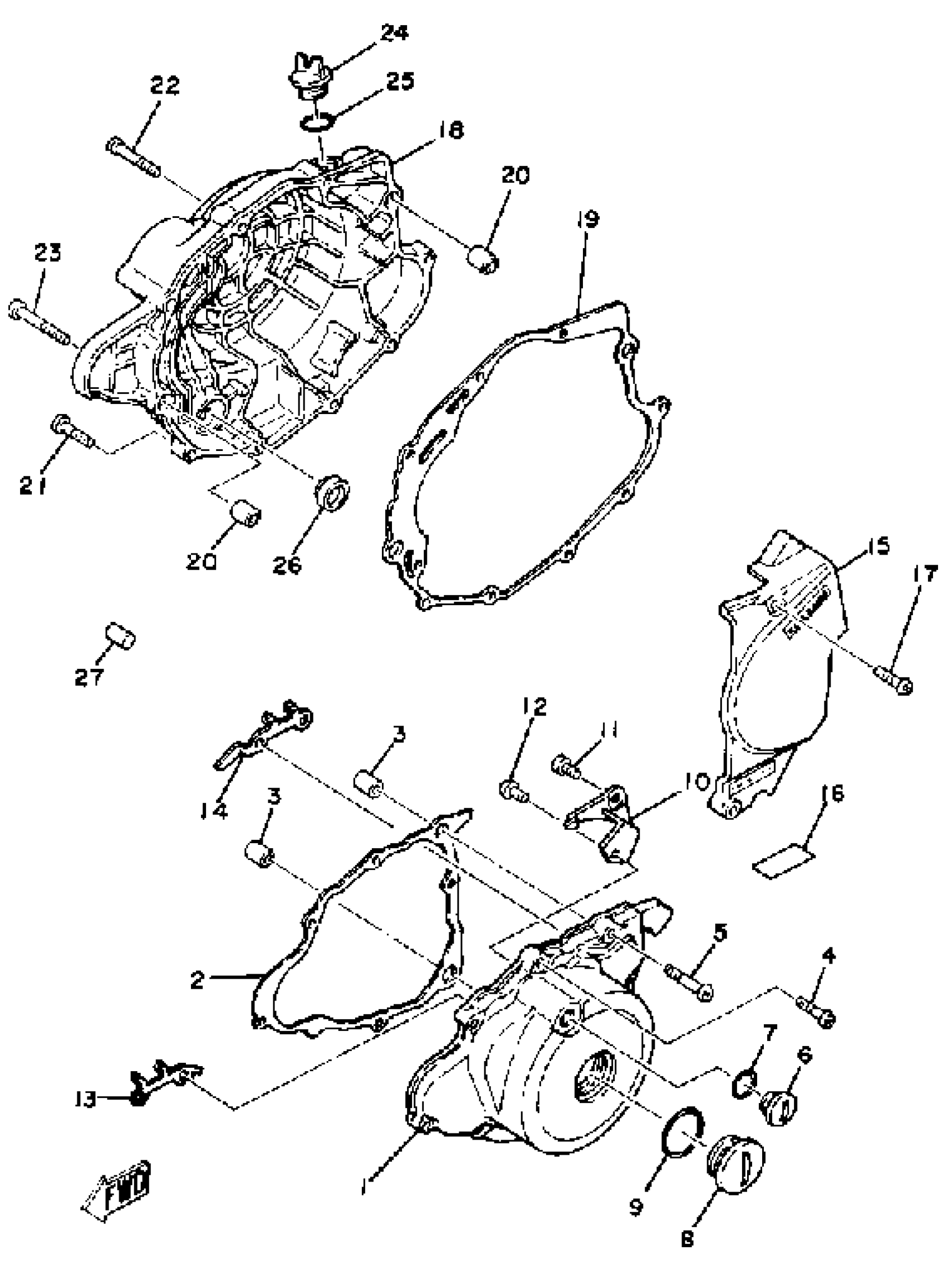

1981 Yamaha SR185H (SR185H) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(5H0-15411-00-00)

1
Out of stock

2

GASKET, CRANKCASE COVER 1

4BE-15451-03-00

1

$17.65

In stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

5

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

6

1

$15.72

In stock

7

O-RING (2H9)

93210-14369-00

1

$5.80

In stock

8

1

$25.94

In stock

9

O-RING (341)

93210-32172-00

1

$5.78

In stock

10

CLAMP

(90465-06175-00)

1
Out of stock

11

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

13

CLAMP

90462-16096-00

1
Out of stock

14

CLAMP

(90462-16097-00)

1
Out of stock

15

CRCS COVER ASSEMBLY R

5H0-15420-00-00

1
Out of stock

16

GUIDE, INLET

(5H0-15377-00-00)

1
Out of stock

17

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

18

COVER, CRANKCASE 3

(5H0-15431-00-00)

1
Out of stock

19

GASKET, CRANKCASE COVER 3

4BD-15462-00-00

—

$26.78

In stock

20

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

21

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

22

SCREW PAN HEAD

98580-06040-00

—

$6.17

In stock

23

SCREW PAN HEAD

98580-06550-00

—

$6.17

In stock

24

PLUG, OIL

3Y1-15363-10-00

—

$17.02

In stock

25

O-RING (646)

93210-19123-00

—

$6.91

In stock

26

GAUGE, LEVEL

3Y1-15361-00-00

—

$25.51

In stock

27

ABSORBER 3

(5H0-11127-00-00)

1
Out of stock
