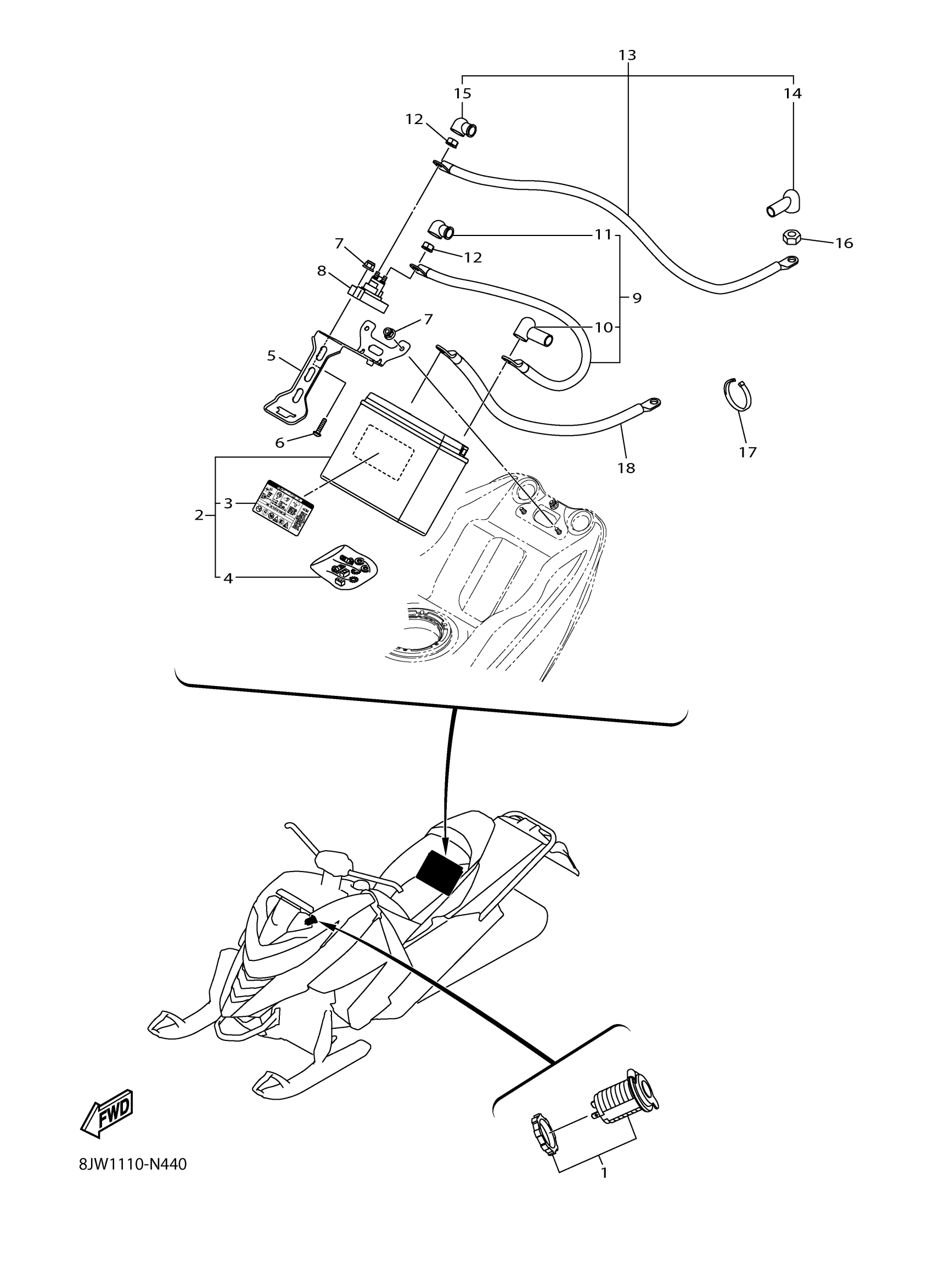

Find the part on the Electrical 2 diagram for your 2014 Yamaha Srviper RTX (SR10REB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Srviper RTX (SR10REB) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TERMINAL COMP.

8JP-H254B-00-00

1
Out of stock

2

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

1
Out of stock

3

. LABEL, BATTERY

8JP-H2141-00-00

1
Out of stock

4

. REPAIR PARTS KIT

8JP-F819G-00-00

1
Out of stock

5

BRACKET, BATTERY 2

8JP-H2158-00-00

1
Out of stock

6

SCREW, M6X1.0X30

8JP-RA265-00-00

1
Out of stock

7

NUT,FLG. M6-1.0

8JM-RA322-00-00

1
Out of stock

8

STARTER RELAY ASSY

8JP-H1940-00-00

1
Out of stock

9

CABLE 1

8JP-H8146-00-00

—
Out of stock

10

COVER

8JP-H1942-10-00

1
Out of stock

11

. COVER, TERMINAL

8JP-H1916-00-00

1
Out of stock

12

NUT, WITH WASHER M

8JP-RA375-00-00

1
Out of stock

13

CABLE 2

8JP-H8147-00-00

—
Out of stock

14

COVER

8JP-H1942-10-00

1
Out of stock

15

. COVER, TERMINAL

8JP-H1916-00-00

1
Out of stock

16

NUT(650)

95380-06700-00

—
Out of stock

17

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

—
Out of stock

18

WIRE, EARTH LEAD

8JP-H131Y-00-00

—
Out of stock
