2016 Yamaha Srviper L TX SE (SR10LSGR) Engine Bracket Diagram

← All diagrams

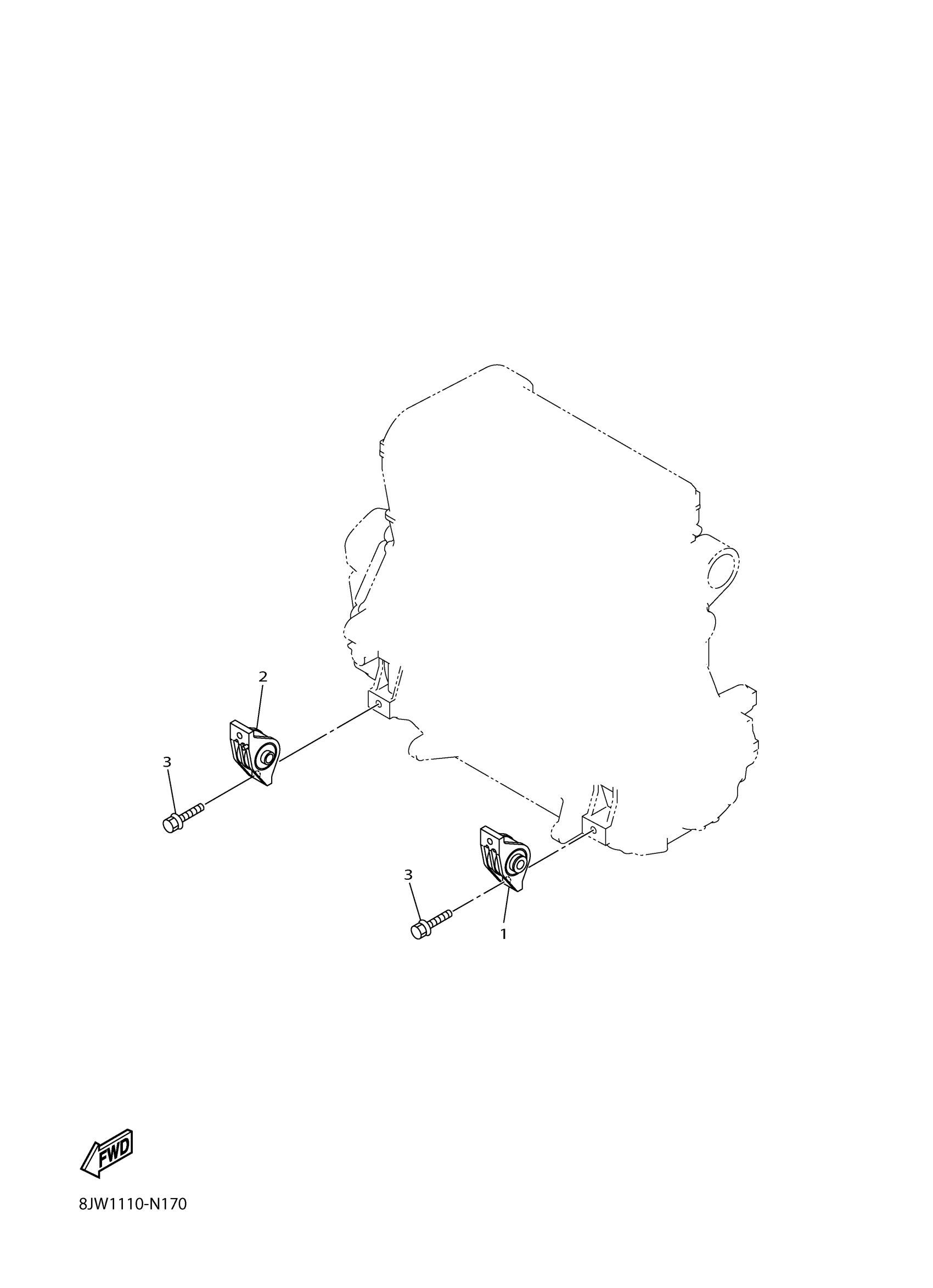

Find the part on the Engine Bracket diagram for your 2016 Yamaha Srviper L TX SE (SR10LSGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Srviper L TX SE (SR10LSGR) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE BRACKET COMP.

8GL-21410-00-00

—

$65.42

In stock

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

—

$67.03

In stock

3

BOLT, FLANGE

95812-08030-00

1

$3.25

In stock
