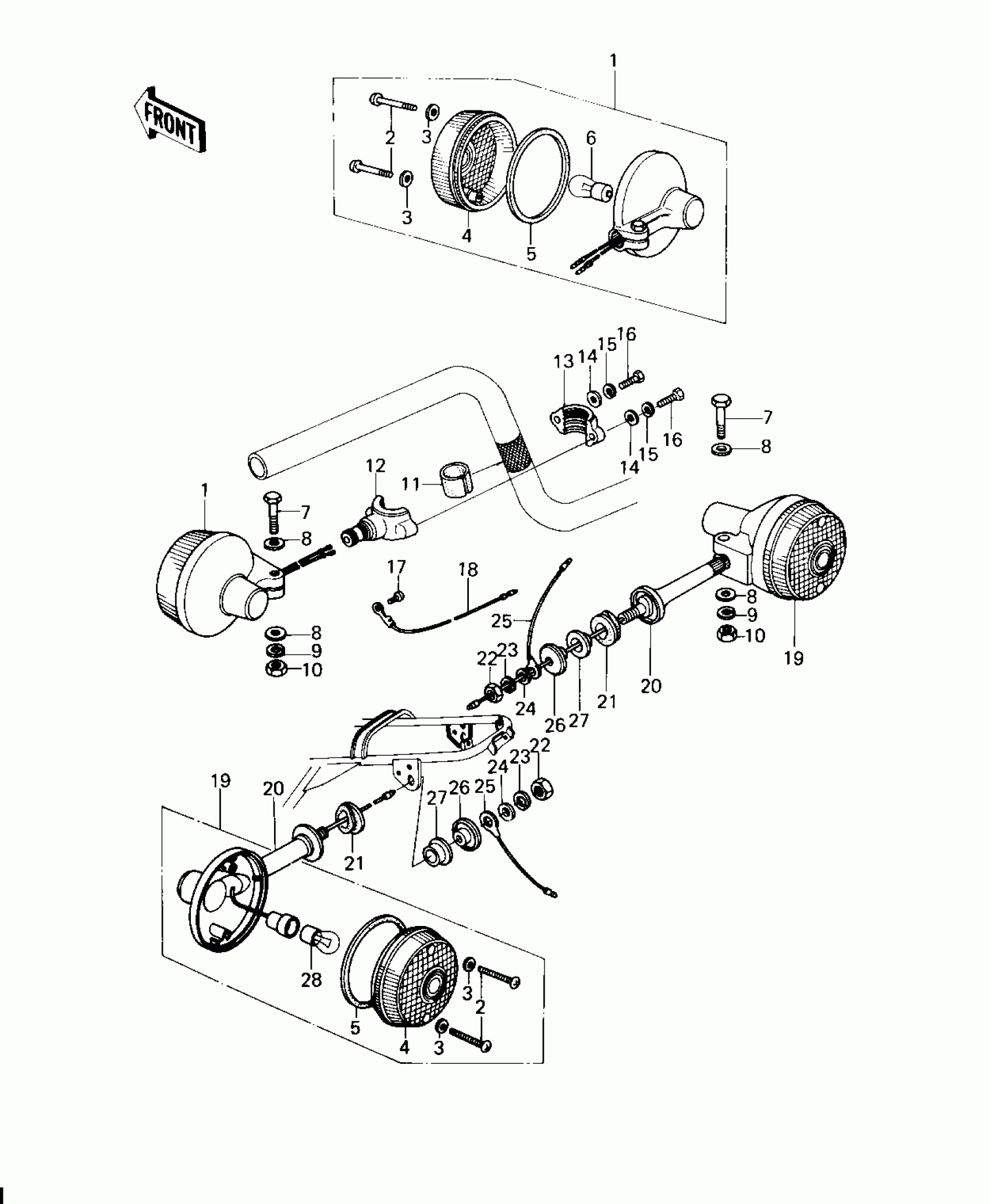

Kawasaki SR TURN SIGNALS Diagram

#

Description
Price

1

LAMP,FRNT,TURN SIGNAL

23040-1004

$139.11

2

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

3

WASHER,PLAIN,4MM

23058-002

$2.49

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$10.57

5

GASKET,SIGNAL LAMP

23050-003

$5.80

6

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

DAMPER

23066-003

$7.71

12

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

13

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.20

14

WASHER-PLAIN-SMALL,5MM

410D0500

$1.14

15

WASHER SPRING 5MM

461F0500

Unavailable

16

BOLT

110N0516

Unavailable

17

SCREW PAN HEAD 3X5

220B0305A

$0.48

18

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

19

LAMP-SIGNAL

23040-054

Unavailable

20

BRACKET,TURN SIGNAL.L

23051-053

Unavailable

21

DAMPER,LAMP

92075-128

$5.86

22

NUT-HEX-FINE,10MM

315B1000

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

WASHER,10.5X20X1

92022-239

$3.92

25

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

26

COLLAR

92027-147

$15.20

27

DAMPER RUBBER,SIG LM

92075-158

$5.47

28

BULB,12V 32CP(23W)

92069-055

$5.18
