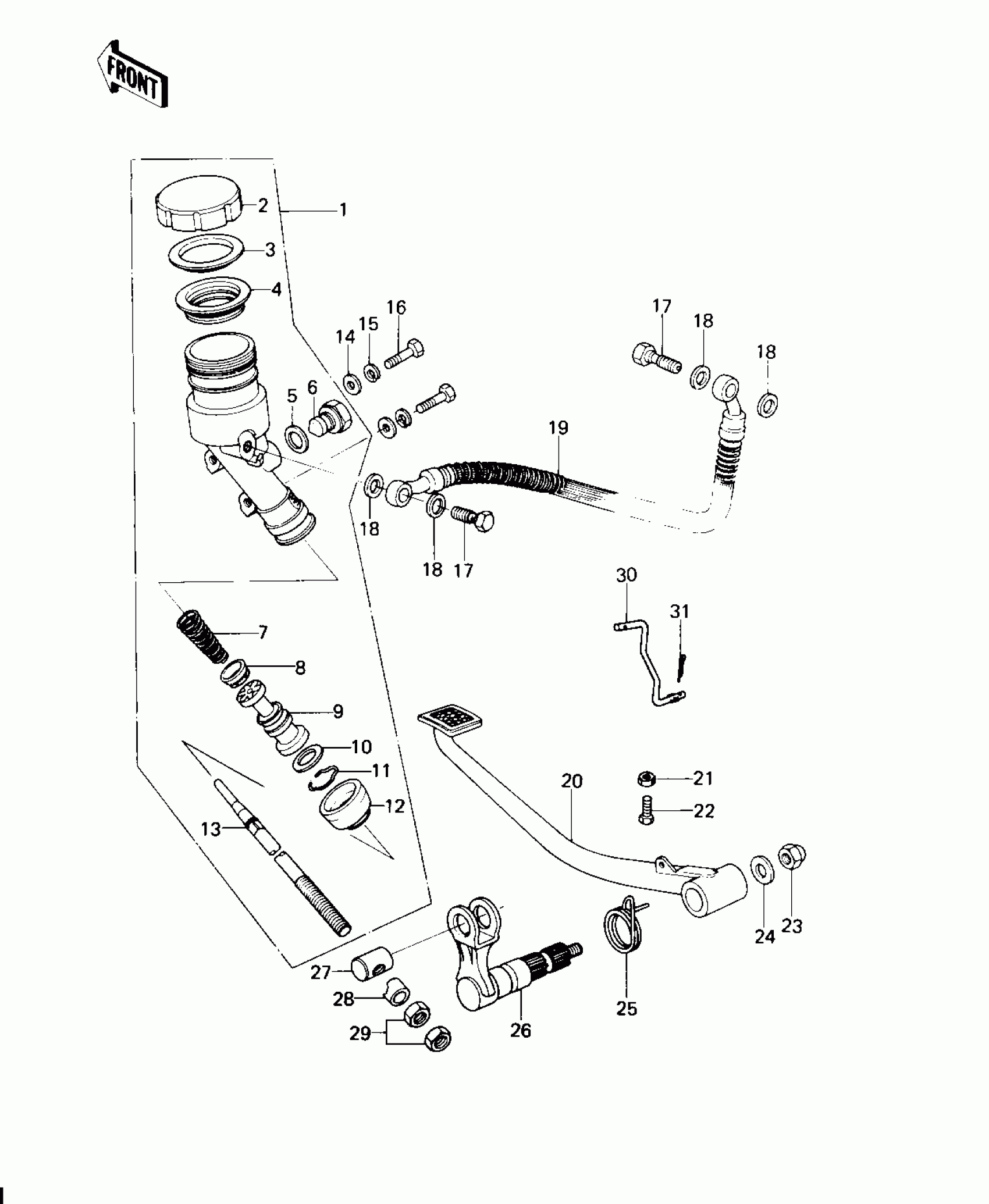

Kawasaki SR REAR MASTER CYLINDER/BRAKE PEDAL Diagram

#

Description
Price

1

CYLINDER ASSY,M.REAR

43015-1005

Unavailable

2

CAP,OIL CUP

43026-004

Unavailable

3

PLATE-MASTER CYLINDE

43027-001

Unavailable

4

DIAPHRAGM

43028-003

Unavailable

5

'O'RING

43079-002

Unavailable

6

BOLT

92001-1073

$11.36

7

SPRING ASSY-RETURN

43018-001

$23.27

8

CUP-PRIMARY

43019-001

Unavailable

9

PISTON ASSY

43020-1007

Unavailable

10

STOPPER,PISTON

43022-002

$9.90

11

DUST COVER

43024-003

$23.93

12

DUST COVER

43024-003

$23.93

13

ROD,BRAKE

43011-1004

$73.43

14

WASHER PLAIN 8MM

411B0800

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

17

BOLT,OIL,L=23

92002-1888

$4.15

18

WASHER,10.5X15X1.5

43067-001

$1.57

19

HOSE,REAR MASTER

43059-1006

Unavailable

20

PEDAL BRAKE

43001-1009

$204.96

21

NUT 6MM

311B0600

Unavailable

22

BOLT-UPSET,6X20

112G0620

Unavailable

23

NUT,CAP AND LOCK,8MM

92019-013

$11.31

24

WASHER,8.5X20X1.6

92022-1561

$3.29

25

SPRING,BRAKE PEDAL

92081-1015

Unavailable

26

SHAFT,BRAKE PEDAL

43004-1002

Unavailable

27

PIN,BRAKE ROD

92043-1003

$3.58

28

COLLAR,BRAKE ROD

92027-1019

Unavailable

29

NUT-HEX-FINE,10MM

315B1000

Unavailable

30

HOOK, BRAKE SWITCH

27012-1003

Unavailable

31

PIN COTTER 1.6X10

550D1610

Unavailable
