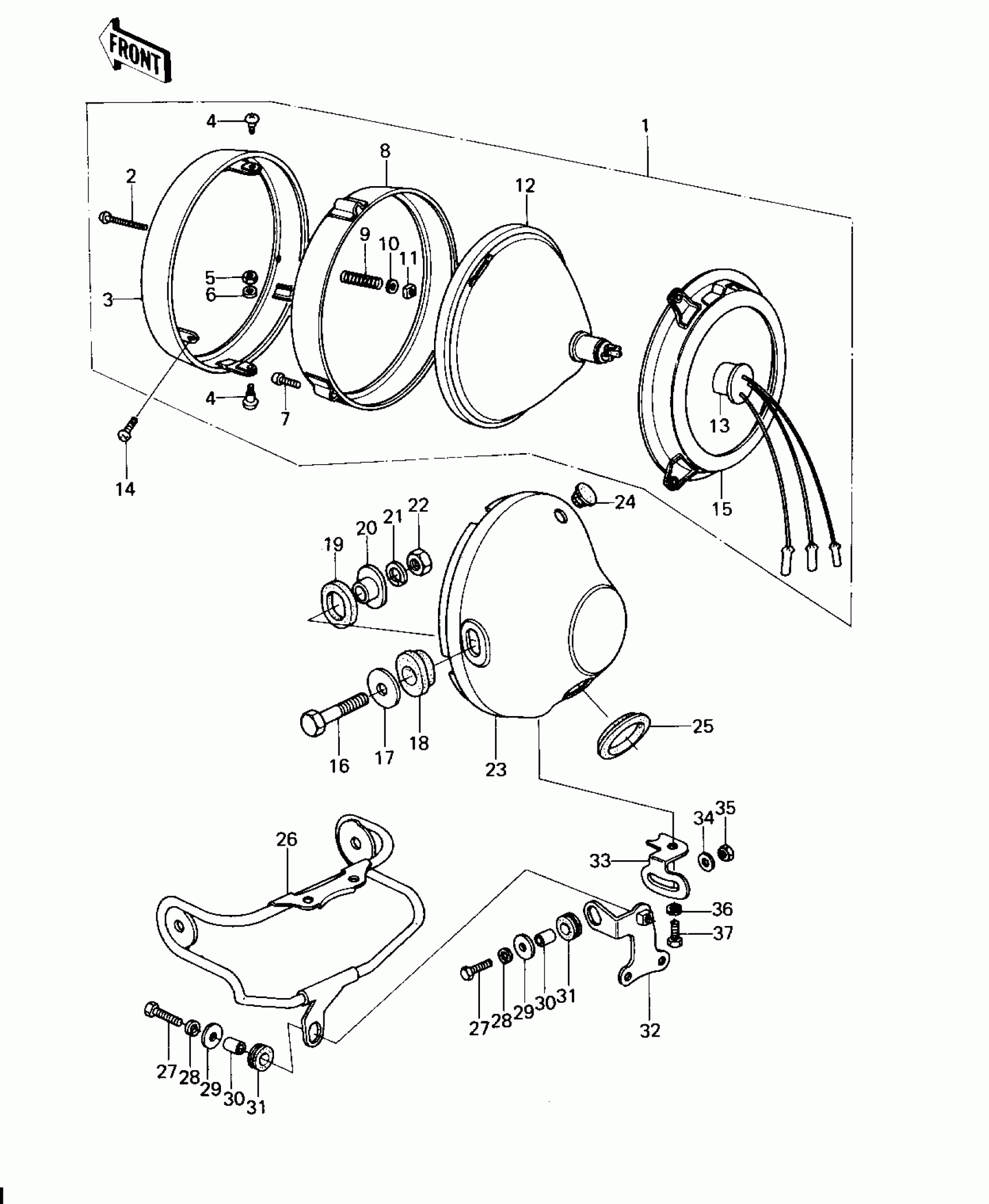

Kawasaki SR HEADLIGHT Diagram

#

Description
Price

1

LAMP UNIT,HEAD

23003-017

$400.76

2

SCREW,FOCUS ADJUSTING

23019-021

$4.69

3

RIM,HEAD LAMP

23006-038

Unavailable

4

SCREW,PAN HEAD,5X12

23019-023

$5.43

5

NUT,5MM

23020-023

Unavailable

6

WASHER,PLAIN,5MM

23021-012

$5.43

7

SCREW-PAN-CROS

220B0312

Unavailable

8

RING,HEAD LAMP MOUNT

23072-001

Unavailable

9

SPRING,FOCUS ADJUSTING

23014-005

$3.62

10

WASHER,4.1X8X0.8

23021-004

$2.91

11

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

12

SEALD BEAM UNIT

23007-041

Unavailable

13

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

14

SCREW,SPECIAL,5X14

23019-022

$1.48

15

RING,HEAD LAMP MOUNT

23074-001

$64.65

16

BOLT,10X35

92007-024

$7.49

17

WASHER,HEAD LAMP

92022-1054

$7.24

18

DAMPER RUBBER

23066-022

Unavailable

19

DAMPER RUBBER

23066-021

Unavailable

20

COLLAR,HEAD LIGHT

23052-011

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable

22

NUT-HEX-FINE,10MM

315B1000

Unavailable

23

BODY-COMP-HEAD LAMP

23005-1016

$231.11

24

PLUG REAR FENDER RUB

92074-006

$5.64

25

GROMMET

92071-1008

Unavailable

26

BRACKET,METER

11034-1110

Unavailable

27

BOLT-UPSET

112G0625

Unavailable

28

WASHER SPRING 6MM

461F0600

Unavailable

29

WASHER,6.5X22X1.6

92022-237

$3.92

30

COLLAR

92027-241

$4.87

31

DAMPER RUBBER,RR FENR

92075-209

$4.69

32

BRACKET,METER

11034-1366

Unavailable

33

BRACKET,METER

11034-1119

Unavailable

34

WASHER PLAIN 6MM

411B0600

Unavailable

35

NUT 6MM

311B0600

Unavailable

36

WASHER SPRING 8MM

461F0800

Unavailable

37

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable
