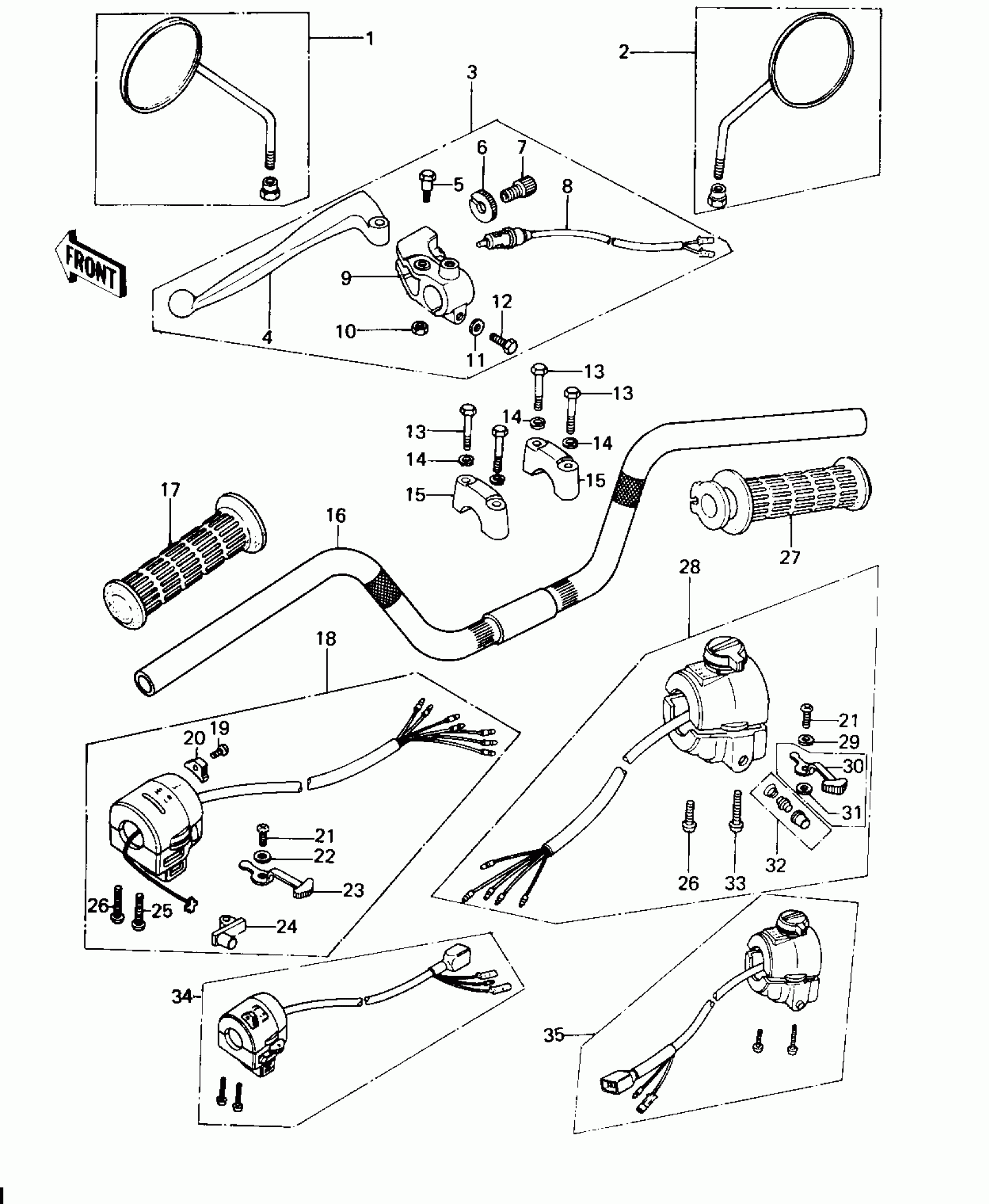

Kawasaki SR HANDLEBAR Diagram

#

Description
Price

1

MIRROR-ASSY,LH

56001-1027

$85.81

2

MIRROR-ASSY,RH

56001-1028

Unavailable

3

LEVER ASSY,CLUTCH

46076-054

$102.73

4

LEVER-GRIP,CLUTCH

46092-023

$35.96

5

BOLT,HEX HEAD

92007-047

Unavailable

6

NUT,CABLE ADUST NUT

46056-007

Unavailable

7

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

8

SWITCH,CLUTCH

27043-002

Unavailable

9

HOLDER,CLUTCH LEVER

46094-019

$70.86

10

NUT,LOCK 6MM

92017-014

$7.51

11

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

12

BOLT HEX HEAD 6X25

110N0625

Unavailable

13

BOLT 8X38

92001-1405

$16.50

14

WASHER SPRING 8MM

461F0800

Unavailable

15

HOLDER-HANDLE,UPP

46012-008

$37.74

16

HANDLEBAR

46003-1018

$114.89

16

HANDLEBAR

46003-1029

$125.33

17

RUBBER,L.H GRIP

46075-028

$39.98

18

CASE ASSY,L.H

46091-055

Unavailable

19

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

20

KNOB,LIGHTING SW L.H

46044-013

$11.29

21

SCREW PAN HEAD 3X5

220B0305A

$0.48

22

WASHER

92095-010

$2.71

23

KNOB,LIGHTING SW L.H

46043-005

Unavailable

24

BUTTON,HORN SWITCH

46028-007

Unavailable

25

SCREW-PAN-CROS

220B0535

$2.76

26

SCREW PAN HEAD 5X30

220B0530

Unavailable

27

GRIP ASSY,THROTTLE

46019-038

$118.44

28

HOUSING ASSY,R.H. CO

46091-1031

Unavailable

28

HOUSING ASSY,R.H.

46091-1038

Unavailable

29

WASHER-PLAIN-SMALL,3MM

410B0300

Unavailable

30

KNOB,LIGHTING SW R.H

46043-004

Unavailable

31

WASHER,PLAIN

92095-014

$3.14

32

SWITCH,PUSH BUTTON

27010-1009

$9.20

33

SCREW-PAN-CROS

220B0540

Unavailable

34

HOUSING ASSY,CONT,L.H

46091-1048

Unavailable

35

HOUSING ASSY,CONT,R.H

46091-1047

$139.32
