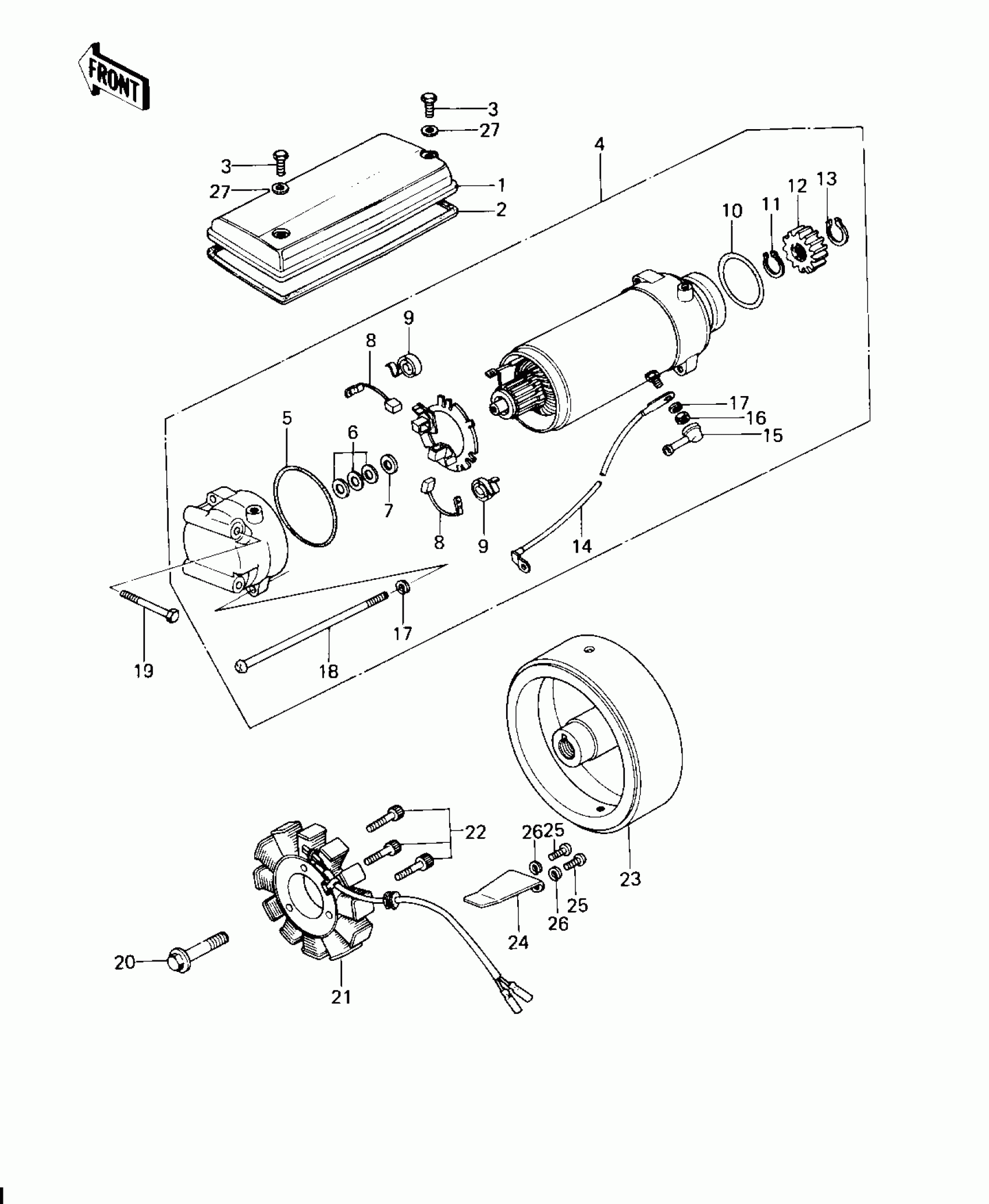

Kawasaki SR GENERATOR/STARTER MOTOR Diagram

#

Description
Price

1

COVER,STARTER

21165-003

Unavailable

2

GASKET,STARTER COVER

21166-003

Unavailable

3

BOLT (6X10)

110R0610

$3.44

4

STARTER-ELECTRIC

21163-1022

$533.22

5

"0" RING,62MM

21027-006

Unavailable

6

WASHER,9.1X18X0.2

21025-011

Unavailable

7

WASHER,THRUST,T=1.6

21025-010

Unavailable

8

BRUSH,CARBON

21039-003

$40.76

9

SPRING-BRUSH

21040-003

Unavailable

10

RING-O,40MM

21027-008

$11.37

11

RING-SNAP,17MM

92033-034

$9.59

12

SPROCKET-ASSY,STARTER

21053-004

$92.76

13

RING-SNAP,13MM

92033-037

$9.80

14

WIRE-LEAD,STARTER

26011-1099

Unavailable

15

CAP,STARTING MOTOR

21017-020

$7.54

16

NUT 6MM

312B0600

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

SCREW,PAN HEAD,6X130

21099-006

Unavailable

19

BOLT-UPSET

112G0660

Unavailable

20

BOLT,10X40

92001-1201

$8.23

21

STATOR

21003-1005

$531.86

22

BOLT-SOCKET,5X30

120P0530

Unavailable

23

FLYWHEEL

21050-1003

$532.30

24

CLAMP,GENERATOR LEAD

92037-1122

$4.80

25

SCREW-PAN-CROS

220B0512

$0.42

26

WASHER SPRING 5MM

461F0500

Unavailable

27

WASHER,PLAIN,6MM

410D0600

Unavailable
