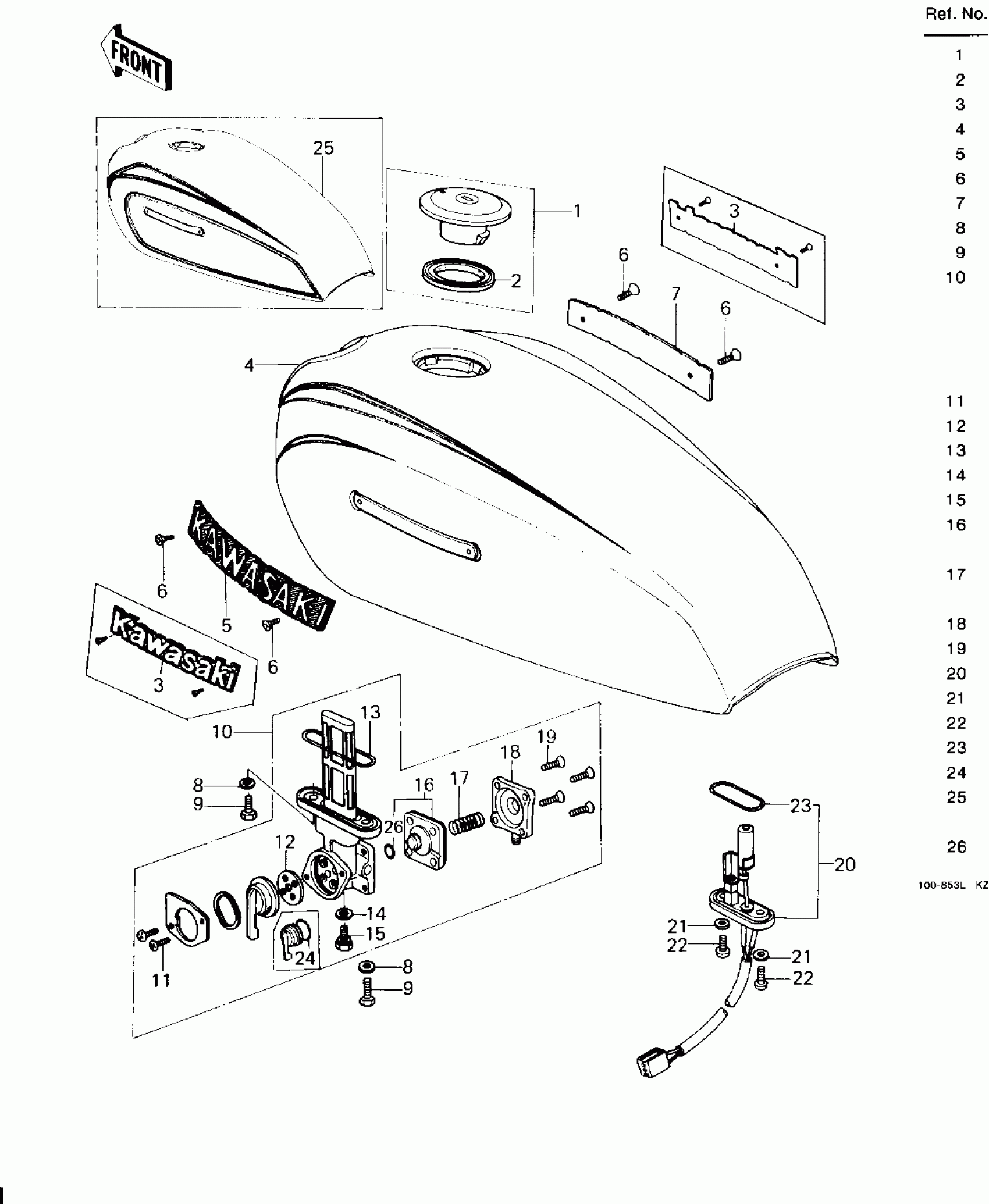

Kawasaki SR FUEL TANK Diagram

#

Description
Price

1

CAP ASSY,TANK

51048-1001

Unavailable

2

GASKET,TANKCAP

11009-1053

Unavailable

3

EMBLEM,FUEL TANK

56014-1038

Unavailable

4

TANK-FUEL,C.P.RED

51001-1006-A5

Unavailable

5

EMBLEM,FUEL TANK,L.H.

56014-1009

Unavailable

6

SCREW-CSK-CROS

221C0306

$0.67

7

EMBLEM,FUEL TANK,R.H.

56014-1010

Unavailable

8

WASHER-PLAIN

92022-183

$2.99

9

BOLT,6X20

92001-1091

$2.99

10

TAP ASSY,FUEL

51023-1023

Unavailable

10

TAP ASSY,FUEL

51023-1023

Unavailable

10

TAP ASSY,FUEL

51023-1023

Unavailable

11

SCREW-PAN-CROS,3X8

220B0308

$0.54

12

GASKET,TAP VALVE

11009-1194

$7.57

13

RING,TAP FLANGED

51039-010

$5.77

14

GASKET,DRAIN BOLT

11009-1045

Unavailable

15

BOLT,DRAIN

92001-1089

Unavailable

16

DIAPHRAGM ASSY,TAP

43028-1004

Unavailable

16

DIAPHRAGM,TAP

43028-1015

$17.72

17

SPRING,TAP

92081-1055

Unavailable

17

SPRING,TAP DIAPHRAGM

92081-1171

$3.32

18

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

19

SCREW CNTSNK HD 4X12

221B0412A

Unavailable

20

SWITCH,FUEL LEVEL

27010-1096

Unavailable

21

WASHER,5.2X10X1.5

92022-1023

$2.99

22

SCREW-PAN-CROS

220B0514

Unavailable

23

RING,FUEL LEVEL SWITCH

43058-1004

$6.13

24

RING-O,TAP LEVER

92055-1027

$3.98

25

TANK-FUEL,M.BLUE

51001-1006-8E

$808.48

25

TANK-FUEL,C.P.RED

51001-5029-A5

$649.37

26

O RING,4MM

670B1504

$3.14
